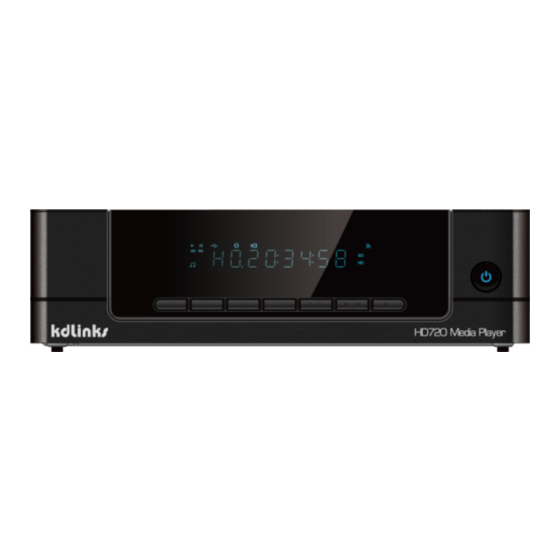

kdlinks HD720 User Manual
  1. Manuals
  2. Brands
  3. kdlinks Manuals
  4. Media Player
  5. HD720
  6. User manual

kdlinks HD720 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Table of Contents

1 User Information  . .........................................................................................................................  2
2 Product Overview  . .......................................................................................................................  4
2.1 Package list ..........................................................................................................................  4
2.2 Product Appearance  . ...........................................................................................................  4
2.3 Remote Control ...................................................................................................................  5
2.4 First Time Usage  . .................................................................................................................  7
3
Main Functions .......................................................................................................................  9
3.1 Setup ...................................................................................................................................  9
3.2 Browsing Files and Media Playback ..................................................................................  1 4
3.3 Favorites Manager  . ............................................................................................................  1 7
3.4 3D Movie Playback ............................................................................................................  1 7
3.5 Internet Media ..................................................................................................................  1 8
3.6 Web Browser of Casablanca  . .............................................................................................  1 8
3.7 Movie Jukebox  . ..................................................................................................................  1 9
3.8 DLNA DMR  . ........................................................................................................................  2 1
3.9 A/V Streaming via Network  . ..............................................................................................  2 2
3.10 A/V Streaming via UPnP-server  . ......................................................................................  2 2
3.12 File Copy/Delete/Move/Rename ....................................................................................  2 3
3.13 NAS function ...................................................................................................................  2 4
3.14 Transmission  . ...................................................................................................................  2 5
3.15 FTP Server .......................................................................................................................  2 5
3.16 Firmware upgrade  . ..........................................................................................................  2 5
4
Specifications ........................................................................................................................  2 6
Copyrights and Trademarks ...............................................................................................  2 7
5
Warranty ................................................................................................................................  2 7
6
7
GPL Statement .....................................................................................................................  2 7
