Summary of Contents for JMD Handy Baby II

  • Page 2: Table Of Contents

    Electric quantity display ......................4 2.1 Starting up ..........................4 Picture - Main interface ......................4 2.2 Application menu ........................5 2.3 Install JMD APP software ....................6 2.4 Activation ..........................6 3.Major function ............................ 7 3.1 RD&CP ............................7 3.2 Chip-fun ...........................
  • Page 3 3.6 Assistant ..........................15 (1)Audi / VW 4th ......................... 15 (2) Audi 5th /Audi ID8E ....................15 （3）Assistant information ..................... 16 3.7 96 bits 48 ..........................16 Appendix： .............................. 19 1. JMD remote control list ......................19 Partial vehicle model example ....................20...

  • Page 4: Preface

    Preface 1.This specification is only used to guide users to use Handy-baby II. 2.JMD has all rights of this specification. 3. this product is only authorized to use the automobile locksmith legally, and the consequences are borne by the users themselves.

  • Page 5: Handy-Baby Kit

    JMD Automotive Technology Co., Ltd. Handy-baby Kit Standard accessories:  (1)Handy-baby Ⅱ*1 Surper-chip*3 (3)JMD remote*2 (4)Cable*3:  USB line (Data)  Smart-Key Unlock line  Remote control line Matching accessories  (1)High power*1 (2)JMD OBD*1 Second...

  • Page 6: Product Overview

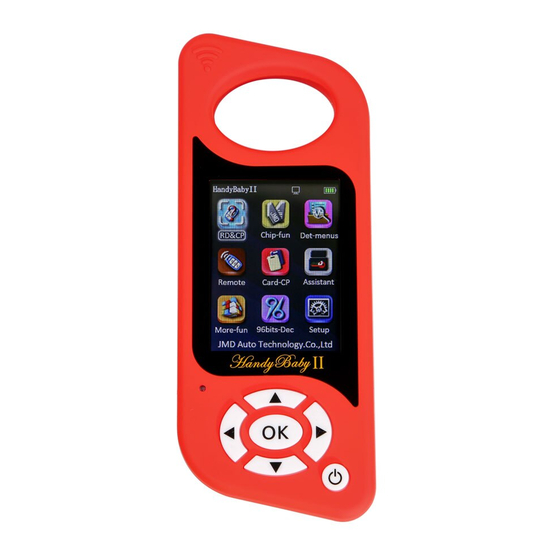

    JMD Automotive Technology Co., Ltd. 1.Product overview Handy-baby II is an optimized, enhanced design product based on Handy-baby. Device description Number Name Acquisition antenna Display screen Power light USB port Directiion key Reading coil Download port Deterministic key Power key、Return key...

  • Page 7: Getting Started

    JMD Automotive Technology Co., Ltd. 2.Getting Started Before using Handy-baby II, make sure the device is fully powered or connected to 5 V DC power. Electric quantity display 2.1 Starting up Press the power button to hold for 2 seconds, turn on the main interface.

  • Page 8: Application Menu

    Copy chip Chip Generate chip/Chip simulate/Chip transfer function Detection Frequency test/Data test/Signal detect menu Automobil Remote renew/FIX CODE clone/Fixed code/JMD remote e remote renew(JMD remote by JMD App) control Access Copy ID/IC card card copy Handy-bab Copy Audi/VW 4 /Audi 5...

  • Page 9: Install Jmd App Software

    JMD Automotive Technology Co., Ltd. 2.3 Install JMD APP software Handy-baby II boot into [Setup] menu, select [APP QR code], WeChat scan QR code download. 2.4 Activation The first use of Handy-baby II requires activation. Handy-baby II opens the Bluetooth switch from the [Setup], connects the phone APP to Handy-baby II, and then selects the [Activation] menu to activate the device.

  • Page 10: Major Function

    JMD Automotive Technology Co., Ltd. 3.Major function 3.1 RD&CP Put the key vertically into the coil and press [OK] to identify. Some smart cards need to be placed horizontally on the coil. The screen displays the chip information. (1) After identifying the key, the screen display [OK to copy], take out the original car key, put the corresponding prompt copy chip, press [OK] key copy.
  • Page 11 After identifying the key, the screen displays [OK to decode], press [OK] key to decode, select acquisition mode. (1) Usually the folding key is selected [Handy-baby 1] (2) Smart card with card slot or coil position deep selection [JMD chip]  The acquisition antenna is close to the key coil...

  • Page 12: Chip-Fun

    JMD Automotive Technology Co., Ltd. 3.2 Chip-fun (1) Chip generation Selection [Chip-fun] [Generate]， Select Chip type， Put in the required chip， Press the [OK] key to generate. (2) Chip simulation Selection [Chip-fun][Simulate]， Select Chip type， self-defined data or Direct simulation of default data，...

  • Page 13: Chip Transfer

    JMD Automotive Technology Co., Ltd. (3) Chip transfer Select [chip function][Chip-Transfer] Select the type that needs to be transferred, and confirm by [OK] key. According to the prompt, the chip to be transferred is put in recognition. Then press the [OK] button to determine the simulation. At this time, the Palm Treasure II analog chip is 63 or 83 chips corresponding to the ID of the chip to be transferred, which can be matched on board.

  • Page 14: Det-Menus

    JMD Automotive Technology Co., Ltd. 3.3 Det-menus (1)Frequency test Select [Det-manu]][Frequency test]， Put the remote control on the coil， The remote control frequency and modulation mode can be detected by pressing the remote control key. (2)Data test 1．Select[Det-manu] [Data test] ，...

  • Page 15: Signal Detect

    JMD Automotive Technology Co., Ltd. (3)Signal Detect Select[Det-manu] [Signal Detect] Attach the acquisition antenna to the key coil， Insert the key and screw it into the ON file (if it's a smart card, remove the battery, and then grab the antenna and the original car card to the sensor area and press the start button).

  • Page 16: Remote

    JMD Automotive Technology Co., Ltd. 3.4 Remote (1) Remote renew Selection [Remote][Remote renew]， Select the key type that needs to be unlocked through the arrow key， And then connect it.Remote control of wire to remote download port，Press[OK] to write， Refer to[HB key unlock tutorial] for details.

  • Page 17: Card-Cp

    JMD Automotive Technology Co., Ltd. 3.5 Card-CP Select [Card-CP], select the type of Access Card, place the Access Card according to the prompt, and click the [OK] key to identify.  [OK key copy]: Use the corresponding card directly in the reading area, press the [OK] key to copy.

  • Page 18: Assistant

    Check the original car chip into the reading coil，Press [OK] to read. Put the copy chip in the reading coil，Press [OK] to copy. (2) Audi 5 /Audi ID8E Audi 5 Generation / 8E Copy steps are the same. Use JMD special Audi smart card when copying. Fifteenth...

  • Page 19: 3）Assistant Information

    Lighting the instrument with the original car key The acquisition antenna is close to the key coil Three groups of data collection Upload data to JMD client or APP Wait for a successful password calculation，Handy-baby select [96 bits-Dec], enter [CLONE] to copy...
  • Page 20 JMD Automotive Technology Co., Ltd. 4．System setup （1）System settings include：  Bluetooth  Voice  Volume  Brightness  Version  Functional list  APP QR code （2）Users should set up according to their preferences and uses. Seventeenth...
  • Page 21 JMD Automotive Technology Co., Ltd. 5. Version update You can upgrade on the computer side or on the phone side.  【Computer upgrade】： Handy-baby II connection computer， Open client software，s Elect【FIRMWAER UPGRADE】【HB UPGRADE】，click【updating】， Then wait for the upgrade to complete.

  • Page 22: Appendix

    JMD Automotive Technology Co., Ltd. Appendix： 1. JMD remote control list Nineteenth...

  • Page 23: Partial Vehicle Model Example

    JMD Automotive Technology Co., Ltd. Partial vehicle model example （ All models are available at JMD app） Twentieth...
