Summary of Contents for Cusam CSW02
- Page 1 Wi-Fi Video Doorbell User Manual CSW01 CSW02...
- Page 2 Specification: Processor HUAWEI Hisilicon Image Sensor 2.0MP 1/4" CMOS Video Output Dual-Stream HD: 1280*720@25fps / Fluent: 704*576@25fps Viewing Angle 166° Audio Built-in microphone and speaker, two-way audio with noise cancellation Main Function 720p HD Video, Live View(Real-time Monitor), Night Vision(IR LED/IR-CUT/Distance 0~8m), Motion Detection, Video Recording, Snapshot Unlock(electric lock not included) Connectivity...

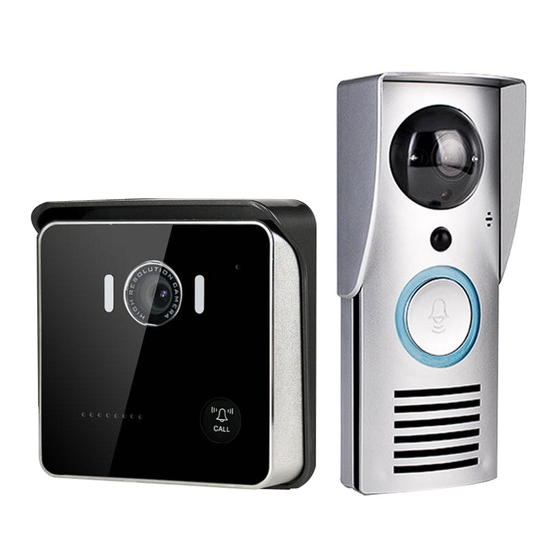

- Page 3 “device”) is in good condition; confirm whether the package contents are complete as below. Video Doorbell x 1; Installation Screws x 1 Pack; User Manual x 1; Power Adapter x 1; USB Power Cable x 1; Indoor Chime(Optional); Micro SD Card(Optional) ※ Appearance Introduction Model: CSW01 Model: CSW02...
- Page 4 ※ Indicator Light Introduction Red light always on Starting up/Network failure(Offline) Red light flashes quickly Ready for Wi-Fi Setup Green light flashes slowly Be connecting to Wi-Fi ※ Installation diagram:...
- Page 5 ※ Wiring Diagram：Connect to electric lock(not included): CSW01 Wiring Diagram CSW02 Wiring Diagram...
- Page 6 1. Download & Install App Method One: Scan the QR Code below to download and install Method Two: Search and download “wifidoorbell Cusam” in App Store or Google Play. Note: Please agree all the permissions(popup confirmation dialog box by App) in order to make sure App is able to receive notifications.
- Page 7 The same user account can be logged in on different cellphones. Each family only needs to register one account After signing up, you can bind your new user account with WeChat if you have installed WeChat App 3. Wi-Fi Setup(connect the device to Wi-Fi) ①...
- Page 8 PS: If you are using iPhone, please note: After adding device successfully, please wait 1~2 minutes before ringing the doorbell. Because it need some time to register at Apple Server for push service, if you press “CALL” button during this period, your iPhone will not receive the push message from device. Don’t worry, this situation only happens once at the first use.
- Page 9 5 seconds and then loosen(CSW02 please long press CALL Button, or insert a needle into Reset Hole to press down for more than 5 seconds and then loosen), a few seconds later, the indicator light will turn to red. About 1 minute later, when the indicator light flashes red and the doorbell makes a sound of “Wait to be configured”, open App to set up the doorbell to connect to...
- Page 10 loosen; 2) When the indicator light of indoor chime turns off, short press the CALL button of the doorbell. If both of them ring, then the match succeeds. Specifications of Indoor Chime/Bell Power Supply AC 80-260V Effective Distance 0-150m(tested in an open field) Volume Adjustable(low/medium/loud),Max.110dB Music...
- Page 11 2.【Power adapter or cable is loosened or bad contact】- Please make the connection tight 3.【The device is too far away from the router】- Please move it nearer to router 4.【Device fault】- Please reset the device and then connect it to Wi-Fi again Why my cellphone doesn’t receive the push notifications? How to fix it? 1.【App log out】- Please log in again 2.【Device is offline】- Please see the previous Q&A to solve it...
- Page 12 the doorbell to another mounting position. How to change in-app language? Please change the language of cellphone, in-app language also changes How does the device store video? The video doorbell supports maximum 32GB Micro SD Card, which will automatically overwrite the previous recording when the capacity is full. How to install Micro SD Card? Unscrew the screws in the back of rear cover, take off the cover, then you will see the card slot.
- Page 13 down if unused for a period of time. Please enable App “Auto Run” and “Keep Running in Background”, and add the App into “White List” in Settings of your Android phone to reduce the frequency of App log out. Not all of Android phones have three setting options above, some phones may only have one or two options, or other similar function with different names.
