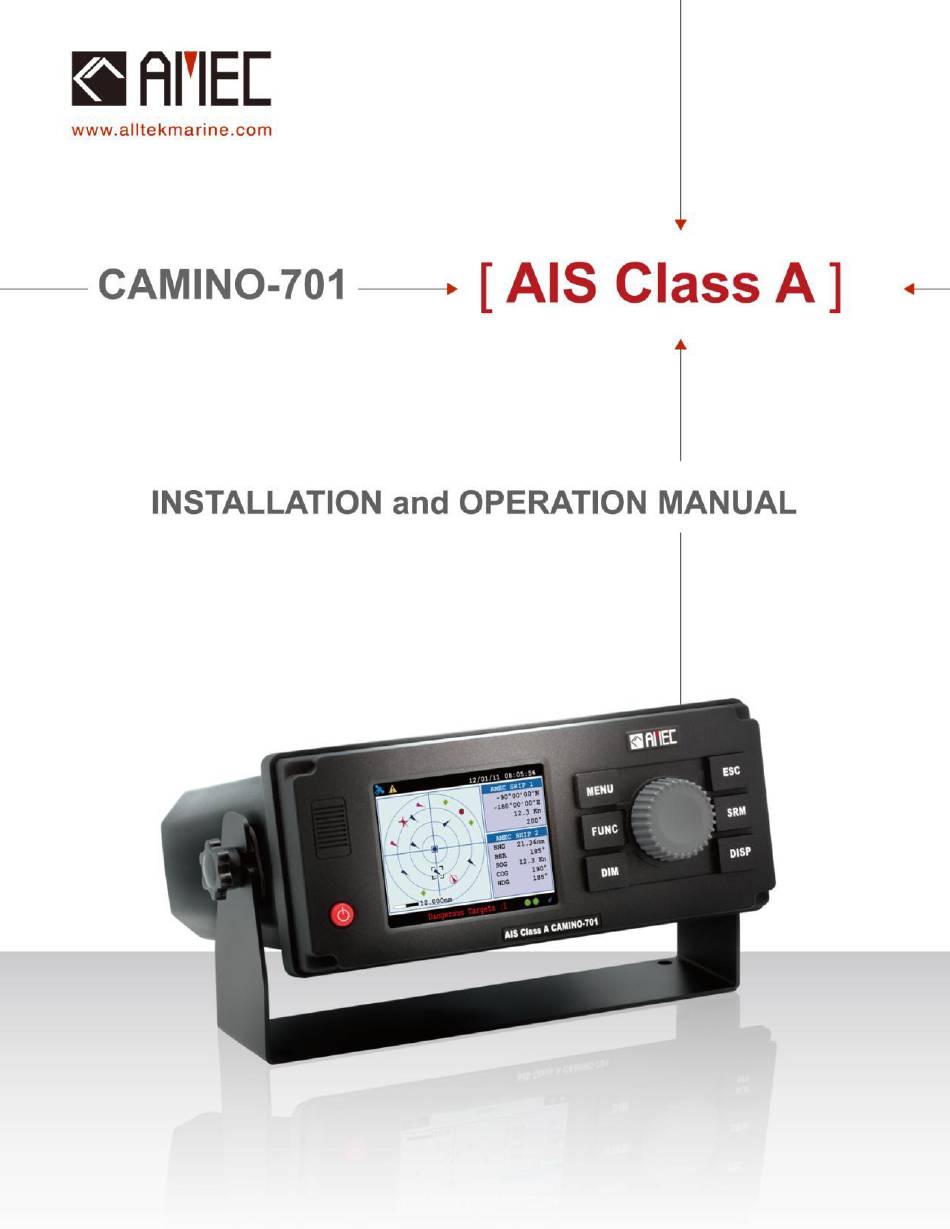

AMEC CAMINO-701 Installation And Operation Manual

Ais class a
Hide thumbs Also See for CAMINO-701:
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAMINO-701 and is the answer not in the manual?

Questions and answers

Related Manuals for AMEC CAMINO-701

Summary of Contents for AMEC CAMINO-701

  • Page 2 Disclaimer AMEC is devoted to publish and maintain this product manual. As we continue to improve our AIS products to satisfy all customers’ needs, information in this document is subject to change without notice.
  • Page 3 Directive. approved in accordance with the European Marine Equipment Declaration of Conformity Hereby, Alltek Marine Electronics Corp. (AMEC) declares that this CAMINO-701 is in compliance with the essential requirements and other relevant provisions of Directive 96/98/EC. Disposal Instruction Do not dispose of this device with unsorted waste.

  • Page 4: Table Of Contents

    EQUIREMENTS VHF A ......................5 NTENNA NSTALLATION GPS A ....................... 6 NTENNA NSTALLATION CAMINO-701 ......................... 7 OUNTING 3.6.1 Mounting Transponder ........................7 3.6.2 Mounting Junction Box ........................9 3.6.3 Mounting Pilot Plug .......................... 10 ) ................12 XTERNAL ONNECTORS RANSPONDER ) ....................
  • Page 5 ........................45 AVIGATION TATUS 4.6.1 Own Ship ............................45 4.6.2 AIS Targets ............................46 4.6.3 Region List ............................49 4.6.4 Alarm List ............................51 4.6.5 Alarm History ............................ 52 4.6.6 Sensor Status............................. 52 4.6.7 Dangerous List ........................... 53 4.6.8 MOB List ............................55 4.6.9 Friend Ships ............................
  • Page 6 ........................78 ONNECTION NTERFACE ..........................79 NVIRONMENTAL 5.10 ............................79 HYSICAL 5.11 ............................ 79 ILOT MECHANICAL DIMENSIONS ................... 80 CAMINO-701 T ................... 80 RANSPONDER ..........................82 UNCTION ..........................82 XTENSION ABLE ) ....................82 OUNTING EMPLATE NOT TO SCALE VHF A ..........................

  • Page 7: What Is Ais

    1 WHAT IS AIS? The Automatic Identification System (AIS) is a Very High Frequency (VHF) radio broadcasting system that transfers packets of data over the VHF data link (VDL) and enables AIS equipped vessels and shore-based stations to exchange identification information and navigational data. Ships with AIS transponders continually transmit their ID, position, course, speed and other data to all nearby ships and shore stations.

  • Page 8: System Overview

    2 SYSTEM OVERVIEW 2.1 Product Description The AMEC CAMINO-701 is a new generation AIS Class A transponder fully compliance with IMO, IEC, and ITU international standards. It provides a compact single box solution, easy to install and operate. The unit is designed with advanced technology which sets a new standard for quality, performance, and value.

  • Page 9: Interconnection Diagram

    2.3 Interconnection Diagram Figure 1 Interconnection Diagram...

  • Page 10: Installation

    The standard supply in the package includes the following items. Please contact your local representative if any item is missing. Description Quantity CAMINO-701 Class A AIS Transponder Junction box U-shaped mounting bracket Knobs for u-shaped mounting brackets 37-pin extension cable 1.8 m...

  • Page 11: Rf Cable Requirements

    3.3 RF Cable Requirements The following RF cables are recommended to install the CAMINO-701.  VHF Antenna Cable Type: 5D-FB or equivalent Connector: SO-239 (Male)  GPS Antenna Cable Type: RG58A/U or equivalent Connector: TNC (Male) 3.4 VHF Antenna Installation The quality and positioning of the antenna are the most important factors dictating AIS performance.

  • Page 12: Gps Antenna Installation

    3.5 GPS Antenna Installation The GPS antenna must be installed where it has a clear view of the sky, so that it may access the horizon freely with 360° degrees, with a vertical observation of 5 to 90 degrees above the horizon as illustrated below. GPS ANTENNA LOCATION Enter the GPS antenna location data in “SHIP SETTING”...

  • Page 13: Mounting Camino-701

    3.6 Mounting CAMINO-701 Use the following guidelines to check the installation location for your AIS transponder:  The AIS transponder should be mounted in a location that is accessible and readable to user at all time.  The transponder should be installed in a protected environment away from direct rain and water contact.
  • Page 14 Panel Mounting (1) 1. Line up the mounting template on control panel to sketch an outline for the cutting area. 2. Using a jigsaw carefully cut along the sketched cutting area. 3. If necessary, clean up edge with glass paper or file. 4.

  • Page 15: Mounting Junction Box

    3.6.2 Mounting Junction Box Mounting Junction Box (1) Figure 6 Mounting Junction Box (1) Mounting Junction Box (2) Figure 7 Mounting Junction Box (2)

  • Page 16: Mounting Pilot Plug

    Mounting Pilot Plug The Pilot Plug device provides connecting interface to pilots and other mariners to connect their own PC or other portable device to Camino701 on board. Camino-701 Pilot Plug Tx A Pin1 (Red) Tx B Pin 4 (White)
  • Page 17 Connecting to Camino-701 Junction Box Use the following guidelines to connect the Pilot Plug to the Camino701 Junction box. Please refer to section 3.8 External Connectors (Junction Box). To Transponder Main Unit Pilot plug Cable Glands NMEA 2000 PILOT_IN A connects to Rx A (Black)

  • Page 18: External Connectors (Transponder Main Unit)

    3.7 External Connectors (Transponder Main Unit) Frame Ground Figure 8 External Connectors (Main Unit) NAME DESCRIPTION TYPE OF CONNECTOR VHF antenna connector SO-239 (female) GPS antenna connector TNC (female) Power Power input connector Round type, 3 pins USB connection to PC Mini type USB Extension connection to Junction Box D-Sub 37 pins...

  • Page 19: External Connectors (Junction Box )

    3.8 External Connectors (Junction Box) To Transponder Main Unit DISP DGPS Sensors 1~3 sensor Termination switches Jumper for NMEA2000 shield and ground Pilot plug Alarm Cable Glands NMEA 2000 Figure 9 External Connectors (Junction Box) CONNECTOR LABEL NAME DESCRIPTION FUNCTION USAGE SEN1_IN GND Sensor 1 ground Connect to data sources such as heading,...
  • Page 20 PILOT_IN GND Input Ground Pilot Plug port PILOT_IN A Input A PILOT_IN B Input B Pilot Plug PILOT_OUT GND Output Ground PILOT_OUT A Output A PILOT_OUT B Output B ALARM NO Alarm normally open Alarm ALARM NC Alarm normally closed ALARM COM Alarm common DGPS_IN GND...
  • Page 21 ITEM USAGE The switches provide line termination configuration. Termination off Termination on Termination Switches The jumper’s purpose is to wire together NMEA2000 cable’s shield and Jumper for NMEA2000 ground. Depending on your scenario, you may choose not to connect them shield and ground together.

  • Page 22: Connecting Extension Cable

    3.9 Connecting Extension Cable Use the 37-pin- extension cable (1.8M) provided in the package connect CAMINO-701 to the junction box. Figure 10 Connecting CAMINO-701 with Junction Box...

  • Page 23: Configuring Camino-701

    3.10 Configuring CAMINO-701 The following items must be completed before initial configuration. 1. Ensure VHF and GPS antennas are well connected to the transponder main unit. 2. Ensure the 37-pin-connector extension cable is well connected from the transponder main unit to the junction box.
  • Page 24 A. Setup call sign, ship name, ship type, external/internal GPS antenna position in OWN SHIP. 2013/01/17 07:18:11 MENU MAIN MENU SHIP SETTING MESSAGES OWN SHIP NAV. STATUS VOYAGE SHIP SETTING CPA/TCPA TRANSCEIVER CHANGE MMSI/IMO SYS CONFIG RETRY TIMES DIAGNOSTICS Dangerous Targets :0 Figure 12 Own Ship B.

  • Page 25: Operation

    4 OPERATION 4.1 Panel Description Figure 14 Panel Description Item Number Name Descriptions Power On/Off (push button over 5 seconds) Power Switch Beeper Sound for when buttons are pushed Display 3.5” LCD color screen MENU Return to main menu / detail menu select FUNC Different function on display mode (Zoom In/Out, etc) Adjust dim degree (refer to 4.2.7)

  • Page 26: Status Bar

    4.1.1 Status Bar The status bar constantly indicates Date (YYYY/MM/DD), Time, GPS status, ALR, and SRM. Status Bar 2013/01/01 07:18:11 AMEC: 15 1°13’02”N 103°48’32”E 12.00Kn 360.0° AMEC: 15 Own Ship Own Ship 12.00Kn 0.0° 12.000NM Targets Received: 3 Figure 15 Status Bar GPS Status：Position fixed...

  • Page 27: Transmission And Reception Bar

    4.1.2 Transmission and Reception Bar The Transmission & Reception bar constantly displays real time status of transmissions and receptions on any display modes. 2013/01/01 07:18:11 AMEC: 15 1°13’02”N 103°48’32”E 12.00Kn 360.0° AMEC: 15 Own Ship Transmission & Own Ship Reception Bar 12.00Kn...

  • Page 28: Display Modes

    4.2 Display Modes For quick access, users can rotate display modes by simply pressing the DISP button. Display Mode Screen Shot Purpose Coastal View Display all targets on basic coastline map Radar View Displays all targets on radar view Shows all received ship data AIS Target List (Refer to section 4.6.2 AIS Targets) Shows all dangerous AIS targets presently...

  • Page 29: Target Symbol Descriptions

    Shows the GPS satellite current usage status GPS Satellite Information (Refer to section 4.2.5 GPS Satellite Information) Show all the Region of own ship Region Setting List (Refer to section 4.6.3 Own Ship Detail) 4.2.1 Target Symbol Descriptions Symbols for each AIS target displayed on the radar view is as described below: Own Ship GPS Reception: Normal / Color: Black and Gray Under normal GPS reception, own ship is located in the center of the radar view.
  • Page 30 Lost Signal Target Color: Black / Red Cross If reception of an AIS target has ceased over 10 minutes, a “X” will be displayed over it. The target will disappear from the Radar View after its reception has ceased for one hour. AtoN (Real) Color: Black / Plus Sign The icon will be displayed if any AIS AtoN (Aids to Navigation) Real is in the range...

  • Page 31: Coastal View

    4.2.2 Coastal View 2013/01/17 07:18:11 4°00’E 5°00’E 53°08’56”N 4°57’00”E Own Ship 12.00Kn Selected 53°30’N information 241.0° Target 53°00’N Target RNG 39.54NM information BRG +320.53° 52°30’N 12 NM Function Targets Received :10 Icon Figure 17 Coastal View Item Function Own Ship information Own-ship information for latitude, longitude, SOG and COG Target information Display the target information such as range and rearing relatively to the...

  • Page 32: Radar View

    4.2.3 Radar View 2013/01/17 07:18:11 Own ship AMEC: 15 information 1°13’02”N 103°48’32”E Current mode 12.00Kn 360.0° Target AMEC: 15 information Own Ship Own Ship 12.00Kn Selected target Function icon 0.0° 12.00NM TX POWER LEVEL :12.5W Figure 18 Radar View Radar View displays own ship and target ships’ statuses, and their correlations.

  • Page 33: Dimmer Setting

    4.2.7 Dimmer Setting Press the button “DIM” to enter the dimmer setting page. 2013/01/17 07:18:11 CUSTOMIZE DIMMER LEVEL [ 100 ] Lo Dangerous Targets :0 Figure 19 Dimmer Setting Button Description Knob (Turn left/right) Adjust screen brightness (decrease/increase) Knob (Press) Save and leave the page Restore screen brightness to default setting (100) Leave the page without saving...

  • Page 34: Entering Text

    4.3 Entering Text The knob on the front control panel is used for entering and editing text. The figures below show the text entering procedures. A. Turn the knob to traverse the menu items up or down. Once selected, press the knob to select the item for text entering.
  • Page 35 Select a character position Turn knob to move Press to start left or right editing Pick character Turn knob to select Press knob to character confirm character selection Confirm and save To save entered text, long press the knob for 2 seconds Figure 20 Entering Text...

  • Page 36: Menu Tree Overview

    4.4 Menu Tree Overview Press MENU button to enter MAIN MENU. There are 6 menu choices and each holds a sub-menu. See table below. MESSAGES INBOX SRM (4.5.1) OUTBOX SRM (4.5.2) BROADCASTING SRM (4.5.3) ADDRESSED SRM (4.5.4) LONG RANGE (4.5.5) OWN SHIP (4.6.1) AIS TARGETS (4.6.2) NAV.

  • Page 37: How To Access And Use Main Menu

    4.4.1 How to access and use MAIN MENU 2013/01/17 07:18:11 MENU MAIN MENU MESSAGES NAV. STATUS SHIP SETTING TRANSCEIVER SYS CONFIG DIAGNOSTICS Dangerous Targets :0 Figure 21 MAIN MENU Rotate knob to select MAIN MENU items and push the knob to select sub-menu items. 2013/01/17 07:18:11 MENU MAIN MENU...

  • Page 38: Menu Item Brief Description

    4.4.2 Menu Item Brief Description MESSAGES INBOX Log of safety related messages (SRM) received OUTBOX Log of safety related messages (SRM) sent BROADCAST SRM Send SRM. ADDRESSED SRM Send specified targeted SRM. LR INBOX Log of received inquiry messages from others. NAVIGATION STATUS (Display a variety of navigation information) OWN SHIP Your vessel information...
  • Page 39 SYSTEM CONFIGURATION CUSTOMIZE Personalization settings RADAR VIEW Radar configuration MAP CALIBRATION Map offset setting SENSOR CONFIGURATION Port configuration FACTORY Default factory setting PASSWORD Password change (default password: 0000) LONG RANGE SETTING Remote inquiry setting LONG RANGE BROADCAST Enable/Disable Long Range Broadcast DESTINATION TABLE SETTTING Table storing destinations DIAGNOSTICS...

  • Page 40: Messages

    4.5 Messages 2013/01/17 07:18:11 MENU MAIN MENU MESSAGE MESSAGES NAV. STATUS INBOX SHIP SETTING OUTBOX TRANSCEIVER BROADCAST SRM SYS CONFIG ADDRESSED SRM DIAGNOSTICS LR INBOX Dangerous Targets :0 Figure 23 Message 4.5.1 Inbox SRM You can read received SRM messages under Inbox. If there is any unread message, the upper left corner will display , the new message icon.
  • Page 41 Highlight your choice and pressing down the knob to read message content. 2013/01/17 22:43:09 Message TEXT MMSI 222222222 READ YES TX TYPE Broadcast DEST. MMSI N/A TIME 2013/01/17 22:41:17 TEXT SART TEST Dangerous Targets :0 Figure 25 Message Text Message deletion Pressing the MENU button will ask whether to delete the highlighted message.

  • Page 42: Outbox Srm

    4.5.2 Outbox SRM You can read sent SRM messages under OUTBOX. Below are key functions under OUTBOX. Traversing List Turn the knob to traverse the message list. 2013/01/17 22:44:22 Message Outbox ----- MESSAGE ----- DATE/TIME -- TX --ACK GROUNDING T 22:44 2.

  • Page 43: Broadcast Srm

    Message deletion Pressing the MENU button will ask whether to delete the highlighted message. Turn knob to choose and press MENU to confirm the decision. 2013/01/17 22:44:22 Message Outbox ----- MESSAGE ----- DATE/TIME -- TX --ACK GROUNDING T 22:44 2. SOS… T 22:43 Delete the item? Dangerous Targets :0...
  • Page 44 Selecting SRM channel SRM channel selection is the first option in the screen. Highlight it and press the knob to enter the option. Turn the knob to change the setting. 2013/01/17 07:18:11 BROADCAST SRM TRANSMIT CHANNEL < ALTERNATE > CUSTOMIZE TEXT Dangerous Targets :0 Figure 31 Select SRM Channel...
  • Page 45 Using Predefined-Sentence You may use PRE-SENTENCE option to select a pre-defined message sentences or a customized text. Press the knob to enter and turn the knob to switch sentence selections, and then press the knob to confirm. To use a customized sentence, turn selection to <Other>, and remember to enter you customized text at the CUSTOMIZE TEXT option.
  • Page 46 When finished, press ESC to return to BROADCAST SRM menu. 2013/01/17 07:18:11 BROADCAST SRM TRANSMIT CHANNEL < CHANNEL A > CUSTOMIZE TEXT Dangerous Targets :0 Figure 35 Finish Customized Text When done with all settings, pressing MENU or ESC to leave and the system will ask whether to send the message.

  • Page 47: Addressed Srm

    4.5.4 Addressed SRM Press the knob button on ADDRESSED SRM will remind to select a target to send. 2013/01/17 07:18:11 MENU MAIN MENU MESSAGE MESSAGES NAV. STATUS INBOX Set SRM Alarm SHIP SETTING OUTBOX Select Target TRANSCEIVER BROADCAST SRM SYS CONFIG ADDRESSED SRM DIAGNOSTICS LR INBOX...
  • Page 48 Select the target vessel by pressing the knob to customize SRM sending. Maximum length for the customized message is 85 characters. 2013/01/17 07:18:11 ADDRESSED SRM DESTN. MMSI [ 222222222 ] TRANSMIT CHANNEL <ALTERNATE> CUSTOMIZE TEXT Dangerous Targets :0 Figure 39 Customize SRM When changing Destination MMSI, choose a text location, and then press the knob to enter text input mode.

  • Page 49: Long Range Srm

    4.5.5 Long Range SRM LONG RANGE SRM holds all received Long Range Interrogation messages. Turn the knob to traverse the message list. 2013/01/17 23:26:20 LR Message Inbox ----- MMSI ------- DATE/TIME ------ ACK--- 619931371 T 23:25 Dangerous Targets :0 Figure 41 Long Range SRM Reading message Press the knob to read the interrogation message content.
  • Page 50 Message deletion Under the message list, pressing MENU will ask whether to delete the message. Turn knob to choose and press knob to confirm your choice. 2013/01/17 23:27:10 LR Message Inbox ----- MMSI ------- DATE/TIME ------ ACK--- 619931371 T 23:25 Delete the item? Dangerous Targets :0 Figure 43...

  • Page 51: Navigation Status

    4.6 Navigation Status 2013/01/17 07:18:11 MENU MAIN MENU NAV. STATUS MESSAGES OWN SHIP NAV. STATUS AIS TARGETS SHIP SETTING REGION LIST TRANSCEIVER ALARM LIST SYS CONFIG ALARM HISTORY DIAGNOSTICS SENSOR STATUS Dangerous Targets :0 Figure 44 Navigation Status 4.6.1 Own Ship This option displays the full information on your ship, including both dynamic and static data.

  • Page 52: Ais Targets

     Dynamic data 2013/01/17 22:43:39 OWN SHIP <2/2> 000/023 NAME AMEC [CLASS A] CALL 0001 DRAUGHT 1.0m MMSI 211111111 111111111 CARGO N/A or Harmless TYPE Vessel-Pleasure craft DEST TPE_259 AVAILABLE 02/25 01:02 BEAM LENGTH 81m Pos. Quality Position with RAIM <=10 m...
  • Page 53 Press the knob, to read the selected vessel dynamic information. 2013/01/17 22:43:39 SHIP DETAIL <1/2> 006/023 NAME TEST12 CALL TEST12 EPFS Undefined MMSI 211000601 [CLASS A] P.A. NAV. Under way using engine 121°54’59”E 10.61NM 80° 025°12’37”N 26.00Kn pass 350.8° TCPA pass 351.8°...
  • Page 54 Adding Friend Ship In the list, pressing MENU button will ask whether to add this vessel to your FRIEND SHIP list. 2013/01/17 22:44:22 AIS TARGET LIST [013] - NAME/MMSI ---ET-- BRG( ) -- RNG(NM) ° 1. 211111161 39.54 2. 211111561 31.96 3.

  • Page 55: Region List

    4.6.3 Region List This option list all saved region information. 2013/01/17 23:26:20 REGION SETTING LIST --- Region No---- Source ------- Date/Hour -- Region 1 12/01/02 11 Region 2 12/01/02 11 Region 3 11/11/01 00 Region 4 11/11/01 00 Region 5 11/11/01 00 Region 6 11/11/01...
  • Page 56 Modify region content Press MENU at the region information page, enables you to modify the region information. 2013/01/17 22:43:39 2013/01/17 22:43:39 REGION [1] SETTING REGION LIST [1] LAT(NE) 020°24’00”N LAT(NE) [20]°[24]’[00]”<N> LON(NE) 123°58’00”E LON(NE) [123]°[58]’[00]”<E> >TZ< LAT(SW) [19]°[35]’[00]”<N> LAT(SW) 019°35’00”N Edit Region? LON(SW) [123]°[04]’[00]”<E>...

  • Page 57: Alarm List

    4.6.4 Alarm List This command lists all current AIS ALR statuses. 2013/01/17 22:44:22 ALARM LIST ----- ID -- Text ------------------------------ ACK 1. 07. UTC sync invalid 2. 32. Heading lost/invalid 3. 35. No valid ROT information Targets Received: 10 Figure 56 Alarm List By pressing MENU, enables you to send ACK message to AIS.

  • Page 58: Alarm History

    4.6.5 Alarm History This command lists all recorded alarm and its time of occurrence. 2013/01/17 07:18:11 2013/01/17 22:44:22 MENU ALARM HISTORY MAIN MENU ---- ID -- Text ----------------------DATE-- TIME- NAV. STATUS 1. 35. No valid ROT 12/24 09:27 MESSAGES 2. 32. Heading lost 12/24 09:27 OWN SHIP NAV.

  • Page 59: Dangerous List

    The channel status below records TXT message received times. AIS: Channel management parameters changed. 2013/01/17 22:43:39 SENSOR STATUS POSITION STATUS EXT. GNSS POSITION QUALITY Position with RAIM <= 10 m UTC STATUS LOST COG STATUS EXT. COG SOG STATUS EXT. SOG HEADING STATUS VALID ROT STATUS...
  • Page 60 Turn the knob to select a vessel and press to read its information. 2013/01/17 22:43:39 001/001 SHIP DETAIL <1/2> NAME TEST01 CALL TEST EPFS MMSI 210000000 [CLASS A] NAV. AIS-SART 121°45’00”E 5.43NM 270° 025°09’25”N 3.00Kn 3.84 NM 000.0° TCPA 54.31 min 0.0°...

  • Page 61: Mob List

    4.6.8 MOB List This command enables adding, removing, or modifying of MOB list entries. Button Action MENU Add, Remove entry Knob Button Modify a selected entry 2013/01/17 17:04:38 MOB LIST [000]-- ID ------ NAME -------------------------- TX POWER LEVEL: 12.5W Figure 63 MOB List (1) After pressing the Menu button, a prompt appears.
  • Page 62 2013/01/17 17:04:40 MOB LIST MMSI [970000001] NAME [TEST TX POWER LEVEL: 12.5W Figure 65 MOB List (3) When finished entering MMSI and the assigned name, press MENU or ESC to save or leave without saving. 2013/01/17 17:04:41 MOB LIST Save Data? MMSI [970000001] NAME...

  • Page 63: Friend Ships

    4.6.9 Friend Ships This command displays the list of all registered friend ships. 2013/01/17 22:44:22 BUDDY LIST --- MMSI -------- SHIP NAME ------------------- 211111211 TEST02 211111311 TEST04 211111411 TEST06 Targets Received: 10 Figure 68 Buddy List Turn the knob to traverse the message list. Press the MENU button for deletion on the highlighted ship.

  • Page 64: Ship Setting

    4.7 Ship Setting This sub-menu lists all the ship information settings of your ship. There are a total of 4 setting commands. 2013/01/17 07:18:11 MENU MAIN MENU SHIP SETTING MESSAGES OWN SHIP NAV. STATUS VOYAGE SHIP SETTING CPA/TCPA TRANSCEIVER CHANGE MMSI/IMO SYS CONFIG RETRY TIMES DIAGNOSTICS...

  • Page 65: Voyage

    2013/01/17 22:43:39 2013/01/17 22:43:39 SHIP SETTING SHIP SETTING CALL SIGN [0001 ] CALL SIGN [0001 ] SHIP NAME [AMEC SHIP NAME [AMEC SHIP TYPE <Pilot vessel> SHIP TYPE <Pilot vessel> Save data? INTERNAL ANT. POS. (m) INTERNAL ANT. POS. (m)

  • Page 66: Cpa/Tcpa

    4.7.3 CPA/TCPA This command holds the settings to configure dangerous ship criteria (TCPA and CPA) and the alarm. 2013/01/17 22:43:39 2013/01/17 22:43:39 CPA/TCPA CPA/TCPA CPA (NM) [95] CPA (NM) [95] TCPA (min) [90] TCPA (min) [90] Save data? ALARM <OFF> ALARM <OFF>...
  • Page 67 2013/01/17 22:43:39 Change MMSI/IMO MMSI [000000000] [000000000] Targets Received: 10 Figure 76 Change MMSI/IMO (2) Turn the knob to change the position and press knob to enter text input mode. Turn the knob to change value and press knob again to confirm. Repeat these procedures till all values are entered. Double check to ensure value is entered correctly and press MENU or ESC to save.

  • Page 68: Retry Times

    2013/01/17 22:43:39 2013/01/17 07:18:11 MMSI SETTING IMO SETTING MMSI RANGE: 20000000~799999999 or [000000000] 982000000~987000000 Save data? Save data? MMSI [000000000] Targets Received: 10 Targets Received: 10 Figure 78 Save Data 4.7.5 Retry Times In order to resend messages when the transmitted Message 6 or Message 12 receives no response of Message 7 or Message 13, set the Retry Times to set the resending times.

  • Page 69: Transceiver

    4.8 Transceiver TRANSCEIVER setting sub-menu holds the settings of the transceiver statuses and the supplied voltage for the GPS antenna. 2013/01/17 07:18:11 2013/01/17 22:43:39 MENU TRANSCEIVER SETTING MAIN MENU MESSAGES AIS Tx <ON> PASSWORD NAV. STATUS SHIP SETTING DSC Rx <ON>...

  • Page 70: Customize

    4.9.1 Customize Customize provides personalization settings. 2013/01/17 22:43:39 CUSTOMIZE DIMMER LEVEL [100] Lo………………………Hi COLOR MODE [Day] KEY TIME-OUT [1] (1~5 min) LANGUAGE <English> ALARM <OFF> KEY BEEP <None> TIME ZONE <GMT> SART TEST MODE <OFF> Targets Received: 10 Figure 82 Customize Pressing MENU or ESC button will ask whether to save data.

  • Page 71: Map Calibration

    4.9.3 Map Calibration This setting offers user functions to calibrate map data. Turn knob to select either latitude or longitude to offset. Press knob to enter input mode. Turn knob to select an offset value. Once finished press ESC to return to the previous level to continue the setting.

  • Page 72: Factory

    4.9.5 Factory FACTORY option enables user restore default factory setting. It restores system preference settings and CPA/TCPA values. Choose a password text location, and then press the knob to enter text input mode. Turn the knob to select a character, and then press the knob to confirm and to return. Repeat these steps till all desired characters are entered.

  • Page 73: Password

    4.9.6 Password This option enables changing user password. (Default password: “0000”) Set the information with the order of “OLD PASSWORD”, “NEW PASSWORD”, “CONFIRM NEW PASSWORD”. Turn knob to traverse the items and press knob to enter input mode. Under input mode, turn knob to select text position and press knob to confirm.

  • Page 74: Long Range Setting

    4.9.7 Long Range Setting This option provides user choices to auto-response remote interrogation and settings of the response information. You can either set MODE to either AUTO or MANUAL. The setting for the rest of information is either SUPPLY or REJECT. 2013/01/17 22:43:39 LONG RANGE INTERROGATION SETTING MODE...

  • Page 75: Destination Table Setting

    4.9.9 Destination Table Setting Save up to 10 destinations. Use rotary knob to traverse text and to modify. Press Menu to save changes. 2013/01/17 22:43:39 DESTINATION TABLE SETTING Column 1 Column 2 Column 3 Column 4 Column 5 Column 6 Column 7 Column 8 Column 9...

  • Page 76: Diagnostics

    4.10 Diagnostics DIAGNOSTICS sub-menu provides users to check system statuses. There are a total of 8 check options. 2013/01/17 07:18:11 2013/01/17 07:18:11 MENU MENU MAIN MENU MAIN MENU DIAGNOSTICS DIAGNOSTICS MESSAGES MESSAGES SYSTEM ON/OFF NAV. STATUS NAV. STATUS MEMORY TEST KEYBOARD TEST SHIP SETTING SHIP SETTING...

  • Page 77: Memory Test

    4.10.2 Memory Test This option provides memory testing on the unit. 2013/01/17 22:43:39 MEMORY TEST System Memory [Pass] Chart Memory [Pass] Data Memory Targets Received: 10 Figure 95 Memory Test When finished, press ESC to exit. 4.10.3 Sensor Port This option provides an overview on all port baud rates and information. 2013/01/17 22:43:39 SENSOR PORT Baud Rate...

  • Page 78: Tft-Panel

    4.10.4 TFT-Panel This option provides color information on the monitor. When finished, press ESC to exit. Black Orchid Pink Green Plum Blue Quartz Magenta Salmon Yellow Silver Aquamarine Thistle Bronze Turquoise Copper Violet Feldspar Wheat Gold Aliceblue Grey Antiquewhite Khaki Azure Maroon Beige...

  • Page 79: Gps Status

    4.10.6 GPS Status This option provides GPS satellite status information. 2013/01/17 22:43:39 Strength of GPS GPS Satellite Satellite Signal location Signal Own Ship Information 53°08’56”N 4°57’00”E Signal 12.00Kn 241.0° Dangerous Targets: 2 Figure 99 GPS Status Green indicates satellite being used for GPS fix. Red indicates satellite not being used.

  • Page 80: Communication Test

    4.10.8 Communication Test Communication can be tested. The procedure starts by having the Class A unit transmits Message 10 to an addressed Class A MMSI. The target MMSI, once received Message 10, will return Message 11. The test is complete when the Class A unit successfully receives the Message 11. 2013/01/17 22:44:22 2013/01/17 07:18:11 COMMUNICATION TEST...
  • Page 81 As a valid Class A is presence, the test procedure proceeds to the screen below. 2013/01/17 22:44:22 COMMUNICATION TEST PRESS KNOB SELECT DESTINATION MMSI OF MESSAGE 10 DESTINATION MMSI <233333533> Targets Received: 10 Figure 103 Valid Target After pressing the knob, turn the knob to selected destination MMSI for testing. The destination MMSI numbers are the nearest Class A targets found close to the Class A unit.

  • Page 82: Panel Test

    Rotate the knob to test in different brightness. To exit the function, press “MENU” or “ESC”. Figure 106 Test with Size and Brightness 4.10.10 Version Provide model name, hardware information, firmware version, etc. When finished, press ESC to exit. 2013/01/17 22:43:39 VERSION PRODUCT CAMINO-701 AIS Class A FIRMWARE V1.0.6.19 COMPANY Alltek Marine WEBSITE http://www.alltekmarine.com...

  • Page 83: Technical Specifications

    5 TECHNICAL SPECIFICATIONS 5.1 Applicable Standards IEC 61993-2 Ed. 2, 2012 IEC 62288 Ed. 1.0, 2008 IEC 60945 Ed. 4, 2002 IEC 62388 Ed. 1.0, 2007 IEC 61162-1 Ed. 4, 2010 ITU-R Recommendation M.1084-5 IEC 61162-2 Ed. 1, 1998 ITU-R M.493 IMO MSC.74 (69) Annex 3 ITU-R M.541 ITU-R Recommendation M.1371-4...

  • Page 84: Gps Receiver (Internal)

    5.4 GPS Receiver (Internal) Receiving Channels 50 channels ≧ -159 dBm Tracking & Navigation Sensitivity ≧ -159 dBm Reacquisition Sensitivity ＜ 2.5 m Autonomous Horizontal Position ＜ 2.0 m SBAS Receiver Type SBAS: WAAS, EGNOS,MSAS, GAGAN 5.5 Power Supply Supply Voltage 12V / 24V DC Less than 9W average @ 12V DC;...

  • Page 85: Environmental

    Mini type B USB interface NMEA2000 IEC61162-3 Alarm Output Relay contact 5.9 Environmental Operating Conditions IEC 60945 “protected” category Operating Temperature -15°C ~ 55°C Operating Humidity 95% RH at 40°C Waterproof IPX2 5.10 Physical Width 261 mm (10.28 inch) Height 184 mm (7.25 inch) Depth (include connectors) 102 mm (4.02 inch)

  • Page 86: Mechanical Dimensions

    6 MECHANICAL DIMENSIONS 6.1 CAMINO-701 Transponder Main Unit Front (size: mm) Side (size: mm)
  • Page 87 Back (size: mm) Bottom (size: mm)

  • Page 88: Junction Box

    6.2 Junction Box 6.3 Extension Cable 6.4 Mounting Template (not to scale)

  • Page 89: Vhf Antenna

    6.5 VHF Antenna 6.6 GPS Antenna 6.7 Pilot Plug 60 mm 80 mm 103.92 mm...

  • Page 90: Troubleshooting

    7 TROUBLESHOOTING Use the following guide to perform simple troubleshooting in case the transponder is not function accordingly. Symptom Possible Cause Solution Faulty connector to power Check power connection Transponder cannot power on Polarity reverse Check power connection Power supply current too low Check power supply Unit not powered up Press power key...

  • Page 91: Abbreviations

    8 ABBREVIATIONS Terms of abbreviations: Acknowledgement AtoN Aid to Navigation Automatic Identification System AUTO Automatic Alarm Auxiliary Antenna BIIT Built-In Integrity Test Bearing Channel Closest Point of Approach Course Over Ground DEST/DESTN Destination DISP Display DISP Display DIST Distance DGNSS Differential GNSS Digital Selective Calling DGPS...

  • Page 92: Multi-Functional Satellite Augmentation System

    Liquid Crystal Display Long Range Maritime Equipment Directive MMSI Maritime Mobile Service Identity Minute Man Overboard Multi-functional Satellite Minimum Keyboard and Display MSAS Augmentation System National Marine Electronics Navigation NMEA Association Nautical Mile Output Presentation Interface Receiver Autonomous Integrity RAIM Rate of Turn Monitoring Radio Technical Commission for...
  • Page 93 APPENDIX (A) IEC 61162-2 Data Interface The CAMINO-701 Class A AIS Transponder provides 2 types of IEC 61162-2 data interfaces for user applications. The first interface type includes 3 input-only sensor data ports and the second interface type includes 4 bidirectional input/output ports.
  • Page 94 A.1.2 Bidirectional Data Ports The schematic of bidirectional data port is shown in Figure A2. The schematics inscludes an isoltated full duplex RS-485 transceiver IC (Texas Instrument ISO3080) which is used as the main component to handle both data input and output from external data source. The transceiver IC is isolated from external input. To avoid signal reflection, the transceiver IC has an optional built-in 120Ω...
  • Page 95 Presentation Interface of CAMINO-701 Sensor Inputs PI Port No. 61162-1 Minimum required input sentences: int/ext * 61162-2 Position GNS, GLL, RMC RMC,VBW, VTG int/ext * RMC, VBW, VTG int/ext * 61162-1 Heading 61162-2 Rotaion rate RAIM 61162-1 61162-2 * for priority refer to IEC 61993-2...
  • Page 96 Supported IEC 61162 Data Sentences Data Port Input Sentences Output Sentences Sensor 1 DTM, GNS, RMC, VBW, HDT, HDG, ROT, Sensor 2 GBS, GLL, VTG, THS, GSA Sensor 3 DTM, GNS, RMC, VBW, HDT, HDG, ROT, DGPS GBS, GLL, VTG, THS, GSA ABK, ACA, VDM, VDO, ABM, ACA, ACK, AIR, BBM, SSD, External Display...
  • Page 97 Interpretation of Input Sentences A.5.1 ABM – AIS Addressed Binary and Safety Related Message This sentence supports ITU-R M.1371 Messages 6, 12, 25, 26 and provides an external application with a means to exchange data via an AIS transponder. !--ABM,x,x,x,xxxxxxxxx,x,xx,s—s,x*hh<CR><LF> Field No.
  • Page 98 A.5.3 ACK – Acknowledge Alarm This sentence is used to acknowledge an alarm condition reported by a device. $--ACK,xxx*hh<CR><LF> Field No. Format Description Remark Unique alarm number (identifier) at alarm source A.5.4 AIQ - Query Sentence This sentence is used to inquire AIS sentence information. $--AIQ,c—c*hh<CR><LF>...
  • Page 99 A.5.7 DTM – Datum Reference Local geodetic datum and datum offsets from a reference datum. $--DTM,ccc,a,x.x,a,x.x,a, x.x,ccc*hh<CR><LF> Field No. Format Description Remark Local datum Local datum subdivision code ignored x.x, a Lat offset, min, N/S ignored x.x, a Lon offset, min, E/W ignored Altitude offset, m ignored...
  • Page 100 A.5.10 GLL – Geographic Position – Latitude/Longitude Latitude and longitude of vessel position, time of position fix and status. $--GLL, llll.ll, a, yyyyy.yy, a, hhmmss.ss, A, a *hh<CR><LF> Field No. Format Description Remark llll.ll, a Latitude, N/S yyyyy.yy, a Longitude, E/W hhmmss.ss UTC of position Status, A=data valid V=data invalid...
  • Page 101 A.5.13 HDG – Heading, Deviation and Variation Heading (magnetic sensor reading), which if corrected for deviation will produce magnetic heading, which if offset by variation will provide true heading. $--HDG, x.x, x.x, a, x.x, a*hh<CR><LF> Field No. Format Description Remark Magnetic sensor heading, degrees x.x,a Magnetic deviation, degrees E/W...
  • Page 102 yyyyy.yy,a Longitude – E/W A.5.17 RMC – Recommended Minimum Specific GNSS Data Time, date, position, course and speed data provided by a GNSS navigation receiver. $--RMC, hhmmss.ss, A, llll.ll,a, yyyyy.yy, a, x.x, x.x, xxxxxx, x.x,a, a, a*hh<CR><LF> Field No. Format Description Remark hhmmss.ss...
  • Page 103 Pos. ref.,point dist. “B,” Pos. ref., point dist.“C,” Pos. ref.,point dist. “D,” DTE indicator flag Source identifier A.5.21 THS – True Heading and Status Actual vessel heading in degrees true produced by any device or system producing true heading. This sentence includes a “mode indicator” field providing critical safety related information about the heading data, and replaces the deprecated HDT sentence.
  • Page 104 Regional application flags A.5.24 VTG – Course Over Ground and Ground Speed The actual course and speed relative to the ground. $--VTG, x.x, T, x.x, M, x.x, N, x.x, K,a*hh<CR><LF> Field No. Format Description Remark x.x, T Course over ground, degrees true x.x, M Course over ground, degrees magnetic ignored...
  • Page 105 Parameter Id 4 , 0-998 Parameter value 4, 0- 1000000000 A.5.26 PAMC, DSC – Proprietary Sentences, Digital selective calling When AIS transponder receives DCS messages, this sentence is used to output DSC pattern. $PAMC,R,DSC,c-c*hh<CR><LF> Field No. Format Description Remark DSC pattern Interpretation of Output Sentences A.6.1 ABK –...
  • Page 106 A.6.3 ALR – Set Alarm State Local alarm condition and status. This sentence is used to report an alarm condition on a device and its current state of acknowledgement. $--ALR,hhmmss.ss,xxx,A, A,c--c*hh<CR><LF> Field No. Format Description Remark hhmmss.ss Time of alarm condition change, UTC Unique alarm number (identifier) at alarm source Alarm condition, A = threshold exceeded, V = not exceeded...
  • Page 107 hhmmss.ss UTC time of position llll.ll,a Latitude – N/S yyyyy.yy,a Longitude, E/W x.x,T Course over ground, degrees, true x.x,N Speed over ground, knots A.6.7 LR3 – AIS Long-Range Reply Sentence 3 The LR3 sentence contains the information items requested by the “I, O, P, U and W” function identification character (see the LRF sentence).
  • Page 108 c--c Text message A.6.10 VDM – AIS VHF Data-Link Message This sentence is used to transfer the entire contents of a received AIS message packet, as defined in ITU-R M.1371 and as received on the VHF Data Link (VDL), using the “six-bit” field type. !--VDM,x,x,x,a,s—s,x*hh<CR><LF>...
  • Page 109 Detection of Rx Malfunction The CAMINO-701 also has 3 built-in lock detectors (high active) to monitor each local oscillator (PLL circuit) of receiver channel 1, channel 2, and channel 70 respectively. If the operation of PLL circuit becomes abnormal, a logic low level will be sent from the lock detector to notify the system.
  • Page 110 APPENDIX (C) Installation and Maintenance Record The following installation record should be completed and retained on board the vessel for maintenance records. Vessel Information Vessel Name Flag State IMO Number MMSI Number Owner/Company Radio call sign Type of vessel Gross tonnage Length m Beam AIS Class A Transponder Information...
  • Page 111 Connected Sensors and Devices Connected Port Equipment Model Number Sensor 1 Sensor 2 Sensor 3 Ext Display Port Pilot Port Long Range Port DGNSS Data Port Other Device Installer Information Company Name Technician’s Name Telephone/Mobile No. Address Place Date Installer’s Signature...
  • Page 112 (firmware) version can be identified through MKD at MENU/DIAGNOSTICS/VERSION (please refer to section 4.10.10 in the manual). Each new software upgrade requires information recorded to reflect the change made. Software Maintenance Record Software Version By Date Change 1.0.6.23 AMEC 2013.04.12 Initial release Note:...
