HP Indigo BID Washer
User guide
Spanish version
illustration

Advertisement

Table of Contents
loading

Summary of Contents for HP Indigo BID Washer

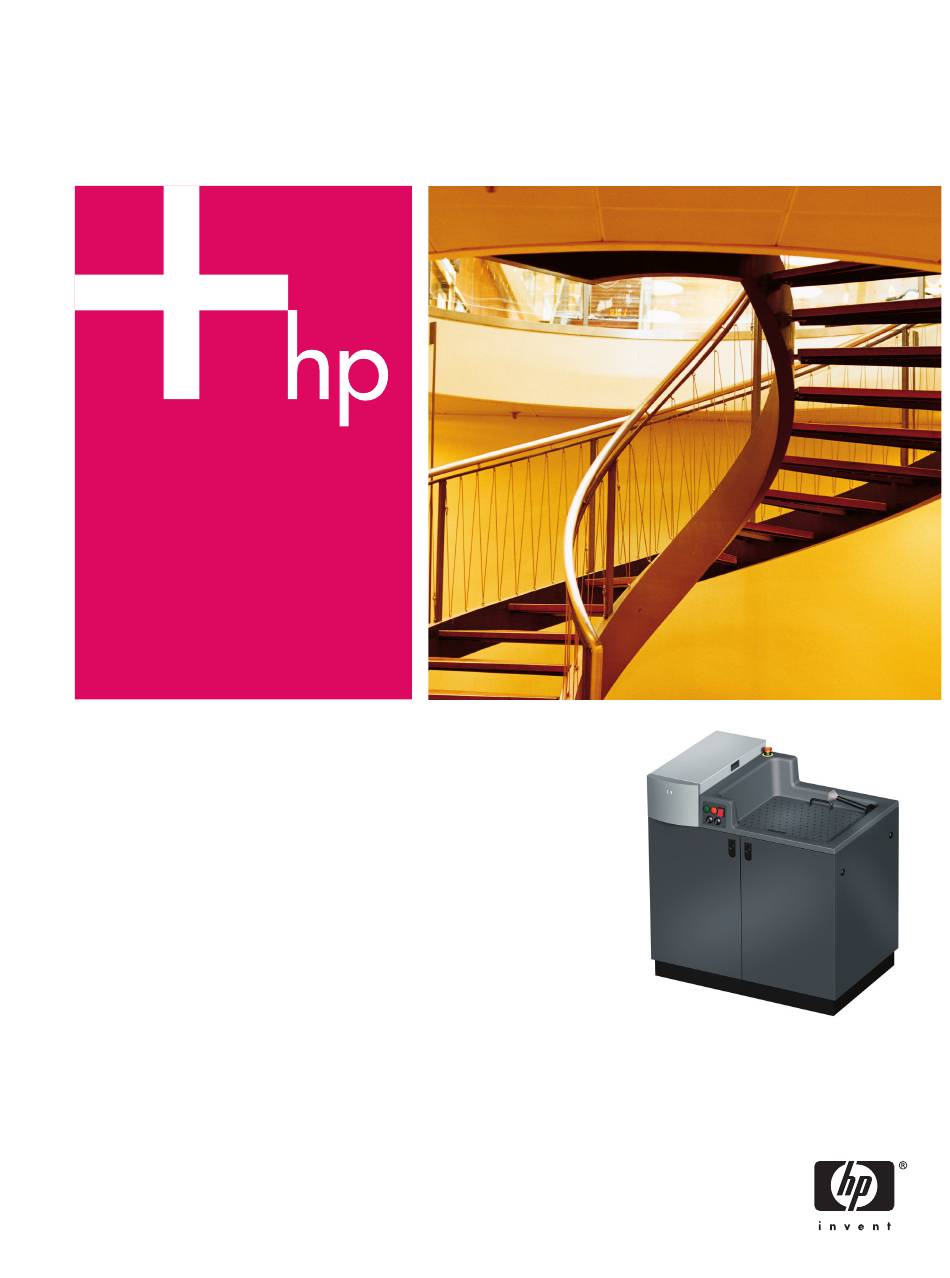

  • Page 1 HP Indigo BID Washer User guide Spanish version illustration...
  • Page 2 BID Washer User guide...
  • Page 3 Microsoft Corp. All other products or name brands are trademarks of their respective holders. The HP Indigo press is a Class 1 Laser Product containing high voltage power supplies and laser light sources. There is no danger to persons or...

  • Page 4: Table Of Contents

    Contents 1 Safety Overview ............6 Emergency Power Cut-Off .
  • Page 5 4 Contents ENWW...

  • Page 6: Safety

    Safety This chapter provides the following information: ● Overview ● Waste disposal ● Additional information ENWW...

  • Page 7: Overview

    Overview The BID Washer is used to clean BIDs for HP Indigo 3000, 4000, and 5000 series presses. The front view of the BID Washer is shown below. Rear Sink Left Right Open left door first Front Figure 1-1. BID Washer unit...

  • Page 8: Interlocked Doors

    Empty imaging oil containers Additional information It you have any questions regarding safe operation of the BID Washer, cease operation and contact HP Indigo Customer Support. Additional Material Safety Data Sheets are available upon request from your local HP office. Waste disposal 7...
  • Page 9 8 Chapter 1 Safety ENWW...

  • Page 10: Bid Washer

    BID Washer This chapter provides the following information: ● Figure Overview ● Operating the BID Washer ● Maintaining the BID Washer ENWW...

  • Page 11: Overview

    Overview The BID Washer, with the HP Indigo part number shown on page 23, is a cleaning device for cleaning BID units, ink tanks, and ink pumps. The BID Washer is an integral part of the package supplied to purchasers of the HP Indigo ink mixing system.

  • Page 12: Inside The Bid Washer

    Top BID door Emergency Stop button Cleaning brush Circuit breaker Control panel Front BID door Front doors Figure 2-2. BID Washer interlock doors Inside the BID Washer An internal view of the BID Washer shows an imaging oil tank, a pump, filters, and an electrical cabinet (Figure 2-3).
  • Page 13 Imaging oil filters Electrical cabinet Pump Imaging oil tank Imaging oil bottle Figure 2-3. Inside the lower compartment Within the electrical cabinet are the components that supply power to the pump and the BID Washer motor (Figure 2-4). Note that the fuses are located in the top left corner. Fuse box controller Main...

  • Page 14: Operating The Bid Washer

    Operating the BID Washer The Control Panel Change filter if lit Circuit breaker Refill imaging oil tank if lit. When held in the BID Lit if functioning Inching position, the normally, flashes pump is off and the if there is a developer roller in the problem.

  • Page 15: Cleaning The Bid Unit

    The BID assembly should be cleaned when replacing ink in an ink tank, or performing the HP Indigo ink mixing system procedure, which is required for adding a new or special color to the press. The HP Indigo press User Guide also recommends weekly cleaning of the BID units.
  • Page 16 BID Washer BID housing BID rail Right BID pin slot Left BID pin slot Insert in BID rail Insert in BID pin slot BID unit (rear–right side) motor developer Figure 2-7. Inserting the BID into its housing Operating the BID Washer 15 ENWW...
  • Page 17 Make sure the BID latch is locked. latch Imaging oil inlet Ink supply latch Set screw Imaging oil outlet Top BID door Emergency Stop button BID unit BID latch Ink coupling latch Figure 2-8. BID unit inserted in the BID Washer BID housing 16 Chapter 2 BID Washer ENWW...

  • Page 18: Cleaning Ink Tank And Pump

    Indigo press 5000, reinstall the BID fitting (Figure 2-6). 12 For BID installation, see the BID installation procedure in the HP Indigo press User Guide. 13 For BID storage, see the section on reusing the BID in the HP Indigo press User Guide. Cleaning ink tank and pump...

  • Page 19: Maintaining The Bid Washer

    Figure 2-10. BID Washer schematic Refilling the imaging oil tank Requirements: Imaging oil (see the HP Indigo part number on page 23). Frequency: When the Low Level light is on. The BID Washer imaging oil tank capacity is about 15 liters (4 gallons). The imaging oil tank supplies the sink (in Manual mode) and the BID (during the Long and Short BID Wash and the Tank Wash) with fresh imaging oil.

  • Page 20: Replacing The Imaging Oil Filters

    Remove the tank cap. Figure 2-12. Four liter imaging oil bottle Pour in one 4-liter (1.06-gallon) oil bottle (see the HP Indigo part number on page 23). Put the imaging oil tank cap on and then close it. Close the imaging oil tank door.
  • Page 21 Press the BID Washer Emergency Stop button. Open the BID Washer front doors (see Figure 2-2). Note that the lower left door must be opened first, as the two lower front doors are mechanically interlocked. Mount the filter extractor over the filter. Figure 2-13.
  • Page 22 Rubber gasket Figure 2-15. Unattached filter 10 Close the front doors. 11 Once the washing cycle is in motion, the imaging oil filters fill up. If the BID Washer indicates that imaging oil needs to be added, add imaging oil immediately. Do not wait until the end of the day.
  • Page 23 22 Chapter 2 BID Washer ENWW...

  • Page 24: A Parts And Supplies

    Parts and Supplies Imaging Products Description Part number Imaging Oil (4 Bottles, 4 liter) Q4302A Imaging Agent (250 ml) Q4301A Operator Maintenance Parts Description Part Number µ Imaging Oil filters (2), ZLE 10, 10 , diameter by length = 13 by 27.2 cm MFL-1014-41 (5 by 10.7 inches) Filter Extractor (120:130 mm)

  • Page 25: Supplies

    Supplies Description Part Number Supplier Alcohol IPA, 1 liter MCH-0027-01 Available at any pharmacy Disposable gloves, MTS-0006-01 Available at any pharmacy nitrile Synthetic cleaning pads, MTS-0009-03 Global Logistic 21902-985, lint-free Texwipe TX1009 Alpha wipe or equivalent Cotton swabs MTS-0007-01 Available at any pharmacy Cleaner, liquid organic MCH-0045-01 Global Logistic LC02-1017...

  • Page 26: B Service And Support

    Service and support To obtain service, please contact the customer care center (CCC) within your territory: North America Hewlett-Packard Company Indigo Division 400 Unicorn Park Drive Woburn, MA 01801 Tel: +1 800 204 6344 International Hewlett-Packard Company Indigo Division Limburglaan 5 6221 SH Maastricht The Netherlands Tel: +31 43 356 5656...
  • Page 27 26 Chapter B Service and support...
  • Page 28 © 2005 Hewlett-Packard Company This is an HP Indigo digital print. Printed in Israel. www.hp.com/go/indigo reorder #: P/N: CA294-02500...
