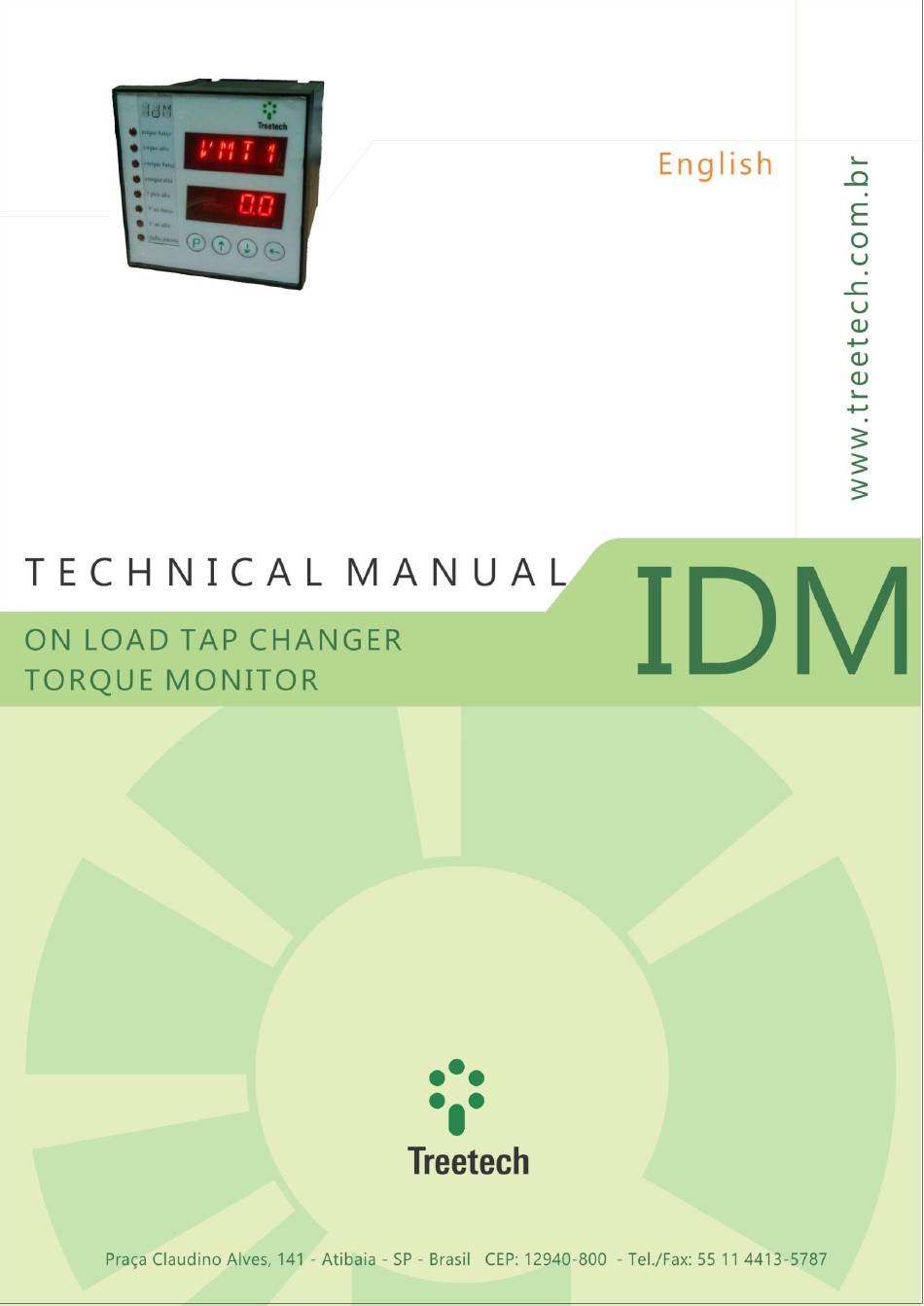

Treetech IDM Technical Manual

On load tap changer torque monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDM and is the answer not in the manual?

Questions and answers

Related Manuals for Treetech IDM

Summary of Contents for Treetech IDM

  • Page 2: Table Of Contents

    Safety Symbols ............................. 7 1.4.2 General Symbols ........................... 7 1.4.3 Minimum profile recommended for the IDM operator and maintainer ..........7 1.4.4 Environmental and voltage conditions required for installation and operation ........8 1.4.5 Instructions for test and installation ....................8 1.4.6...
  • Page 3 TYPE TESTS ..............................106 SPECIFICATION FOR ORDER ......................... 108 APPENDICES ............................109 10.1 A A – P IDM / SDM ......109 PPENDIX ARAMETERIZATION ABLES OF THE ORQUE ONITOR FOR HANGERS Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 4 IGURE POSITION MEASUREMENT THROUGH M NALOG IGNAL 20: C IDM..........38 IGURE ONNECTION OF THE INTERCONNECTION SHIELDING BETWEEN SENSORS AND THE 21 – IDM ............................40 IGURE OUTPUT RELAYS Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 5 UTPUT ERMINALS 7 – A IDM ............................48 ABLE LARM ODES OF THE 8 – C IDM ..................50 ABLE ODES OF DIGIT OF SELF DIAGNOSES GENERATED BY THE Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 6: Foreword

    The information contained in this document is subject to changes without prior notice. This document belongs to Treetech Sistemas Digitais Ltda. and may neither be copied, transferred to third parties nor used without express authorization, in terms of law 9.610/98.

  • Page 7: Safety Symbols

    The Important symbol is used to highlight relevant information. Tip: The Tip symbol represents instructions that facilitate use and access of functions in the IDM. 1.4.3 Minimum profile recommended for the IDM operator and maintainer Installation, maintenance and operation of equipment in electric power substations require special cares...

  • Page 8: Environmental And Voltage Conditions Required For Installation And Operation

    Only authorized and trained personnel – operators and maintainers – should handle this equipment. The operator or maintainer must be trained and authorized to operate, ground, turn on and turn off the IDM, following maintenance procedures according to the safety practices established, under the sole responsibility of the IDM operator and maintainer;...

  • Page 9: Cleaning And Decontamination Instructions

    (Chapter 5 - Parameterization). The IDM must be installed in a sheltered environment (a panel without doors in a control room or in a closed panel, in cases of outdoor installation) where the temperature and humidity specified for the equipment are not exceeded.

  • Page 10: Technical Assistance

    These inspections are not mandatory. Opening of the IDM at any time will imply in loss of the product warranty. In cases of undue opening of the equipment, Treetech will also not be able to warrant its correct functioning, regardless of the warranty period having expired or not.

  • Page 11: Warranty Term

    Tap Changer Torque Monitor Warranty Term The Tap Changer Torque Monitor – IDM will be warranted by Treetech for the term of 2 (two) years, counted as of the date of purchase, exclusively against eventual manufacturing defects or quality defects that make it improper for regular use.

  • Page 12: Review Log

    Miranda 2.71 24/jul/2018 Update of the nomenclature and description of the DNP3 option João Victor (subchapters 2.2 and 2.3) Miranda 2.72 11/oct/2018 Update of connection diagram João Victor Miranda Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 13: Introduction

    To detect such defects at an early stage and reduce the probability of unexpected stops, the IDM monitors the OLTC torque online, warning of changes in its typical signature that indicate failures in development.

  • Page 14: Main Characteristics

    Tap Changer Torque Monitor With the measurements and calculations of the engineering algorithms, the IDM emits alarms in case of abnormalities, as well as notices of maintenance in advance as programmed by the user, with activation of the output contacts.

  • Page 15: Optional Functions

    Allows connecting a potentiometric transmitter or an mA analog signal for indication of the TAP position of the changer in the IDM. The IDM can use this measurement to simply indicate the TAP position of the changer or to aid in calculations of the changer’s maintenance assistance, another optional function of the IDM. Also allows measuring the line current (IL).

  • Page 16: Basic Philosophy Of Operation

    The IDM conducts the online monitoring of the torque developed by the motor during the various stages of the switching, allowing the detection of mechanical failures in the changer before these reach a level of severity that can cause problems of greater proportion.
  • Page 17 (reversible). Thus, various data acquisition logics can be conducted without the need for duplication or inversion of contacts. The IDM has a self-diagnosis relay, signaling any measurement failure condition, lack of auxiliary supply or internal failure to the device. This contact is also reversible.

  • Page 18: Project And Installation

    3 Project and Installation System Topology The IDM has a basic topology, relating its inputs with its outputs, but depending on the existence or not of the associated optional functions, this topology can have some elements included in its scope. Note that not all optional items may be active at the same time.

  • Page 19: General Considerations

    The temperature sensor (RTDs) must be connected to the IDM Torque Monitor through shielded cable, without interruption of the grid, which must be grounded only at the end connected to the IDM. The RS-485 serial communication must be interconnected by means of a twisted-pair cable, maintaining the grid without interruption up to its end, grounding only one of the ends.
  • Page 20 Tap Changer Torque Monitor Figure 3 - IDM Dimensions Figure 4 – SDM Dimensions Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 21: Electrical Installation

    A circuit breaker must be used immediately before the power supply input (Universal supply - 38 ~ 265 Vdc/Vac, <5 W, 50/60 Hz), which corresponds to the pins 1 and 2 IDM. This circuit breaker must have a number of poles corresponding to the number of phases used in the supply – being that the poles must interrupt only the phases, and never the neutral or ground –...
  • Page 22 Tap Changer Torque Monitor The standard schematic diagram of the IDM connections shows all the connection possibilities provided by the IDM, identifying them according to Figure 5. Figure 5 - IDM input and output terminals If the Changer Position (4) option is active, one must choose when placing the order if a potentiometric transmitter will be connected in inputs 19, 21 and 30 or if an mA analog input will be connected in inputs 19 and 21.

  • Page 23: Input Terminals

    Figure 6 - IDM input and output terminals in their standard configuration Special attention must be paid to correct connection of the IDM components in all stages of the installation. Errors in connection of the equipment can cause risks to the operator and irreversible damages to it.
  • Page 24 Measures the current of the second phase of the changer motor. The measuring 25 – Common range is 0...10 Aac, 14 A peak, and error 1% of the measurement in the range 0.5...10 Aac. Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 25 For the measurement option of the TAP position to function correctly, one must 19 – TAP connect a potentiometric transmitter or an mA analog signal to the IDM. If you maximum choose the first option, this item describes where and how the transmitter 21 –...
  • Page 26 Tap Changer Torque Monitor 1) Supply and Ground The IDM has two universal supply inputs (38 to 265 Vdc/Vac 50/60 Hz). Supplying the IDM through auxiliary services of the substation is advisable, especially when it is integrated to a serial communication network for the purpose of gathering data for supervision or monitoring systems.

  • Page 27: Figure 7 - Connection And Grounding Of The Shielding Of The Figure 8 - Voltage And Current Connection For

    IDM and 29 is the VMT1 measurement input. With the IDM, it is possible to monitor the supply voltage of three different types of motor: CC, CA 1Φ and 3Φ. The connection diagrams for each one of the cases can be seen below.

  • Page 28: Figure 9 - Voltage Connection For Single

    Figure 9 – Voltage connection for single-phase AC motors without and with the aid of PT. The IDM’s voltage inputs for the single-phase AC motors support measurements of up to 265V AC or 300V DC. For this, if the motor is supplied with voltages that exceed 265V, use a PT to aid the measurement and then parameterize its ratio according to section 5.4.

  • Page 29: Figure 10 - Installation For Measurement Of The Voltage In Three

    PTs. The IDM’s voltage inputs for the three-phase AC motors support measurements of up to 240V AC or 300V DC. For this, if the motor is supplied with voltages that exceed 240V, use a PT to aid the measurement.

  • Page 30: Figure 11 - Connection To Measure The Voltage Of The Motor

    2.3, the IMT1 current must be done by enveloping the wire of the first phase of the motor with a clip-on CT and connecting it to inputs 26 and 25 of the IDM. The manner of making this connection can be seen in the diagrams below.

  • Page 31: Figure 12 - Measurement Of Supply Current Of An Figure 13 - Electrical Connection Diagram To Measure The Currents

    Note that the CTs were installed before the reversing switch to allow correct measurement of the cosφ. When a direct current (DC) motor, the current must be measured using a shunt resistor and Figure 14 shows how to make this connection: Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 32: Figure 14 - Voltage And Current Measurement Connection From The Figure 15 - Diagram For Measurement Of The Line And Heating Currents

    Tap Changer Torque Monitor Figure 14 – Voltage and current measurement connection from the DC motor to the IDM. Here, it is important to note three points: - The connections must be made before the reversing switch to prevent inversion of the power supply’s polarity from causing a short-circuit in pin 25;...
  • Page 33 9) IaqMec or IL: In the last input for the IDM currents, the currents of one of the following measurements may be connected: heating current of the heating system (IaqMec) or line current (IL). This is the only input for measurement of the IaqMec, while IL can also be connected to input 28.

  • Page 34: Figure 16 - Connection Of The Dry Contact To Monitor The State Of The Motor

    11) Potentiometric Transmitter: Optional Item 4: Changer Position allows the user to use the IDM to follow up the changer's TAP position. For this, a sensoring must be installed in the changer, and the IDM may read two types of them: potentiometric transmitter and mA analog signal.

  • Page 35: Figure 17 - Connection Of The Tap

    Figure 17 - Connection of the TAP measurement cable shielding The IDM automatically compensates the resistance of the potentiometric transmitter's connection cables up to the AVR, and for such the three wires must have the same length and size, the maximum resistance allowed for each one of the wires being 8.

  • Page 36: Figure 18 - Configuration Of The Potentiometric Transmitter

    The IDM allows the resistance per step of the potentiometric transmitter to be in the range of 4.7 to 20, and the transmitter's total resistance of 9.4 to 1000. value of each individual resistor is shown in Figure 18.
  • Page 37 IDM should only read the current that goes to the motor. To guarantee that the phase is the same of the current and voltage, the CTs must be connected in the same points because there are reversing contactors, responsible for inverting the phases and thus changing the phase between voltage and current.

  • Page 38: Figure 20: Connection Of The Interconnection Shielding Between

    An RTD temperature sensor can be connected to the IDM through shielded cables, without interrupting the grid, which must be grounded only at the end connected to the IDM, as close to this as possible. If there is need for intermediary terminal strips for interconnection of the RTD sensor, also pass the cable shielding through terminal strip, preventing its interruption.

  • Page 39: Output Terminals

    There are two of these relays in the IDM, but in the parameterization they can be configured to function normally as NO or inverted as NC. In the second case, while the IDM is powered up, the relay will function as NC, but if the equipment, or only the relay, is powered down, the contact will open.

  • Page 40: Access To The Idm Information

    Figure 21 – IDM output relays 4 Access to the IDM Information: All operations in the Torque Monitor for IDM Tap Changers are conducted through the keyboard of its front panel, external switches or buttons not being required. The voltages, currents and other magnitudes measured will be indicated in the display, and the conditions of alarms will be indicated by the signaling LEDs.

  • Page 41: Consultation Keys

    Consultation Keys: On turning on the IDM, the first screens that the user has access to are the consultation keys and display of the measurements. They are divided into two sections. The first is accessible as soon as the device is turned on.
  • Page 42 Voltage between the last pair of phases, 3 and 1. Circuit Breaker Auxiliary Contact ctdj Through the dry contact between pins 18 and 30, the IDM can monitor the state of the motor’s auxiliary circuit breaker. Consult here if it is open or closed. aber...
  • Page 43 After, using the arrows, navigate between the keys shown below: Oscillogram Circular Counter OSCc The oscillogram circular counter indicates the slot where the last oscillogram was recorded. Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 44 Single-Phase DC and AC motors when in assembly with option 3. 10.1 Learning Status Submenu that shows the learning status of the various variables of the IDM that are adjusted by this type of process. stmo Use the arrows to continue navigating between the other information or press in this --->...
  • Page 45 Counters for Maintenance If the changer’s maintenance option is active in the IDM, this information submenu will provide the content of the operation counters of relevant operation and maintenance. ctom...
  • Page 46 Daily average of the switched current integration increase. 0.00 Time for Maintenance Per Current Integration ittr Time remaining for maintenance by current integration Time of Service ttto Changer total time of service. Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 47: Version

    5678 To exit these screens and return to the previous level, press Alarms: In case of an alarm, the IDM displays will blink, showing a message like this one: Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 48: Table 7 - Alarm Codes Of The Idm

    Press to return to the screens of the previous level. Consult the table below to know individually the code of each alarm of the IDM: Table 7 – Alarm Codes of the IDM Alr1...

  • Page 49: Self-Diagnosis

    Motor in trigger 1000 2000 4000 8000 Self-diagnosis: diag When any internal or installation failure is detected in the IDM, the following message will blink in the display: 082A Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 50: Table 8 - Codes Of Digit 1 Of Self-Diagnoses Generated By The Idm

    1, 2 and 8 of that position are active at the moment. Consult the table below to know individually the code of each self-diagnosis generated by the IDM: Table 8 – Codes of digit 1 of self-diagnoses generated by the IDM...
  • Page 51 In case of the occurrence of a self-diagnosis marked with an (*) in the table above, the error will very likely be caused by an internal error of the equipment. In this case, contact the Treetech technical support. Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 52: Parameterization

    Tap Changer Torque Monitor 5 Parameterization To guarantee its correct operation, several parameters must be adjusted in the IDM that will provide the equipment with necessary information for its functioning. The programmable parameters are organized in their menus with password-protected access. In the main menu, the user will have access to the programming submenus, where he can navigate and adjust the values according to the transformer’s characteristics and needs of the users.
  • Page 53 Setting range: -12 to +12 in steps of 1 hour Standard Value: -3 h Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 54: Conf Menu - Setting

    Menu variables are as follows: conf PROT – Protocol Choose the communication protocol you want the IDM to use to communicate with PROT the data acquisition system. The availability of the DNP3 depends on the purchase of optional item 1: modb Setting range: Modb - Modbus, dNP –...
  • Page 55 Sometimes there is need to connect a CT and/or shunt, two CTs or two shunts in RCT2 cascade to put the current in a range that can be monitored by the IDM. This parameter is in relation to the transformation ratio of the second CT.

  • Page 56: Oscl Menu -Oscillography

    Allows choosing if during the oscillography the supply current of the first, or only, IOS1 phase of the motor will be recorded. Setting range: ON - Records, OFF - Does not record. Standard Value: ON Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 57 Due to lacking this factor, this choice is not available for DC PFOS motors. Setting range: ON - Records, OFF - Does not record. Standard Value: ON Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 58: Sign Menu - Motor Signature

    Setting range: 0 - 255. Standard Value: 0 SIGN Menu - Motor Signature The IDM uses some oscillograms to draw up the motor’s operation profile during the Menu switching. It is thus possible to evaluate the motor’s performance and detect if anything is causing it to leave its normal operating condition.
  • Page 59 MASS – Signature Upper Margin Tolerance margin used to determine the upper limit for the motor consumption mass signature curve. Setting range: 0.1 to 100, in steps of 0.1% Standard Value: 20% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 60 This value is used to recognize that this type of TAP transition is occurring. This screen will only occur if “TINT” = 4. Setting range: 0.1 to 60, in steps of 0.1 s Standard Value: 25s Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 61: Alrm Menu - Alarms

    In this menu, the user gains access to the settings of the alarms generated by the menu IDM. Alarms can be set in different aspects, therefore, there are three submenus in this menu, which divide the settings of the alarms according to the categories listed...

  • Page 62: Geal Submenu - General Settings

    1825 Standard Value: 1825 days RTMA – Advance Maintenance Alert To facilitate planning, the IDM considers the trend of the various criteria and alerts RTMA the time of maintenance in advance. How much in advance is set in this parameter.
  • Page 63 HRLT – Temperature to Turn On Heating OLTC Define the temperature below which the mechanism’s heating system must be HRLT turned on. Setting range: -40 to 40, in steps of 1ºC. Standard Value: 0 Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 64: Mode Submenu - Operation Mode

    Standard Value: 20s 5.7.2 MOdE Submenu – Operation mode The IDM is an intelligent device, and one of its capacities is to be able to use a OLTC sampling period to learn the suitable operating conditions for the motor and...

  • Page 65: Val Submenu - Threshold Values

    Setting range: 0 to 600, in steps of 0.1V. Standard Value: 160V Setting range: 0 to 100, in steps of 0.1% Standard Value: 20% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 66 Setting range: 0.1 to 999.9, in steps of 0.1A. Standard Value: 150A Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 67 Setting range: -99.99 to 99.99, in steps of 0.1W.h. Standard Value: 0.2W.h Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 68 Intermediary TAP will be activated. Setting range: -99.99 to 99.99, in steps of 0.1W.h. Standard Value: 0.2W.h Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 69 Intermediary TAPs will be activated. Setting range: -99.99 to 99.99, in steps of 0.1W.h. Standard Value: 0.2W.h Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 70 Intermediary TAPs will be activated. Setting range: -99.99 to 99.99, in steps of 0.1W.h. Standard Value: 0.2W.h Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 71 Intermediary TAPs will be activated. Setting range: -99.99 to 99.99, in steps of 0.1W.h. Standard Value: 0.2W.h Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 72 Setting range: 90 to 999.9, in steps of 0.1 s. Standard Value: 2s Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 73 Setting range: 90 to 999.9, in steps of 0.1 s. Standard Value: 90s Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 74 OVH2 Setting range: 90 to 999.9, in steps of 0.1 s. Standard Value: 120s Setting range: 0 to 100, in steps of 0.1% Standard Value: 20% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 75 OVH3 Setting range: 90 to 999.9, in steps of 0.1 s. Standard Value: 120s Setting range: 0 to 100, in steps of 0.1% Standard Value: 20% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 76 MTRG Setting range: 90 to 999.9, in steps of 0.1 s. Standard Value: 100s 50.0 Setting range: 0 to 200, in steps of 0.1% Standard Value: 50% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 77 Setting range: 0 to 300, in steps of 0.1V. Standard Value: 150V 10.0 Setting range: 0 to 100, in steps of 0.1% Standard Value: 10% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 78 Setting range: 0 to 300, in steps of 0.1V. Standard Value: 160V 20.0 Setting range: 0 to 100, in steps of 0.1% Standard Value: 20% Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 79: Clas Submenu - Classification

    UMVL - Motor Voltage During Operation Very Low umVL Define the classification of this alarm. Setting range: - - Deactivated, BL – Blue, YL – Yellow, RD - Red Standard Value: - Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 80 Standard Value: - EH - High Operation Energy Define the classification of this alarm. Setting range: - - Deactivated, BL – Blue, YL – Yellow, RD - Red Standard Value: - Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 81 SGL – Consumption Curve Under the Curve Define the classification of this alarm. Setting range: - - Deactivated, BL – Blue, YL – Yellow, RD - Red Standard Value: - Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 82 MTVL – Very Low Temperature of the Mechanism MTVL Define the classification of this alarm. Setting range: - - Deactivated, BL – Blue, YL – Yellow, RD - Red Standard Value: VM Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 83 Standard Value: AM VCH - High Control Voltage Define the classification of this alarm. Setting range: - - Deactivated, BL – Blue, YL – Yellow, RD - Red Standard Value: AM Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 84: Temp Menu - Mechanism Temperature

    In this menu, one defines if there is temperature sensing and, if yes, which temperature will be measured. MECT - Mechanism Temperature If there is an RTD temperature sensor like the PT100Ω connected to the IDM and the MECT user wishes to use it to monitor the mechanism temperature, one must enable this variable.

  • Page 85: Meci Menu - Mechanism Heater Current

    If the measurement is done using two transformation elements, the ratio of the second shunt resistor or measuring CT must be parameterized here. Setting range: 1 to 10000, in steps of 1. Standard Value: 1 Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 86: Comv Menu - Control Voltage

    Standard Value: 1000 A IEXP - Current Exponent iexp Switched current exponent to calculate wear of the changer contact. Setting range: 1 to 5 with step of 0.01. 2.00 Standard Value: 2 Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 87 SNT3 There is need for option 4: Changer Position is active. Setting range: 1 to 5 with step of 1 for this parameter to be used by the IDM. Standard Value: 1 SNT4 – Switching of the Current with Four Intermediary Positions...
  • Page 88 IDM. This variable will be increased by the IDM in the extent in which the OLTC is used. TNO1 Since this can be a very large number and only four digits fit into the IDM display, the three most significant must be entered in this part... Setting range: 0 to 999 with step of 1.
  • Page 89 OLTC is used. IIM1 Since this can be a very large number and only four digits fit into the IDM display, the four most significant must be entered in this part... Setting range: 0 to 9999 with step of 1 p.u.
  • Page 90 CRST IDM to continue providing a good assistance on notifying the moment of a new maintenance. Setting range: YES – Reset, NO – Nothing happens.

  • Page 91: Li Menu - Line Current

    This parameterization item will exist only if the method for measuring the TAP position chosen at the time of purchase of the IDM is mA analog input. Enter here the scale of the mA signal of the analog output from those cited below.

  • Page 92: Conf Submenu - Advanced Settings

    Menu for exclusive use by manufacturer. faCT On making an attempt to access the factory menu with wrong password, the IDM will show in its display the VOID message for a few seconds. The time of indication of this message increases in the extent in which new attempts are made with wrong password.
  • Page 93 Setting range: FIXE - Does not roll, ALT - Rolls. Standard Value: FIXE CdEN – Auxiliary Contact Having chosen here YES, the IDM will monitor the motor's auxiliary contact position. cden If the contact is detected as open, an alert will be activated, but this logic between the open contact and notice may be inverted in the next item.

  • Page 94: Rela Submenu - Relays

    Setting range: 0 to 8191, in steps of 1. Standard Value: 0 5.13.2 RELA Submenu - Relays The IDM has output relays that can be programmed to activate light boards and avan other systems interested in knowing the state of the alarms. In this submenu, the relays can be tested and have their functions programmed.
  • Page 95 MOdE – Relay Mode Relays 1 to 3 may function in NO or NC modes, depending on how electrical installation of the IDM is done. By hardware, relays 4 and 5 are always NO. modE However, the IDM allows the electrical assembly logic to be inverted by firmware norm such that all the relays can function in NO and NC modes.
  • Page 96 Activates Relay if SMFR = 1, 2 or 3, Blue, Yellow or Red. RYBG : Activates Relay if SMFR is in any one of the states 0, 1, 2 or 3. Standard Value: - Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 97 UMH - Motor Voltage During Operation High Decide if the relay must be activated when this alarm is active. Setting range: YES - Activates, NO - Does not activate. Standard Value: NO Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 98 EVH - Very High Operation Energy Decide if the relay must be activated when this alarm is active. Setting range: YES - Activates, NO - Does not activate. Standard Value: NO Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 99 SGA – Consumption Curve Above the Signature Decide if the relay must be activated when this alarm is active. Setting range: YES - Activates, NO - Does not activate. Standard Value: NO Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 100 MTL – Low Temperature of the Mechanism Decide if the relay must be activated when this alarm is active. Setting range: YES - Activates, NO - Does not activate. Standard Value: NO Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 101 VCVH - Very High Motor Control Circuit Voltage vcVH Decide if the relay must be activated when this alarm is active. Setting range: YES - Activates, NO - Does not activate. Standard Value: NO Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 102 To read all the alarms individually remotely, an interesting option would be to acquire a monitoring system like the SIGMA from Treetech, which also integrates other equipment of the substation and allows one to follow up and record all measurements and oscillograms online.

  • Page 103: Log Submenu - Historical Record

    Setting range: SIM – [Yes] Test/close relay, NAO – [No] Do not test/open relay. Standard Value: NAO [No] 5.13.3 LOG Submenu - Historical Record With option 2 - Mass Memory, the history of the IDM measurements is recorded in a aDVA LOG. Set in this menu aspects of these records.

  • Page 104: Commissioning To Start Service

     Before powering up the changer, or before removing the short-circuit from the secondary of the CTs, check if the circuits of the current transformers are connected accurately to the IDM input, ensuring that no CT is open; ...

  • Page 105: Technical Data

    Maximum switching power: 70 W(dc) / 220 VA(ac) Maximum switching voltage: 250 Vdc / 250 Vac Maximum conduction current: Serial Communication Ports: 1 RS-485 standard Communication Protocols: Modbus RTU, DNP3 (Optional) Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 106: Type Tests

    Tap Changer Torque Monitor 8 Type Tests The IDM is an equipment built on the SmartSensor 1 platform and tested according to the table: Immunity to Surges (IEC 60255-22-5 and IEC 61000-4-5): Differential mode: 1kV, 5 per polarity (+/-) Common Mode:...
  • Page 107 3 axes, sinusoidal 160 min/axis, 10 to 150 Hz, 2G Electrical safety (EN 61010-1): Protections against electric shock, mechanical risk, risk due to fluids and spreading of flame Resistance to heat and protective devices Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...

  • Page 108: Specification For Order

    Tap Changer Torque Monitor 9 Specification for order The IDM is a universal equipment, with its features selected in its programming menus through its front panel or communication ports. The supply input is universal (38 to 265 Vdc/Vac, 50/60 Hz).

  • Page 109: Appendices

    Some submenus and parameters are shown only if the respective optional functions are available. Table 10 - Auxiliary table for parameterization of the Tap Changer Torque Monitor – IDM / SDM Tap Changer Torque Monitor (IDM / SDM) – Parameterization Sheet Serial No.:...
  • Page 110 Time of service for maintenance alert days GEAL RTMA Time in advance for issuance of maintenance days alert ALTT Timing for alarms due to temperature MTVL Alarm due to very low mechanism temperature ºC Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 111 Very low operation energy with 1 intermediary W.h or TAP alarm Low operation energy with 1 intermediary TAP W.h or alarm High operation energy with 1 intermediary TAP W.h or alarm Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 112 High operation time with 2 intermediary TAPs s or % OVH2 Very high operation time with 2 intermediary s or % TAPs OVL3 Very low operation time with 3 intermediary s or % TAPs Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 113 Voltage in the motor during operation high –, B, alarm Y, R UMVH Voltage in the motor during operation very high –, B, alarm Y, R High current peak alarm –, B, Y, R Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 114 –, B, Y, R HILW Low heating current –, B, Y, R HIHG High heating current –, B, Y, R VCVL Very low control voltage –, B, Y, R Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 115 TNM2 Number of operations since last maintenance, least significant part IIT1 Total current integration, most significant part p.u.n IIT2 Total current integration, least significant part p.u.n Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 116 Hysteresis of the alarms DBCT Debouncing time NPWD New password Note down the setting for each one of the five relays: RL”n” MODE Mode of functioning of the relays NORM or INV Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 117 Consumption curve below the signature YES or Consumption curve above the signature YES or WOMA Maintenance alert by number of operations. YES or WIMA Maintenance notice by current integration YES or Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
  • Page 118 Low control voltage during operation YES or High control voltage during operation YES or UCVH Very high control voltage during operation YES or Time for log record LOG Reset YES or Instruction Manual – IDM/SDM | MA-038 | 11/Oct/2018 | Review: 2.72...
