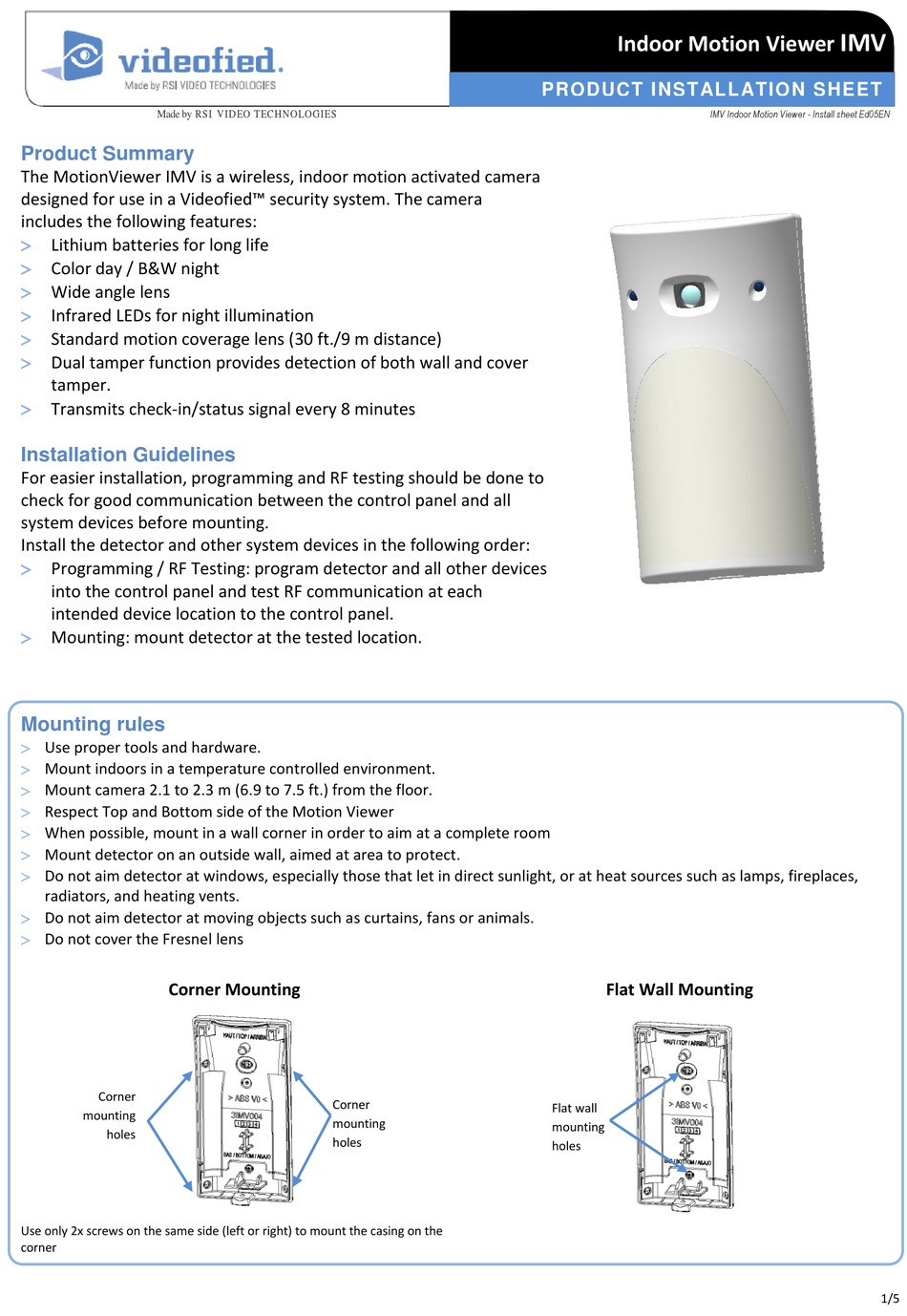

Videofied Indoor Motion Viewer Product Installation Sheet

Made by RSI VIDEO TECHNOLOGIES

Product Summary

The MotionViewer IMV is a wireless, indoor motion activated camera
designed for use in a Videofied™ security system. The camera
includes the following features:

Lithium batteries for long life

Color day / B&W night

Wide angle lens

Infrared LEDs for night illumination

Standard motion coverage lens (30 ft./9 m distance)

Dual tamper function provides detection of both wall and cover
tamper.

Transmits check-in/status signal every 8 minutes

Installation Guidelines

For easier installation, programming and RF testing should be done to
check for good communication between the control panel and all
system devices before mounting.
Install the detector and other system devices in the following order:

Programming / RF Testing: program detector and all other devices
into the control panel and test RF communication at each
intended device location to the control panel.

Mounting: mount detector at the tested location.

Mounting rules


Use proper tools and hardware.

Mount indoors in a temperature controlled environment.

Mount camera 2.1 to 2.3 m (6.9 to 7.5 ft.) from the floor.

Respect Top and Bottom side of the Motion Viewer

When possible, mount in a wall corner in order to aim at a complete room

Mount detector on an outside wall, aimed at area to protect.

Do not aim detector at windows, especially those that let in direct sunlight, or at heat sources such as lamps, fireplaces,
radiators, and heating vents.

Do not aim detector at moving objects such as curtains, fans or animals.

Do not cover the Fresnel lens
Corner Mounting
Corner
mounting
holes
Use only 2x screws on the same side (left or right) to mount the casing on the
corner
Corner
mounting
holes
Indoor Motion Viewer
PRODUCT I NSTALL ATIO N SHEET
IMV Indoor Motion Viewer - Install sheet Ed05EN
Flat Wall Mounting
Flat wall
mounting
holes
IMV
1/5
