Summary of Contents for Idealight HT-LM-60S Mini

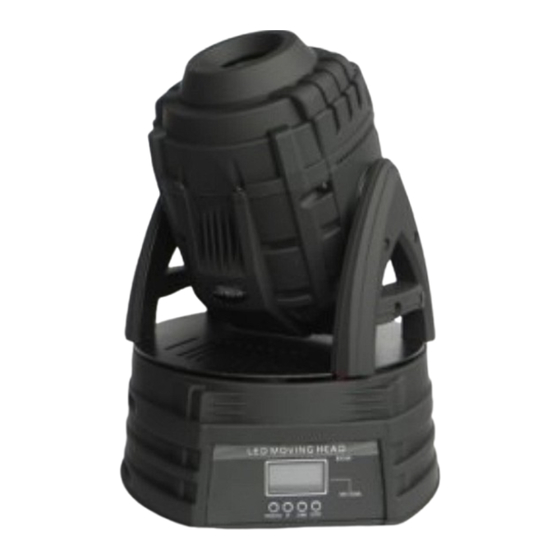

- Page 1 LED SPOT MOVING HEAD USER MANUAL （ （ （ （ 60W White) Order Code: HT-LM-60S Mini...
- Page 2 Product Instruction Working votage:AC90-240V/50Hz Power Consumption:130W Light Source:60W LED Channel Signal: DMX 512, 15 channel Palette:7palette+white+rainbow effect Gobo wheel:7gobo+white+rainbow effect Prism:1 *3-fice prism Strobe:0-10/S,Adjustable Dimmer:0%~100% Linear Dimming All functions can be operated by manual without dmx controller. Pan:540°8bit/16bit adjustable, Electronic correction Titl:270°8bit/16bit adjustable, Electronic correction.
- Page 3 To avoid damage this fixture, please don't use alcholol or other Run DMX organic solvents to clean the fixture shell. Addr:001 Declaration Before delivery,this fixture Mode Set DMX have the performance intact, packaging integrity, and all users should strictly observe the above warnings and operating instructions for the Reload matter, with any damage caused by misuse is not guaranteed wihtin the tcompany,for damages caused by ignoring the munual instruction...
- Page 4 DMX values Functions Channel DMX values Functions Channel 1 Pan 0~255 0~540° 0~15 Open 3 Pan 16 Bit 0~255 16bit adjustable 16~30 Gobo 1 1 Tilt 0~255 0~270° 31~45 Gobo 2 4 Tilt 16 Bit 0~255 16bit adjustable 46~60 Gobo 3 5 Pan/Tilt Speed 0~255 From fast to slow...
