Summary of Contents for SV green Smart Charger SV102

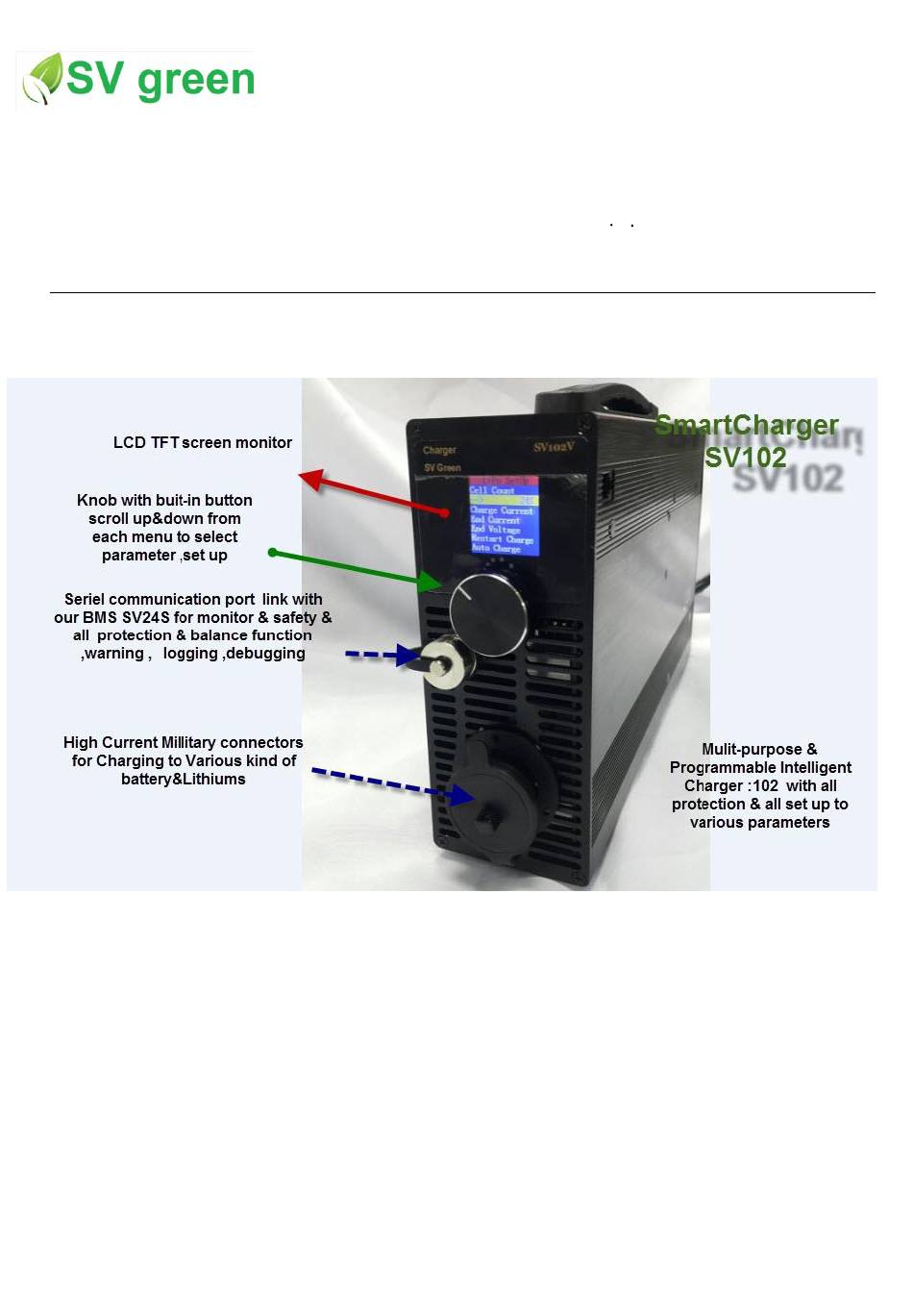

  • Page 1 SV102 v1.2 Operation Manual ead the ENTIRE instruction manua to become familiar with the features/functions of the device before operating.
  • Page 2 SV102 v1.2 Features The Battery Charger has been designed to provide reliable, quality charging for battery systems in electric drive vehicles. It is a high efficiency wide input voltage charger, the charger can output 1800W at AC90V~265V in a smaller size. Many creative technology help to realize up to 94% of efficiency, and the internal temperature is still under 50℃.

  • Page 3: Protection Functions

    SV102 v1.2 Protection functions Over current protection Over voltage protection Charge power protection Over temperature protection Anti spark on battery connection even 100V battery connect to charger Reverse polarity protection of battery connection Prevent any cell from over charging, adjust charge current automatically fit with Charger BMS Main battery type and cell count Terminal charge Voltage per cell Terminal...
  • Page 4 SV102 v1.2 cell count/Battery Pb/VRLA/Gem LiPo,V Li-ion,V LiFePO4,V LiTo,V rated voltage battery,V 15.4 15.0 19.3 18.8 16.0 23.1 22.5 19.2 12.0 27.0 26.3 22.4 16.8 14.0 30.8 30.0 25.6 19.2 16.0 34.7 33.8 28.8 21.6 18.0 38.5 37.5 32.0 24.0 20.0 42.4 41.3...
  • Page 5 SV102 v1.2 Operation Instructions Charge flow diagram...
  • Page 6 SV102 v1.2 Automatically Charge flow Connect to AC power Connect charger to AC power disconnect battery and battery Display AUTO mode On charge Setup interface Finish all settings Press knob for 3 seconds Idle mode, resume to normal work mode Alternate Auto Charge yes Press Knob button for 3 seconds The charger will work at AUTO...
  • Page 7 SV102 v1.2 1. Connect SV102 to AC 110 / 220V outlet by the special heavy power cable, if use other brand cable, please note the wire AWG must be AWG14 at least. 2. Connect battery to charger. 3. Connect Charger BMS SV24 to charger if possible. 4.
  • Page 8 SV102 v1.2 7. Setup the charger work at Auto mode, Finish all charge settings, alternate Auto charge YES and press Knob for 3 seconds, the charger will start to charge, and work at Auto mode in future till disable it. When the charger work at Auto mode, what you need to do is connect the AC power and battery to the charger.
  • Page 9 SV102 v1.2 Tips □ All parameters will be remembered by the SV102 till next change. □ Choose battery type, and press knob for 3 seconds start to charge at last setup, save many operating time. □ When you need charge one battery repeat, you can save Auto Charge mode, the charger will charge automatically, you need not setup any parameters, at AUTO charge, press Knob button shortly can stop charging at any time, and press it again start to charge.

  • Page 10: Program Setup

    SV102 v1.2 Program Setup 1. In charger idle interface, press button for 2 seconds enter knob into Program Setup menu. 2. LCD display the following information in sequence and you can modify its value. When you want to alter a parameter value, press button make the value blink then modify the value by knob rotate the button.
  • Page 11 SV102 v1.2 As power supply On Battery type interface, choose power supply setup output voltage and maximal output current, the charger will work as a programmed power supply; you can set up the output voltage and maximal output current, and then press Knob for 3 seconds power on the charger.

  • Page 12: Mechanical Characteristics

    SV102 v1.2 □ Over temperature protection, 110℃ max. □ Short- circuit protection on output. □ Prevent any cell from over charging, adjust charge current automatically fit with Charger BMS Mechanical Characteristics Size：275*170*68 (L*W*H, mm) or 10.8 * 6.7 * 2.7 (L*W*H, inch) □...

  • Page 13: Error Information

    SV102 v1.2 NOTE Charger SV102 decrease charge current according to “Over Charge Protection (P) Voltage” on BMS setup, so please setup the charge terminal voltage in accordance with Over Charge Protection (P) Voltage on BMS SV24S. Error Information When the following error events trigged, the beeper will sound for 10 seconds and error information will be displayed, you can press button turn off beeper sound and back up to Idle or auto mode knob...
  • Page 14 SV102 v1.2 Warnings □ Never leave the charger unattended when it power on. If any malfunction is observed, please press Knob button power off the charger as fast as possible. □ Keep away the charger from dust, damp, rain, heat direct sunshine and vibration. Do not drop it. □...

  • Page 15: Related Parts

    Related parts MODEL DESCRIPTION COMMENTS BMS_S16 2-16S battery management system BMS S24 2-24S battery management system S400 High efficiency wide input voltage PFC charger 6~15V 25A 400W output S600 High efficiency wide input voltage PFC charger 10~18V 33A 600W output S1200 High efficiency wide input voltage PFC charger 12~24V 50A 1200W output...
