Economical Humidity Monitoring
C
ONTENTS
This package contains:
• 1
HA-1
• 2
Wire nuts
• 2
Lead wires
• 1
Owner's Manual
S
PECIFICATIONS
Power Requirements
Sensing Range
Sensing Element
Response Time
Output Contact Ratings
Operating Temperature
Optimum Operating Temperature
Weight
Dimensions
Case Material
Mounting
• 1
Rubber mounting gasket (duct mounting only)
• 1
Adhesive mounting template/instructions (duct
mounting only)
• 2
Mounting screws (for use with single-gang wall box)
1950 Excel Drive • Mankato, MN 56001 USA
(Tech Support 8:00am - 5:00pm CST)
(800) 635-4269 • (507) 625-7231 P • (507) 387-2488 F
www.winlandsecurity.com
None
20-80% RH ±10% RH
Nylon band
TC = 12 min.
1A resistive @ 24VDC;
50VA @ 24VAC
60 to 90°F (15 to 32°C)
70°F (21.1°C)
8 oz (0.23 kg)
5 x 3.18 x 2.43" (12.7 x 8.1 x 6.2 cm)
ABS plastic
Wall, wall box, or duct surface
HA-1
Z1902 Rev C (Nov 2009)
Advertisement
Table of Contents
Summary of Contents for Winland Humid-Alert HA-1

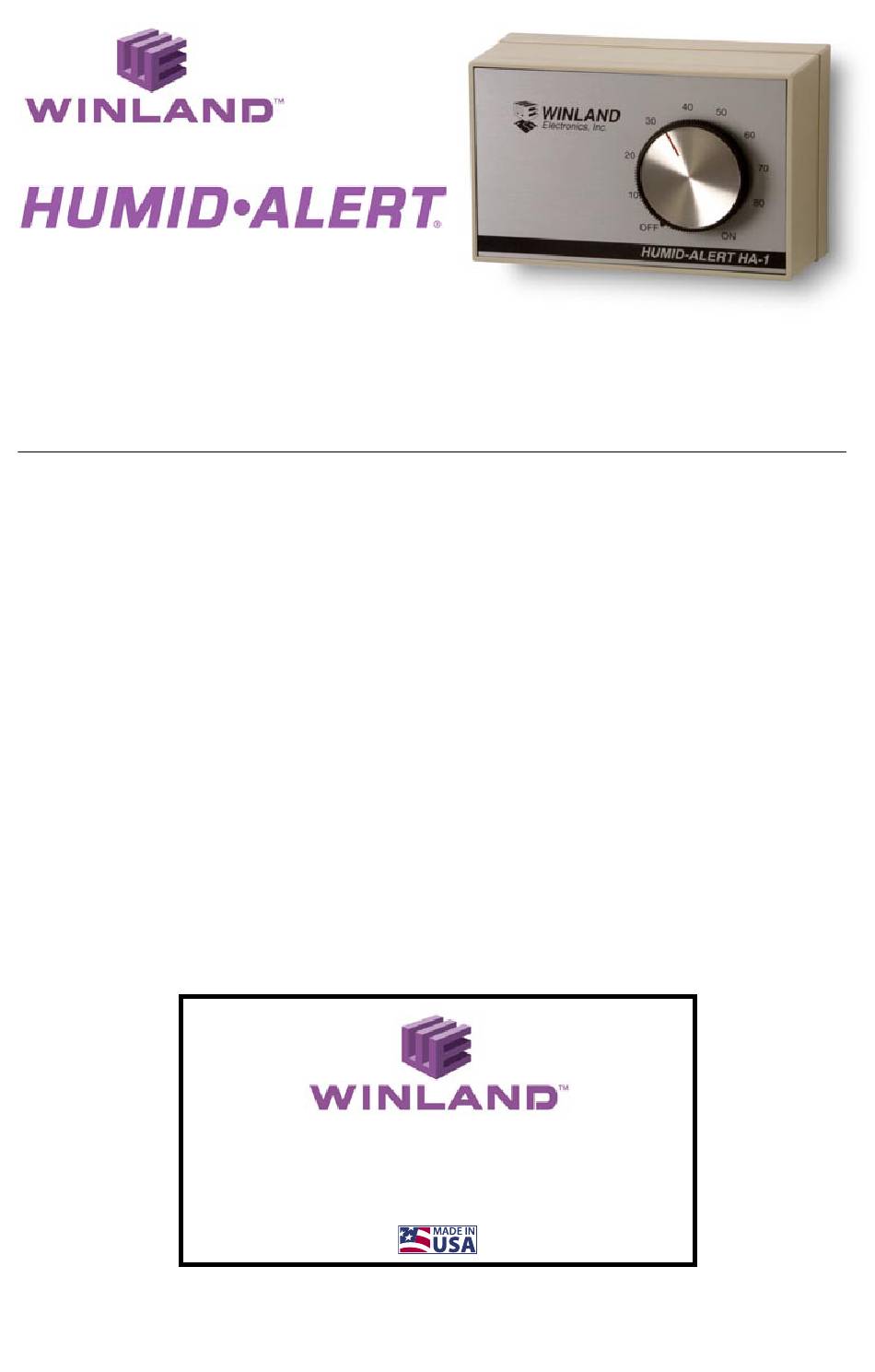

- Page 1 Economical Humidity Monitoring ONTENTS HA-1 This package contains: • 1 HA-1 • 1 Rubber mounting gasket (duct mounting only) • 2 Wire nuts • 1 Adhesive mounting template/instructions (duct • 2 Lead wires mounting only) • 1 Owner’s Manual • 2 Mounting screws (for use with single-gang wall box) PECIFICATIONS Power Requirements...
-
Page 2: General Information
This is a single set-point device; it can monitor for either a high or a low level, but not both. If additional monitoring (high and low) is required, Winland’s EnviroAlert® line of products with humidity monitoring accessories is recommended. - Page 3 To install directly onto a wall: NOTE: If installing on sheetrock, use sheetrock anchors and screws. 1) Drill a small hole in the wall and run low voltage wiring from alarm panel, dialer, etc. to the location chosen. Pull about six inches of wire through the hole.
- Page 4 The contact rating output for the Humid•Alert is 50VA @ 24VAC; 1A resistive @ 24VDC. How can I monitor for both high and low humidity levels? The HA-1 will monitor only one limit, either high or low. The Winland EnviroAlert® products are designed to monitor for both high and low limits. Several configuration options are available: 1.
