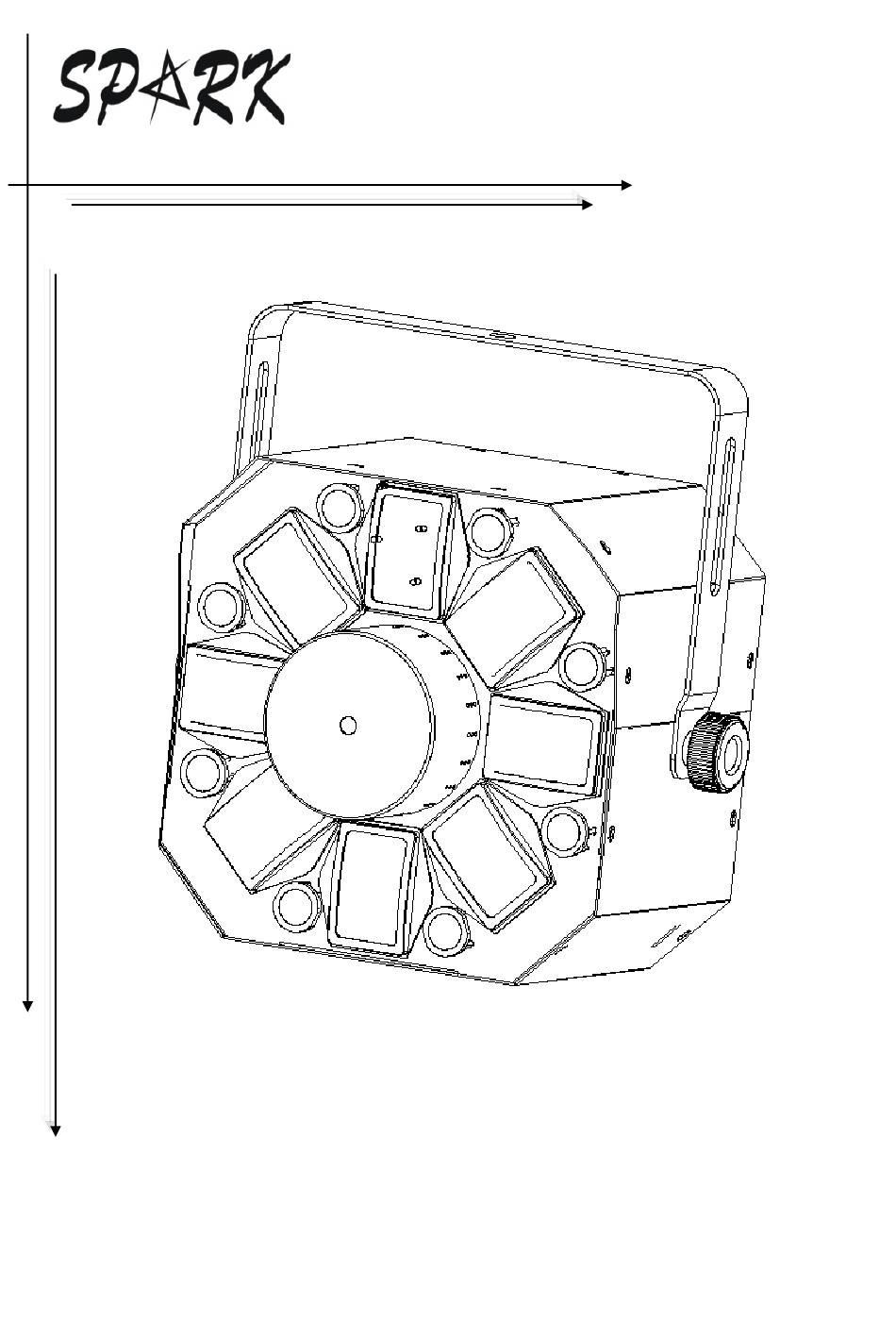

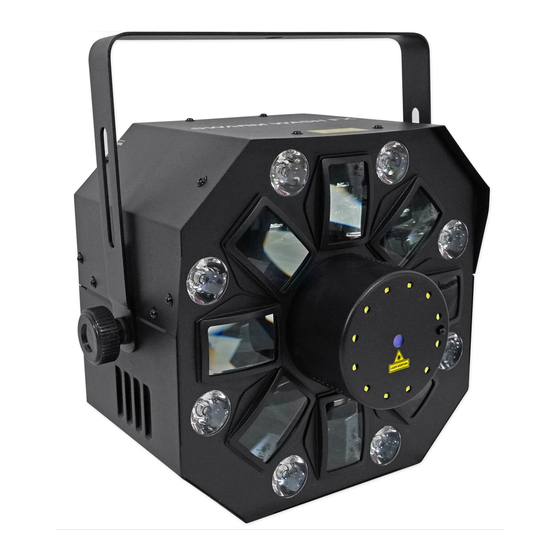

- Page 1 LED Strobe Laser Light User Manual SPL-RG-301B Please read this manual carefully before use!
-
Page 2: Table Of Contents
LED Strobe Laser Light User Manual http://www.sparklaser.com Contents Introduction----------------------------------------------------------------------------P2 Silkscreen on light ----------------------------------------------------------------P3 Safety instruction and product specification-------------------------------P4 Menu operation, function ---------------------------------------------------------P5 Channel instruction and controller connection----------------------------P6 Address setting --------------------------------------------------------------------- P7 Structure and material ------------------------------------------------------------P8/P9 Installation and Size --------------------------------------------------------------- P10 Wiring diagram ---------------------------------------------------------------------- P11 Maintenance, warning and w... -
Page 3: Introduction
LED Strobe Laser Light User Manual http://www.sparklaser.com Introduction Thank you for purchasing this product. To optimize the performance of this product,prior to use,please read these operating instructions carefully to familiarise yourself with the basic operation of this unit.Please keep the manual in safe price for future reference. This unit has been tested at our factory before being shipped to you, there is no assembly required. -
Page 4: Silkscreen On Light
LED Strobe Laser Light User Manual http://www.sparklaser.com Silkscreen on light ------------------------------------------------------------------------------- CE compliant ----------------------------------------------------------------------------- Only indoor use -------------------------------------------------------------------------- RoHS Certificate ---------------------------T he minimum distance from lighted objects(meter) ---------------------------------------------------------------- Max. Ambient Temp ------------------------------------------------------- Max. Housing Temp -------------------------------------------------------------------------- Safety caution ------------------------------------------------------------------------- Careful burns ----------------------------------------------------------------- Careful electric shock ----... - Page 5 LED Strobe Laser Light User Manual http://www.sparklaser.com 一.Safety Instructions Please open and check whether break or not for transport once receive this fixture, if yes, not use it and contact dealer or manufacture as soon as possible. The Max applicable temperature for the light is 40°C. Do not use the light under or above the temperature.
-
Page 6: Menu Operation, Function
LED Strobe Laser Light User Manual http://www.sparklaser.com 12. Inner Packing(mm):340*270*340 13. Outer Packing(mm):700*560*370 (4pcs) 四、 LED Digital Display A．（MENU） B．（UP） C．（DOWN） D．（ENTER） E．LED Display Operating Instruction: press button marked as “A” to select a function, For details, please see the “OPERATION MENU” section. Press button marked as “B” or button marked as “C” to modify values . - Page 7 LED Strobe Laser Light User Manual http://www.sparklaser.com 五、Function： 1. Press MENU to select Addr / Chnd/NAnu/ SHOU /CoLo/SPEE/ Auto/Soun / Version , Press ENTER to the next menu or save, Press UP / DOWN to select function, Press ENTER to save; Long Press MENU to exit.
-
Page 8: Spl-Rg
LED Strobe Laser Light User Manual http://www.sparklaser.com 135-255 White LED chase effect 0-127 White Strobe and no strobe, but White LED chase speed Eotic Speed from slow to fast 128-255 With strobe, white LED chase speed from slow to fast Laser color Laser off control... -
Page 9: Address Setting
LED Strobe Laser Light User Manual http://www.sparklaser.com 10CH for example （address 001） （address 011） （address021） First Second Third DMX in DMX out to next light 八、DMX address setting Each fixture must set a specific starting address. When receiving signal transmission, fixture will receive channel control signals which from the starting address. -
Page 10: Structure And Material
LED Strobe Laser Light User Manual http://www.sparklaser.com 九、 Structure and material - - 9 - -... - Page 11 LED Strobe Laser Light User Manual http://www.sparklaser.com quantit Material No Model No. Name SPL-RG-301-04 Base plate 311003111 SPL-RG-301-05 Top cover 311006073 SPL-RG-301-03 Back plate 311002074 SPL-RG-301-02 Front plate 311001100 SPL-RG-301-06 Clapboard 311020001 SPL-RG-301-07 Handle 316001088 SPL-RG-301-09 Head cover 311012014 SPL-RG-301-08 Motor stand 1 313001058 SPL-RG-301-10...
-
Page 12: Handle
LED Strobe Laser Light User Manual http://www.sparklaser.com 十、Installation 1 Clamp 2 Handle When install this equipment please make sure there's no flammable surfaces (decorated things, etc) within at least 2.5M and maintain minimum distance of 0.5M from the equipment to the walls. Please make sure that there's no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe. -
Page 13: Wiring Diagram
LED Strobe Laser Light User Manual http://www.sparklaser.com 十二、Wiring diagram - - 12 - -... -
Page 14: Arranty Card
LED Strobe Laser Light User Manual http://www.sparklaser.com Declaration Cleaning and maintenance Cleaning should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror. CAUTION Cut off power before cleaning and maintenance! Attention Do not see directly light source when open the light, and make sure power off before do any...
