CloudTV Box

User Manual

WSTA-666

Please read this before the installation

Table of Contents

Need help?

Do you have a question about the WSTA-666 and is the answer not in the manual?

Questions and answers

Summary of Contents for GigaFu WSTA-666

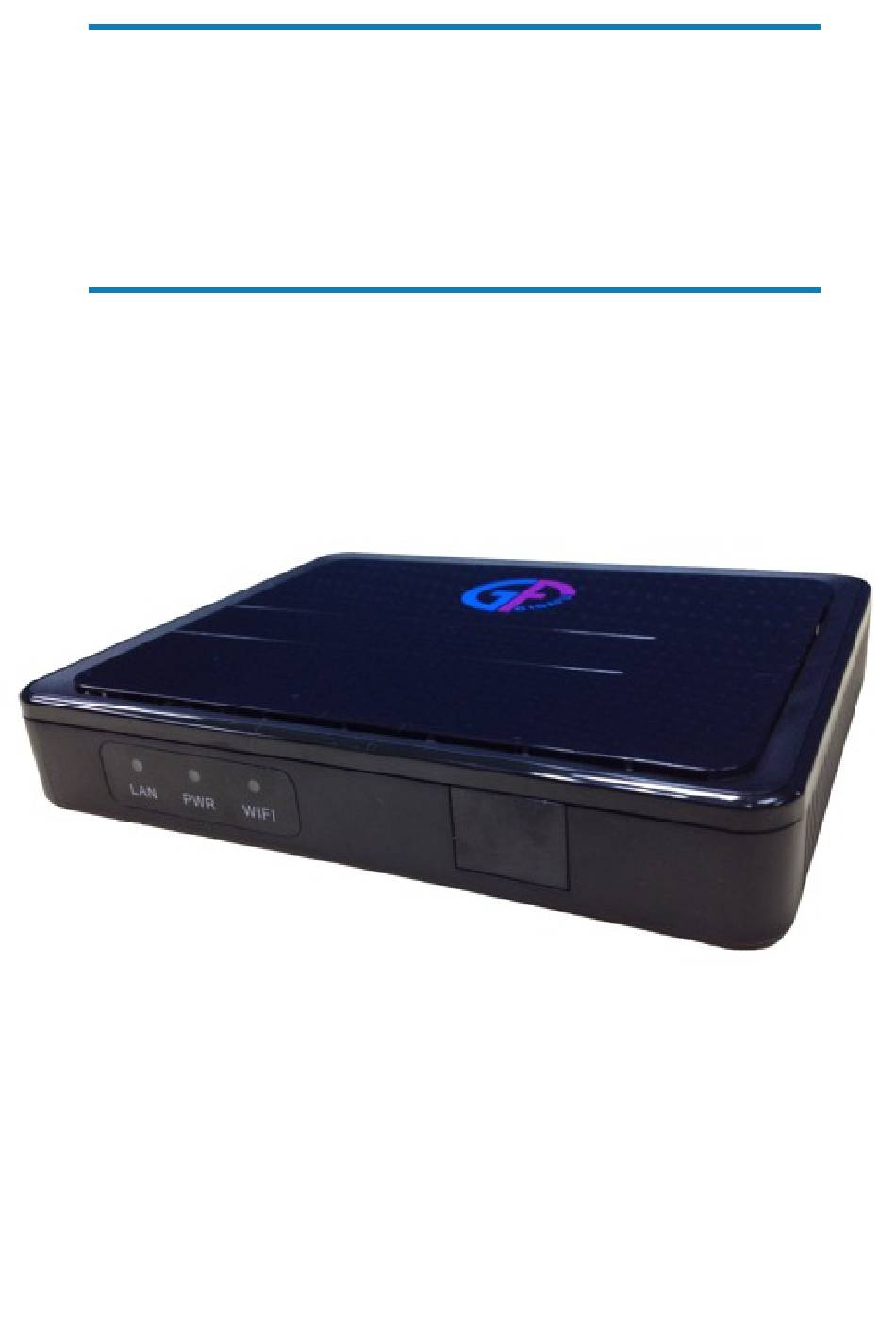

Page 1 CloudTV Box User Manual WSTA-666 Please read this before the installation...
Page 3: Table Of Contents
Index Caution and Safety Packing List Input / Output fRont Back How to Install Remote Control How to Use Turn on other accessaries Homepage desktop Setting Date and Time List of APP in background status and notiﬁcation Internet Built-in Software Browser Email Gallery...
Page 4: Caution And Safety
Caution and Safety ＊Please read this user manual carefully before using CloudTV Box • Do not open the cover of CloudTV Box, it may cause some damages. • Please keep CloudTV Box at a ventilated place and avoid sun exposure. •...
Page 5 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 6: Packing List
Packing List 1. CloudTV Box 2.Remote Control 3.Adaptor 4.HDMI Cable 5.RCA Cable 6.User Manual 7.Battery(AAA) x 2...
Page 7: Input / Output
Input / Output FRONT 1. Ethernet: ON / OFF 2.Power: ON / OFF 3.WI-FI: ON / OFF 4.IR sensor BACK 1. Ethernet Port! ! 5.USB Port 2. Right Sound Channel ! 6.USB Port 3. Left Sound Channel! 7.HDMI Output 4. Video Output! 8.DC port...
Page 8: How To Install
How to Install Power Ethernet TV / Monitor...
Page 9: Remote Control
Remote Control 1. Home 2. Direction: UP 3. Confirm/Left Mouse Button 4. Confirm/Left Mouse Button 5. Direction: Left 6. Mute 7. Direction: Down 8. No define 9. No Define 10. Number Area 11. No define 12. Power 13. Right Mouse Button 14.
Page 10: Other Accessaries
How to Use Thanks for using GigaFu CloudTV Box, before using CloudTV Box, please read this manual carefully. TURN ON 1.Please connect the cable (RCA or HDMI cable) to CloudTV Box and your TV, Projector or LCD Monitor. 2.Please plug the power.
Page 11: Home
HOMEPAGE After warming up, CloudTV Box will directly go to Homepage. In Homepage, we set some common App for you. 1.You can go to desktop and select other App. 2.Gallery 3.Movie Player 4.Music Player 5.File Manager 6.Browser 7.Setup...
Page 12: Desktop
DESKTOP In CloudTV Box, we pre-install some convenient software for you, including Movie, Music, Browser, Mail and lots of common and useful tools. Besides these App, you can also install App by yourself. Please refer to chapter ”Application Installation”. 1.Back to previous page or leave the App. 2.Back to Desktop.
Page 13: Setting Date And Time
SETTING DATE AND TIME Before starting using CLoudTV Box, you can setup the Correct Date and Time In “Setting”, select “Date & time”, and than select “Select time zone”, and than choose your location’s time zone. If you choose “Automatic date & time”, and your CloudTV Box connected to the internet, CloudTV Box can get the right time on through the internet.
Page 14: List Of App In Background
LIST OF APP IN BACKGROUND After selecting the “List of App in Background”, it will shows the Apps that you used recently. These Apps are not be closed, but work in background. By selecting the App you can keep using your App. If you really want to show down these App and not working in background, you just need to pull the App out of the “List of App in Background”.
Page 15 STATUS AND NOTIFICATION The “Status and notification area” is in the lower right corner. Here can shows the basic information about the CloudTV Box. EX. Time, Internet Status, USB connection Status. If you select this area, it can shows more detail information for you. You can also select “Setting”...
Page 16: Internet
INTERNET CloudTV Box can connect to internet through Wifi or Ethernet. Wifi connection 1. Select “Setting” in Homepage or Desktop. 2. Select “Wi-Fi” in “Wireless & Networks”, and turn Switch to “ON” in the upper right corner. 3. Choose the Wi-Fi SSID that you want to connected to. You can select “scan” on the upper right corner to re-search the available Wireless signal.
Page 17 5. About the other detail Wi-Fi setting information, please ask your Network management or Internet provider. Ethernet Connection 1. Plug the ethernet cable to your CloudTV Box ethernet port. If your Network support DHCP, CloudTV Box can automatically obtain the IP and connected to the internet.
Page 18: Built-In Software
BUILT-IN SOFTWARE Browser Select the “Browser” on the Desktop, you can start to use the browser APP. In “Browser”, you can surf the internet, shopping, chatting or read the newest information in the internet. You can also select the on the upper right corner to do more setting.
Page 19 You can select to enter the “Bookmark” page. YOu can add your favorite Websites into the the “Bookmark”, this can help you to save some time for searching your website.
Page 20: Email
Email Select the “Email” on the Desktop. You can login your E-mail account in “Email” App and rend, send mail via CloudTV Box. 1. You need to setup your account before you use “Email”. 2. Key-in your E-mail address and password. Select “Next”, “Email” App will help you to setup your mail account automatically.
Page 21 3. After all the setting, you can start to use your “Email” App. 4. If “Email” App can not help you to setup your e-mail account, you can choose the “Manual setup” in Step (2.). For more setup information, please ask your Internet Management or refer to your e-mail account information.
Page 22: Gallery
Gallery If you want to view or share your photo in your memory card or Flash Drive, please select the “Gallery” on the Desktop. Select the location that your photo data is. According your data location, select the photo that you want to display.
Page 23: Movie Player
Movie Player If you want to play your movie or video in your hard disk or memory card via CloudTV box, please select “Movie Player” Find the video in your hard disk or memory card, and play it!
Page 24: Music Player
Music Player If you want to play you music file, select the “Music Player” on the Desktop. According to the location you put the music file, find the music that you want to play.
Page 25 Select the file that you want to play, and enjoy your music.
Page 26: Application Installation
Application Installation Beside the build-in App, you can also download or purchase App on the internet. Before installation, please download the App (.apk file) that you want and put it into the USB flash drive in advance. Insert the USB flash drive into the USB port on CloudTV Box.
Page 27 The system will determine and list the files (.apk file) that can be installed. Select the App that you want to install, and it will go to the installation confirmation page. Select “Install” then you can start the installation.
Page 28 After this, CloudTV Box will put your App on the Desktop. Select your App, and you can start to use it. Please keep in mind that, not every App is free, Also, beware of the Intelligence Property Rights, do not install any App that you don’t have the rights to use it. If the system crash or hardware damage by installing unsolicited App, you may lose your warranty.
Page 29: Product Spec
Product Spec System System Android4.0 Flash 4GB NAND Flash Memory 1GB DDR3 USB mouse, keyboard, IR remote control Storage Support USB Flash Drive and HD Internet Protocol Internet Protocol IP Protocal TCP/UDP/IP Internet Protocol PPPoE，DHCP，Static IP Video Decode Video Decode ●H264 MP，HP@ level 4.1 ●MPEG1，MPEG2 MP@HL Decode...
Page 30 CloudTV Box is on or not. If the LED is on, please check the RCA cable or HDMI cable is proper connected between your CloudTV Box and your TV. If all teses step can’t help you solve the problem, please contact GigaFu, we will try our best to help you.
Page 31 What if my CloudTV Box broken? A：! GigaFu provide you one year non-human damage warranty. If your CloudTV is not broken by human damage, please contact us, we will help you to fix or replace the product. If you over the warranty period or CloudTV Box is damaged by human cause, we may have to charge for the repair cost.
Page 32 兆福科技造福全世界 GigaFu Technology Inc. Tel: 03-5985007 Mail: gigafu2012@gmail.com...
