Summary of Contents for Imbrium Stormceptor EF

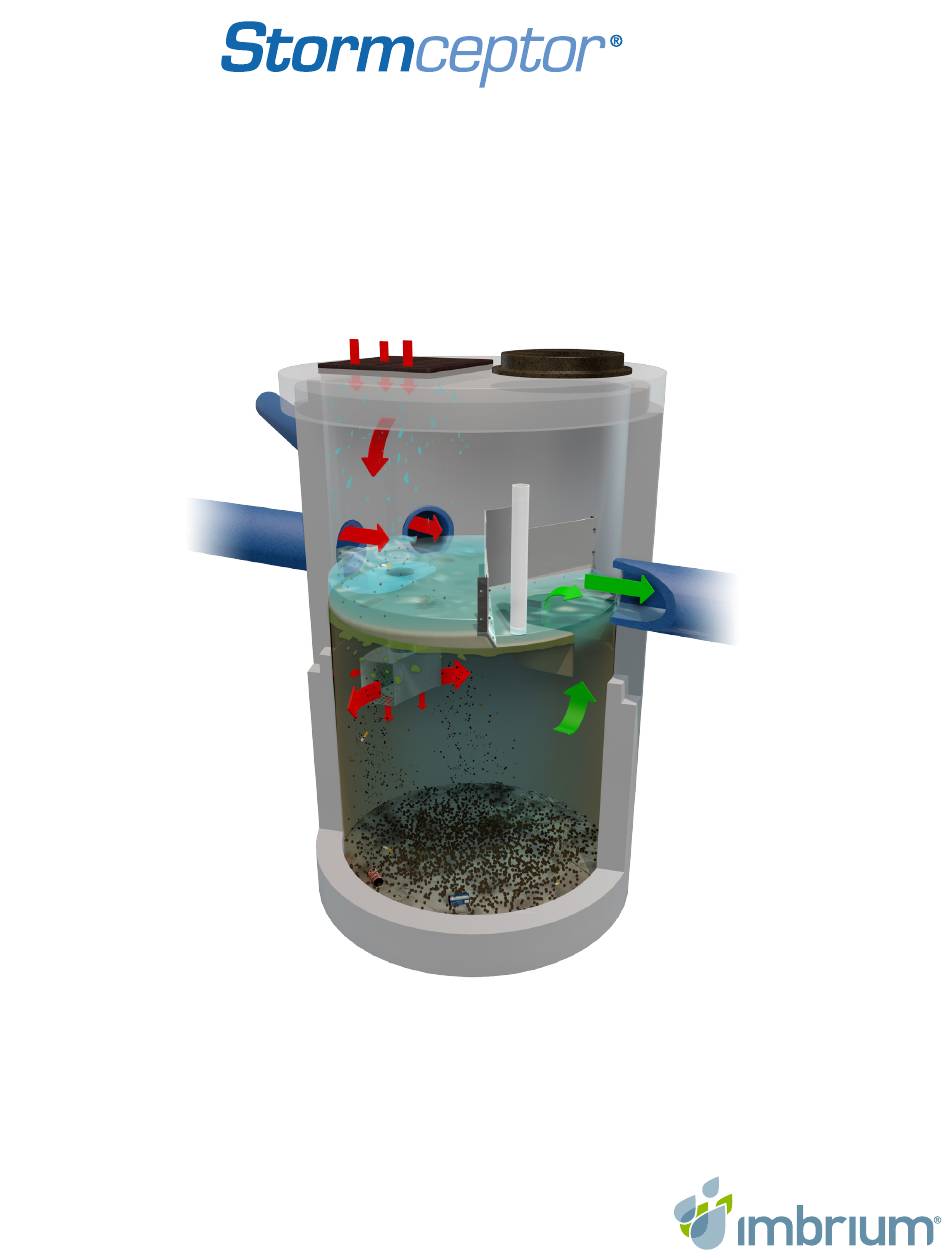

- Page 1 Owner's Manual...
- Page 2 STORMCEPTOR EF IS PATENT-PENDING. ® TABLE OF CONTENTS • STORMCEPTOR EF OVERVIEW • STORMCEPTOR EF OPERATION AND COMPONENTS • STORMCEPTOR EF MODEL DETAILS • STORMCEPTOR EF IDENTIFICATION • STORMCEPTOR EF INSPECTION AND MAINTENANCE • STORMCEPTOR CONTACTS Stormceptor EF Owner's Manual...
-
Page 3: Operation
Stormceptor EF offers design flexibility in one simplified platform, accepting stormwater flow from a single inlet pipe, multiple inlet pipes, and/or from the surface through an inlet grate. Stormceptor EF can also serve as a junction structure, accommodate a 90-degree inlet to outlet bend angle, and be modified to ensure performance in submerged conditions. - Page 4 ACCESS COVER WEIR INLET PIPE OUTLET PIPE DROP PIPE INSERT OIL INSPECTION Figure 1 PIPE OUTLET PIPE WEIR OUTLET RISER INLET PIPE OUTLET RISER VANE INSERT DROP PIPE DUCT Figure 2 Stormceptor EF Owner's Manual ®...
- Page 5 Outlet riser vane – prevents formation of a vortex in the outlet riser during high flow rate conditions • Oil inspection pipe – primary access for measuring oil depth, and oil removal IDENTIFICATION Each Stormceptor EF/EFO unit is easily identifiable by the trade name Stormceptor embossed on the access cover at ®...
-
Page 6: Model Details
MODEL DETAILS TABLE 1. METRIC DIMENSIONS AND CAPACITIES Minimum Depth Maximum Hydrocarbon Peak Inside Surface to Below Sediment Flow Rate Storage Conveyance Stormceptor Diameter Outlet Invert Outlet Volume Capacity into Lower Capacity Flow Rate Model Depth Pipe Invert Chamber (mm) (mm) (L/s) (L/s) -
Page 7: Inspection And Maintenance
INSPECTION AND MAINTENANCE It is important to perform regular inspection and maintenance. Regular inspection and maintenance ensures maximum operation efficiency, keeps maintenance costs low, and provides continued protection of natural waterways. Quick Reference • Typical inspection and maintenance is performed from grade •... - Page 8 When is maintenance cleaning needed? • If the post-construction inspection indicates presence of construction sediment of a depth greater than a few inches, maintenance is recommended at that time. For optimum performance and normal operation the unit should be cleaned out once the sediment depth reaches the recommended maintenance sediment depth, see Table 3.
-
Page 9: Maintenance Procedures
What conditions can compromise Stormceptor performance? • Presence of construction sediment and debris in the unit prior to activation • Excessive sediment depth beyond the recommended maintenance depth • Oil spill in excess of the oil storage capacity • Clogging or restriction of the drop pipe inlet opening with debris •... - Page 10 • When maintenance is required, a standard vacuum truck is used to remove the pollutants from the lower chamber of the unit through the Outlet Riser (see Figure 7). Figure 7 • The Outlet Riser Vane is durable and flexible and designed to allow maintenance activities with minimal, if any, interference (see Figure 8).
-
Page 11: Replacement Parts
Stormceptor is often installed on high pollutant load hotspot sites with vehicular traffic where hydrocarbon spill potential exists. Should a spill occur, or presence of oil be identified within a Stormceptor EF/EFO, the unit should be cleaned immediately by a licensed liquid waste hauler. -
Page 12: Maintenance
COMMENTS DEPTH (inches or mm) PERFORMED PROVIDER (Y/N) Other Comments: _____________________________________________________________________ CONTACT INFORMATION Questions regarding Stormceptor EF/EFO can be addressed by contacting your local Stormceptor representative. Imbrium Systems Inc. 1-416-960-9900 / 1-800-565-4801 / 888-279-8826 www.imbriumsystems.com www.stormceptor.com info@imbriumsystems.com STC EF_OM_9/17 Stormceptor EF Owner's Manual ®...
