Summary of Contents for digiO2 ECG-10X

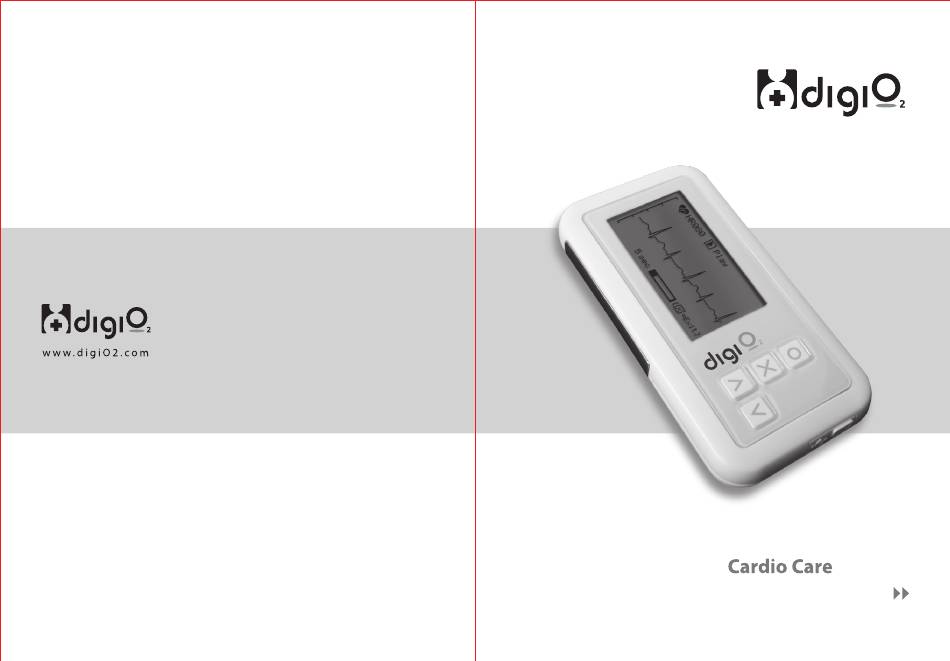

- Page 1 ECG/EKG Recorder...
-
Page 2: Table Of Contents
Package Content and Know Your Unit Package Content Main Unit Battery Replacement Getting Started The LCM Display Introduction Operating Instructions Power on/off Measurement Historical Record ．Review Measurement Record ．Delete Record Setting ．Date and Time ．Alarm ．Bluetooth Bluetooth: (Upload record to PC/server) : (Upload record to PC/server) Important Safety Note Maintenance and Storage... -
Page 3: Package Content And Know Your Unit
Package Content and Know Your Unit Getting Started Package Content The LCM Display Bluetooth Low Battery Indicator Alarm Instruction Manual AAA Batteries Cardio Care Unit Protective Pouch Main Unit Introduction The Principle of ECG/EKG Power Human heart is able to beat as the electrical impulse passes across and Up\Increase Right through it, and the beat accompanies producing electric activity. -
Page 4: Operating Instructions
Operating Instructions Power on / off C. Press and it will start measuring with a beep sound after 5 seconds. Press to turn on / off Cardio Care. Place the unit with the back end electrode against the spot slightly After the welcome message, You will below your chest, The measurement will stop after 30 seconds of enter main menu automatically, where... -
Page 5: Historical Record
Important Notes on Taking Measurement Historical Record Historical record page can be accessed directly after measurement or through In order to obtain an accurate ECG/EKG reading, it is important that Menu selection. measurement is taken correctly. Before taking measurement for the first time, read these instructions carefully and make sure you observe the following points each time you take measurement. -
Page 6: Delete Record
．Delete Record Setting Setting page can be accessed directly (A) Delete All Record through Menu selection. Please go to the historical record page, then press and hold key for 2 seconds to delete all record stored in this unit. (B) Delete Single Record Press and hold key for 2 seconds to delete while playing the &... -
Page 7: Bluetooth
．Bluetooth (A) Turn ON/OFF 1. Download “My Cardio Care” Please download and install ”My Cardio Care“ from our website http://www.digio2.com before uploading record to PC/server. Go to http://www.digio2.com -> Press “Download” -> Press “Healthcare Device” -> Press ”My Cardio Care”... - Page 8 The screen will show “ Upload to Server?” 1. Download “My Cardio Care” Please download and install ”My Cardio Care“ from our website http://www.digio2.com before uploading record to PC/server. Go to http://www.digiO2.com -> Press “Download” -> Press “Healthcare Device”...
-
Page 9: Important Safety Note
<NOTE> 3. Connect Mini USB cable If user connect the ECG with PC by USB cable, the ECG will not has measurement function, and user can only transfer the data to PC. ．Prepare one Mini USB cable ．Please connect Mini USB/USB cable to Cardio Care. Important Safety Note Safety Labels Used in this Manual "... -
Page 10: Maintenance And Storage
．Do not disassemble the unit. Repairs should only be carried out by digiO2 authorized personnel. ．Do not use this product in combination with non IEC/EN 60601-1 approved computers/adaptors. -
Page 11: Troubleshooting
Relax and repeat the Model No: ECG-10X Power: Battery AAAx2 3Vdc measurement. Manufacturer: digiO2 International Co., Ltd. 4F-13, No. 79, Sec. 1, Hsin Tai Wu Rd., Hsi-Chih, Taipei Hsien 221, Taiwan FCC ID : X58-ECG10X Electrode contact was Make sure that your... -
Page 12: Specifications
Specifications ECG/EKG Specifications ECG-10X Power Supply 1.5V AAA Battery*2 Standard Sensitivity 10mm/mV ohms Input Impedance >10M Input Dynamic Range + / - 2mV Bandwidth 0.005 ~ 40 Hz CMRR > 95 dB AD Conversion 12 bits Sampling Frequency 256 samples/sec Measurement Time 30 sec. - Page 13 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ECG-10X wireless system configuration and operation: 1. Quality of service: BQB test 2. Security requirements: Key in Pin code "0000". 3. If users paired with PC was unsuccessful, the data was not shown it on the LCM.
