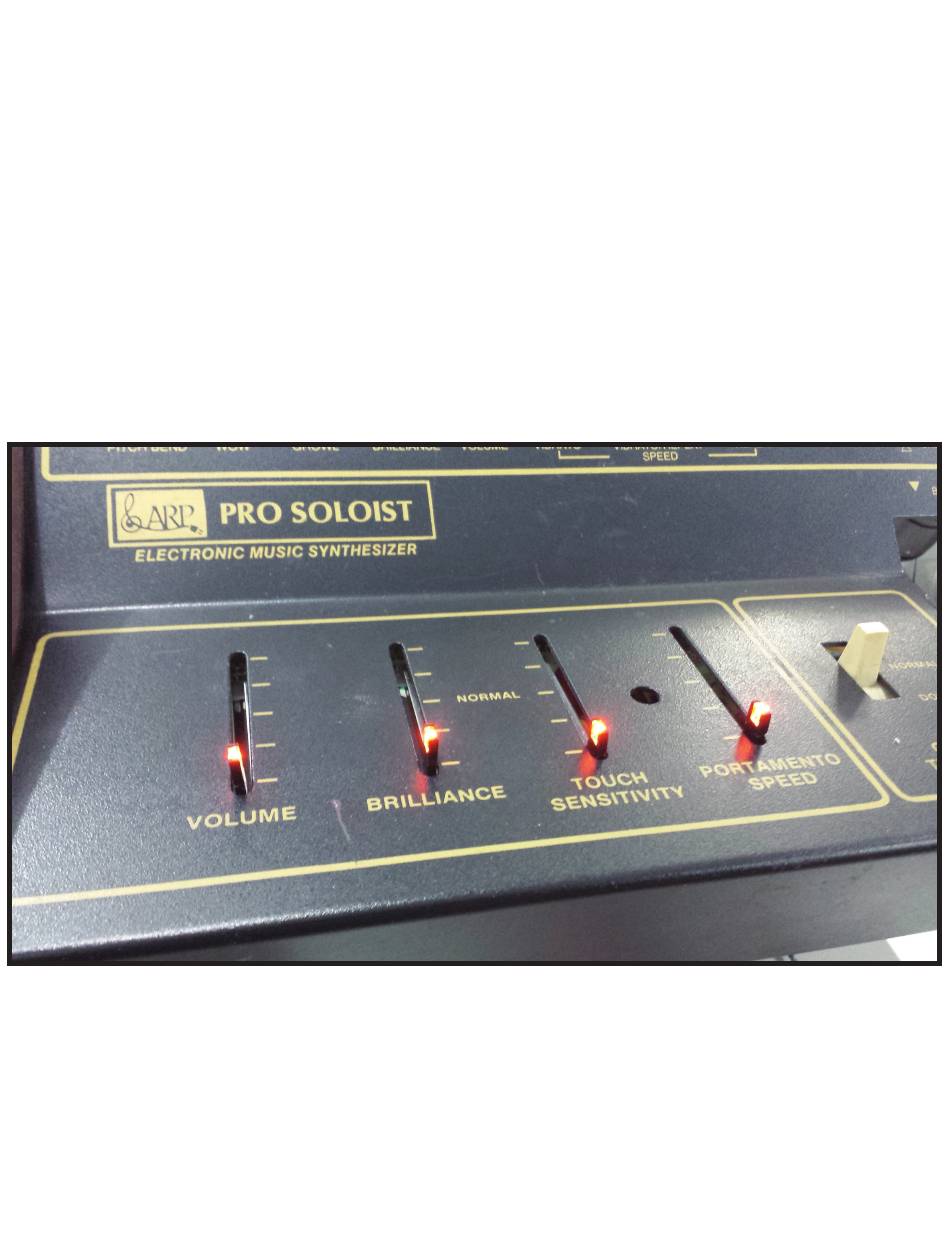

- Page 1 ARP Pro Soloist & Pro DGXLED Slider Installation Manual...
- Page 2 Thank you for purchasing an LED slider upgrade kit for your ARP synthesizer. These sliders not only look great, but they feel better than the original ARP CTS sliders. This installation guide will show you how to install the slider kit and the 5 volt power supply.
- Page 3 • Desoldering Tool (Such as Hakko 808 or Similar) Installation of Sliders 1) Remove all slider caps from the ARP, then remove all PCBs from chassis. Desolder all old CTS sliders and remove them from the boards. Always be sure not to damage PCB traces when doing this.
- Page 4 PCB, as shown in Figure 2. Figure 2 - Slider Wiring Assembly Completed. (Sliders still just loosely placed into PCB. ARP Omni 2 shown) 4) Using elastic bands, clips or other means, hold the sliders into place so the PCB can be flipped over for soldering.
- Page 5 Figure 3 - Sliders Assembly Tack Soldered (Each slider soldered in place by only one pin) dicular to the pcb and the slider PCB is parallel with the ARP PCB. Notice that the sliders can easily be moved into alignment by gently moiving them or heating up the tack solder joint.
- Page 6 Figure 4 - Slider Assemblies Wired Into PCBs (All sliders aligned. ARP OMNI 2 shown) for brightness adjustment of each LED. Using a preferably non conductive jewelers screw driver, adjust the LED brightness for each slider. If using custom colors, be sure to cut the legs of the enclosed LEDs to the same length as the legs of the LEDs that came mounted in the sliders.
- Page 7 Figure 5 - Slider Assembly Powered. (LED brightness being adjusted on each slider)
