ALTER EGO Sidekick FAT 500 User Manual

Please make sure you read this manual carefully before you ride. If you doubt any information
inside this manual, please contact us immediately.

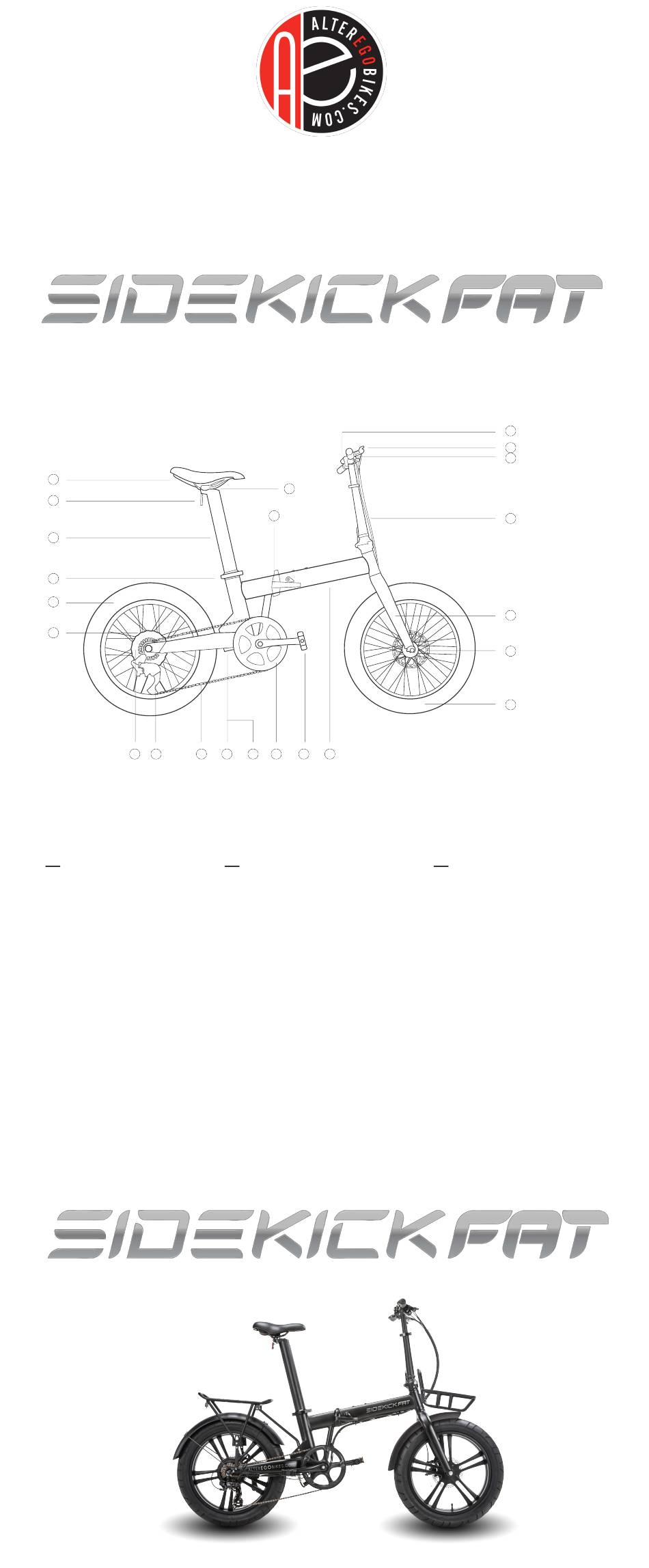

Meet your Ebike
1
2
3
4
5
6
7 23
Parameters
Model: Sidekick FAT 500
Size: 1660*640*1180mm
Folded size: 900*550*750mm
Wheel base: 1100mm
Net weight: 28.5kg
Range: Up to 60km
Max. load: 150kg
Max. speed: 32km/h
Charging time: Approx. 5 Hrs
Battery type: Samsung Lithium-ion
Battery capacity: 48V 10.4Ah
Noise : ≤ 62 dB(A)

USER MANUAL

21
22
8 9 10 11 12
Motor : MXUS 500W brushless geared DC motor
Rated output power: 500W
Motor efficiency: ≥78%
Rated RPM: 310±10r/min
Rated voltage: 48V
Max torque: 60N.m
Overcurrent protection: 15±1A
Low-voltage protection: 30±1V
Kwh: ≤1.2Kw.h
iPAS Modes: 5 levels
Tire diameter: 20 inch
Frame: 20 inch 6061 Al-Alloy (foldable)
Front fork: 20 inch 6061 Al-Alloy
13
Brakes: 160mm disc brakes
Rim: 20 inch Al-Alloy 12G36H
Tire: Kenda 20" x 4" All Terrain
Chain wheel: Prowheel 52T
Free wheel: Shimano 14-28T
Derailleur: Shimano 7 speed
Chain: KMC
Handle bar: Promax
Display: Kunteng LCD
Controller: Kunteng sine wave FOC
Brake levers: Al-Alloy e-bike lever
Saddle: KNUS
Pedal: Foldable
20
1 saddle
2 rear reflector
19
18
3 seatpost battery
4 seatpost clamp
5 rear wheel
6 rear disc brake
17
7 motor
8 chain
9 controller
10 power interface
11 chain wheel
12 folding pedal
13 frame
16
14 front wheel
15 front disc brake
16 front fork
15
17 folding head stem
18 handlebar
19 brake lever
14
20 LCD display
21 charging port
22 folder
23 deraillew
