Summary of Contents for Telcosat RBB 850

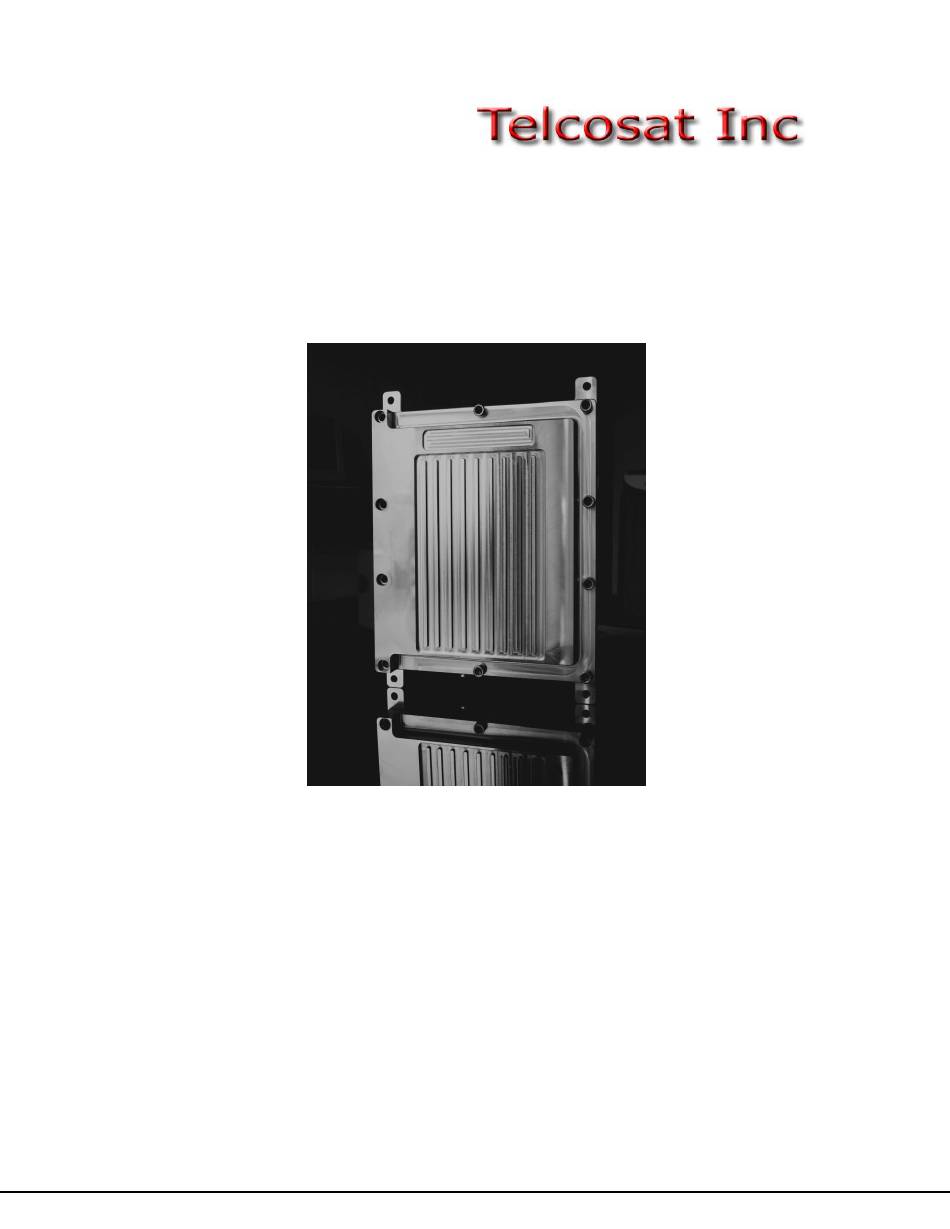

- Page 1 OPERATION & MAINTENANCE MANUAL CELLULAR CDMA/GSM/WCDMA REPEATER MODEL RBB 850 Any modifications to this device will void FCC and IC approvals. Document use is restricted to that described on the cover...
- Page 2 TELCOSAT RPT 900 BLANK PAGE Document use is restricted to that described on cover...
- Page 3 This document is an operation and maintenance manual. No disclosure or reproduction of the information or drawings shall be made of any other purpose without the prior written consent of Telcosat Inc. Use of the information contained herein to fabricate or assemble any item in whole or in part is expressly prohibited.
-
Page 4: Safety Summary
TELCOSAT RPT 900 SAFETY SUMMARY High voltage is used in the operation of this equipment. Death on contact may result if personnel fail to observe the following safety precautions: Only qualified trained personnel can install this equipment. Electrical connection and installation must meet your local Electrical Safety Installation codes. -
Page 5: Table Of Contents
TELCOSAT RPT 900 TABLE OF CONTENTS SAFETY SUMMARY----------------------------------------------------------------------------------------------------------- Page 4 FIRST AID------------------------------------------------------------------------------------------------------------------------Page 4 TABLE OF CONTENTS--------------------------------------------------------------------------------------------------------Page 5 CHAPTER 1 1.1 GENERAL Page e 1.2 INTRODUCTION Page 6 1.2.1. MATERIALS Page 6 1.2.2 RPT 900 APPLICATIONS Page 6 1.3 RPT 900 SPECIFICATIONS... - Page 6 TELCOSAT RPT 900 3.6 POWER AND ATTENUATOR SWITCH SETTINGS Page 14 3.7 RSSI INDICATOR AND SIGNAL LEVELS Page 14 3.8 ALIGNING YOUR ANTENNA Page 14 3.9 ADJUSTING UPLINK POWER Page 15 WARRANTY REPAIR CHAPTER 4 Page 16 4.1 WARRANTY Page 16 4.2 LIMITED WARRANTY...
-
Page 7: General
Appendix A contains FCC/IC RF Exposure Requirements and RBB850 repeater specifications. Appendix B contains the return goods procedure. 1.2 INTRODUCTION The TELCOSAT RBB 850 is a bidirectional amplifier system consisting of UPLINK and DOWNLINK amplifiers. When conventional cellular communication systems cannot penetrate a structure, or reach a target area, such as inside buildings, parking structures, tunnels and remote areas, other methods and or equipment are required. -
Page 8: Materials
TELCOSAT RPT 900 1.2.1 Materials The RBB 850 Repeater is enclosed in a weather proof enclosure. System comes with instruction manual and attached power cord. Fig. 1-1 Typical TELCOSAT INC remote location Site System Fig. 1-1 TELCOSAT INC Remote Location Site Configuration... -
Page 9: Operational Overview
The Up-link process is the same as the Down-Link process. 2.2 OSCILLATION DETECTION The RBB 850 has an oscillation detection function. Upon detection of oscillation the repeater will shut down for a short duration, approximately 25 seconds. After 25 seconds the repeater will restart, reduce the RF gain and determine if the repeater is stable. -
Page 10: Ac Power Distribution
TELCOSAT RPT 900 2.3 AC POWER DISTRIBUTION AC input power via a power cord which feeds a power supply that converts the AC to DC low voltage. The DC power provides all the necessary requirements for the active components. The repeater is equipped with a red LED power on light. -
Page 11: Tools Required
TELCOSAT RPT 900 If you require any additional installation guidelines then please consult your supplier or consult with an RF Systems Engineer. 3.2 TOOLS REQUIRED Spectrum analyzer with a tracking generator, frequency ranges 1 Gigahertz. Optional Signal Generator for onsite testing of the repeater, frequency range of 1 Gigahertz minimum. - Page 12 TELCOSAT RPT 900 All coax connectors must be water tight and wrapped with water proof tape. Any moisture in the connectors will degrade or eliminate the signals. ANTENNA CONNECTIONS ON THE RBB850 Connect the antenna that is aimed at the Cell Tower to the bottom left side N connector.
- Page 13 TELCOSAT RPT 900 CHAPTER 4 CONNECTING THE RBB850 REPEATER TO A COMPUTER OR NETWORK 4.1 The default IP address of the Repeater IP 192.168.1.100 NETWORK MASK 255.255.255.0 To connect your computer to the repeater you need to configure your network card in your computer to the following IP IP 192.168.1.99...
- Page 14 TELCOSAT RPT 900 REPEATER STATUS PAGE 4. 3 The “Status Page” is a summary of current settings of the repeater. This page is only a status page. No repeater adjustments can be performed from this screen. When the repeater is remotely accessed using the Monitoring Mode, this page is displayed.
- Page 15 TELCOSAT RPT 900 REPEATER SET UP PAGE The Repeater Set-up Page is where all adjustments/settings are performed. Enter the required setting in the box and then click the “Save Settings” box. You can verify the setting by reviewing the “Status Page”...
- Page 16 TELCOSAT RPT 900 Add another 5mA to each value, 91+5= 96mA Forward Link 85+5=90mA Reverse Link The new values can be inserted into the Threshold Alarm settings DC current High alarm Forward Link set to 96mA DC current High alarm Reverse Link set to 90mA In the event that the current reaches this alarm setting, an email will be sent, sudden high current could indicate a possible problem.
- Page 17 TELCOSAT RPT 900 ALARM SET-UP PAGE This page allows the user to configure the email settings for the alarm recipient. This page allows the user to enable or disable the Send Alarm Email. After entering the information the user must click the Saves Settings box.
- Page 18 TELCOSAT RPT 900 LOCAL NETWORK SETUP 4.10 The local network set-up screen allows the user to modify the network setup. Enter the new information into each box and click the Save Settings box. Verify the settings in the System Status page.
- Page 19 TELCOSAT RPT 900 4.12 PASSWORD SETUP AND REPEATER LOCATION SCREEN Administration Password Type in your new password in the Administration box. You will be required to retype your password to ensure accuracy. It is recommended that you use minimum of 12 characters, letter number mix for security.
- Page 20 TELCOSAT RPT 900 ADJUSTING UP-LINK TRANSMIT POWER TO CELLULAR TOWER Adjusting RF Transmit Levels 4.14 After installing your repeater system you will need adjust the RF transmit levels for the Forward Link and the Reverse Link. Power up the repeater, log into the GUI interface. Go to the Repeater Set up Page. Adjust the gain to zero on the Forward Link Gain and the Reverse Link Gain.
- Page 21 Restrictions. This warranty does not apply if the Product or any other equipment upon which the Product is authorized to be used (a) has been altered, except by Telcosat Inc, (b) has not been installed, Document use is restricted to that described on cover...
- Page 22 TELCOSAT RPT 900 operated, repaired, or maintained in accordance with instructions supplied by Telcosat Inc, (c) has been subjected to abnormal physical or electrical stress, misuse, negligence, accidents forces of nature, earthquakes, lightning strikes, vandalism, and civil unrest. 5.3 Storage of Equipment When storing your equipment you must place the unit in a dry location, away from direct sun exposure and take measures to prevent moisture/condensation build up in your repeater enclosure.
- Page 23 TELCOSAT RPT 900 Appendix A Specifications for Telcosat Repeater Model RBB850 Frequency Range: Down link 824-849MHz / Up-link 869-894MHz Overall systems Gain 70dB Band Width 25 Megahertz RF Composite Power +25dBm Noise Level < Less than 5dB RFGain Adjustment 31.5 dB with 0.5dB increments via software...
- Page 24 Any modifications to this device will void FCC and IC approvals APPENDIX B RETURNED GOODS PROCEDURE B1. Technical Information Contact Telcosat Inc or your supplier to determine whether or not an item should be returned for repair. Contact Telcosat Inc 403 291 4031 Email, inquiries@telcosat.com B2. Return Identification Please provide the following information with each repair.
- Page 25 Under normal circumstances defective items will be replaced repaired within 5 working business days of receipt. Telcosat Inc will inspect and test your repeater in a lab environment. Upon completion of the inspection a written estimate will be provided to the client. A minimum charge of $500.00 will be charged to the client to cover the cost of inspection and testing plus minor repairs.
