LIMARK WIFI AP Solution User Manual
Network set up
1

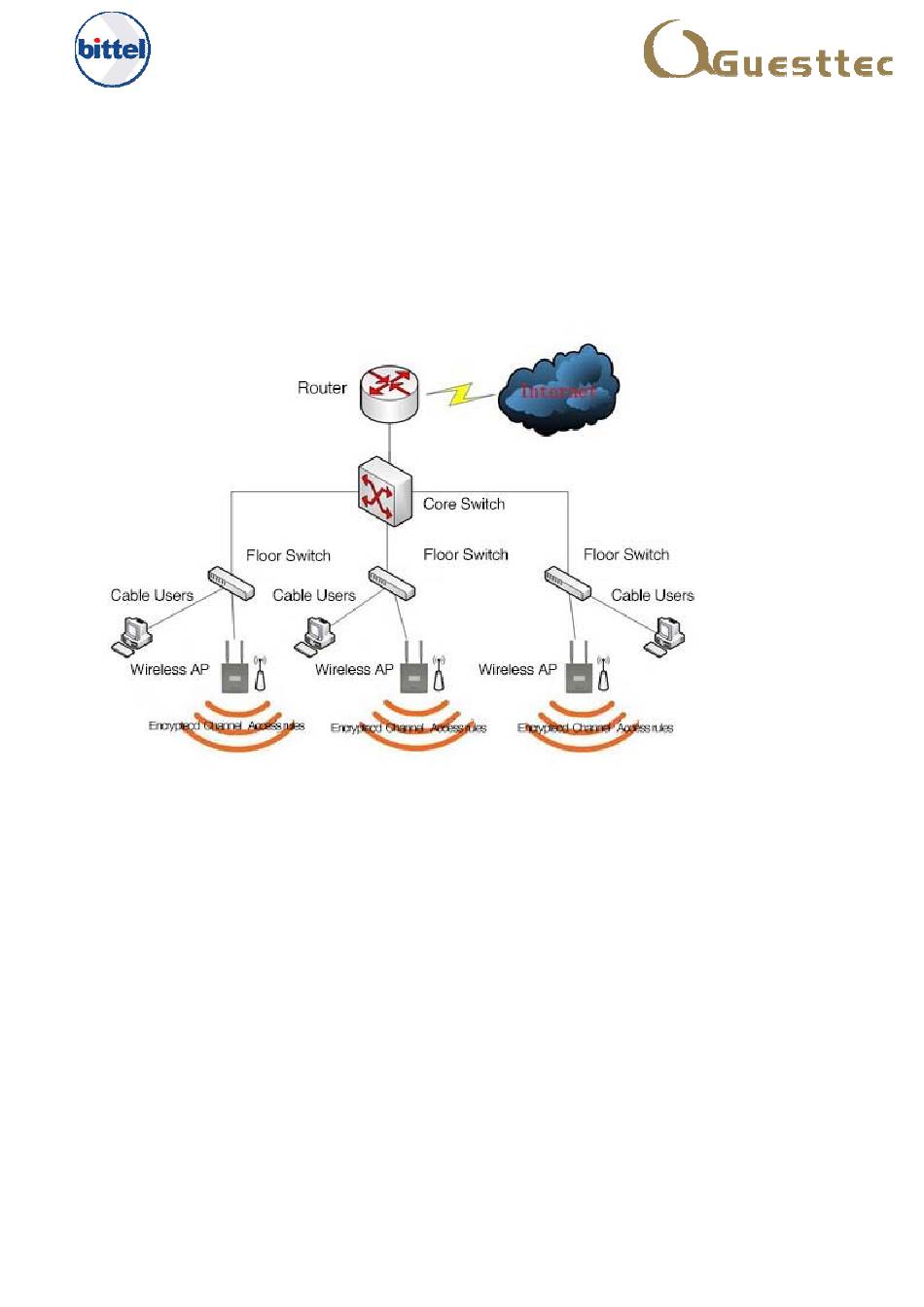

1.1Networkhardwarelinktopology:
Equipment list:Router,Coreswitch,Floorswitches,AP,Rj45
1.2
Cable,POEswitch/POEpoweradapter.
1.3 Router Connection
Firstly,PlugtheRj45cablefromWANtotheWANportoftherouter.
BITTEL LIMARK WIFI AP SOLUTION
Bittel LIMARK WIFI Solution



www.bittelgroup.com/en/

Advertisement

loading
Need help?

Need help?

Do you have a question about the LIMARK WIFI AP Solution and is the answer not in the manual?

Questions and answers

Summary of Contents for Bittel LIMARK WIFI AP Solution

  • Page 1 Bittel LIMARK WIFI Solution LIMARK WIFI AP Solution User Manual  Network set up 1      1.1Networkhardwarelinktopology: Equipment list:Router,Coreswitch,Floorswitches,AP,Rj45 1.2  Cable,POEswitch/POEpoweradapter. 1.3 Router Connection    Firstly,PlugtheRj45cablefromWANtotheWANportoftherouter. BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...
  • Page 2              BittelLIMARKWIFISolution Secondly,plugtheRj45cablefromLANportoftheroutertoanyportof thenon-POEportofthePOEswitch.  Thirdly,  plugtheRj45cablefromtheanyofthenon-PoeportofthePOE switchtotheportmarked”3”intheAC.  Note:Inthisstep,theRj45cableshallbeofCAT6/6Astandard. 1.4 Modify the PC IP address  BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...
  • Page 3              BittelLIMARKWIFISolution Firstly, Use a short pair of Rj45 cable, connect the PC with  Win Xp/7/8 OS to the router LAN port,  Click"Startmenu,controlpanel,networkandInternet,network andsharingcenter".Click"Localconnection"liketheattached screenshot. nthe"localconnection"dialogbox,click Secondly,i "properties". BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...
  • Page 4              BittelLIMARKWIFISolution nthe"localconnectionpropertiesdialogbox" Thirdly,i double-click"InternetProtocolVersion4". BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...
  • Page 5              BittelLIMARKWIFISolution nthe"InternetProtocolVersion4"dialogbox,setthe Fourthly,i IpaddressofthePCinthesamenetworksegmentwiththe router.  Forinstance: StaticIPaddress: IP:192.168.1.200 SubnetMask:255.255.255.0 Gateway:192.168.1.1 DNS:192.168.1.1 Note:Therouterweuseinthetestisof192.168.1.1network segment.  BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...

  • Page 6: Router Configuration

                 BittelLIMARKWIFISolution   OrJustchooseDHCPandAutomaticDNS.   2    Router Configuration  Note:Inthisstep,weusetheroutertoconnecttotheInternetfornormalinternet usageandtest,alsotheroutershallactasvalidIPaddresspoolproviderforvarious networkusers.  TherouterWANsettingshallbecorrectasperdifferentnetworkenvionmentfor normalInternetaccess.  TherouterLANIPaddresspoolsettingshallbevalidandbigenoughforallkindsof usersrequirement.  Forinstance,inthetestweuseFeixinRouter,enterthesettingpagebywebbrowser ofPC.Thedefaultusernameandpasswordis“admin”. Entertheroutersettingpage,choosethecorrectWANsettingfornormalinternet connection.  ThenconfigurateLANIpaddresspoolaccordingtotherequirement.   3      AC Configuration ...
  • Page 7              BittelLIMARKWIFISolution   4.2 Choose Network setting DHCP.      In the DHCP page, choose the DHCP open, the start IP and end IP definestheIPpooladdressofACtobegiventheAPsforusage.Make theconfigurationasperdifferentnetworkenvironment.   BITTEL LIMARK WIFI AP SOLUTION...
  • Page 8              BittelLIMARKWIFISolution 4.3 Open the Information column--Thin AP list: You can see the AP onlinestatus,includingtheMACaddress,IpaddressgiventotheAPs bytheAC.  4.4ChooseRFconfigurecolumn--lightAPtemplates. Note:Inthisinstance,thetemplateshasalreadybeensethere,weset three templates named as LiMark-286-1, LiMark-286-6 and LiMark-286-11，theRFchannelare1、6、11. BITTEL LIMARK WIFI AP SOLUTION...
  • Page 9              BittelLIMARKWIFISolution We have set the basic templates before sending to your side, if the templatesisOk,justchooseandapply;ifitisnotOk,youcanfollowthe stepsof4.4-4.7todothetemplatessettingbyyourself.  4.5ChooseAddNEW,theninputtemplatename,wirelessmodeandRFchannel andotherinformation.Youcanmakethesettingasperyourrequest.  BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...
  • Page 10              BittelLIMARKWIFISolution 4.6 Chooseapply,entertheSecurityProfilesettingpage. Note:LIMARKAPsupportsupto8SSIDbroadcast,inthisinstance,weonlychoose oneSSIDfortesting.  TheLIMARK-286SSIDhasbeenset.  Aftersettingclickapply.  BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...
  • Page 11              BittelLIMARKWIFISolution ClickedittoenterSecurityprofilesettingpage.  SSID,encryptionmethodcanbeset,thelocalforwardshallbeenabled.ChooseYes forlocalforward.  BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...
  • Page 12              BittelLIMARKWIFISolution 4.7ApplyAPsettingtemplates.  OpenINFORMATION--ThinAPonlinelists,choosetemplateconfigure,doubleclick ontheAPstoapplythetemplates.  Choosethetemplate.   4.8ChooseNetworkconfigure--DHCP,chooseEDITintheDHCPconfigurelists.     BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...
  • Page 13              BittelLIMARKWIFISolution ChoosetheDHCPstatusofAPtobeDISABLE,clickAPPLY.  4.9ChooseManagement-SaveConfigure--Yes-Apply. 5. CongratulationsYouHaveFinishedTheAPConfiguration!EnjoytheWIFIThat LIMARKAPProvides! BITTEL LIMARK WIFI AP SOLUTION www.bittelgroup.com/en/...

  • Page 14: Fcc Caution

                 BittelLIMARKWIFISolution FCC Caution. § 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
