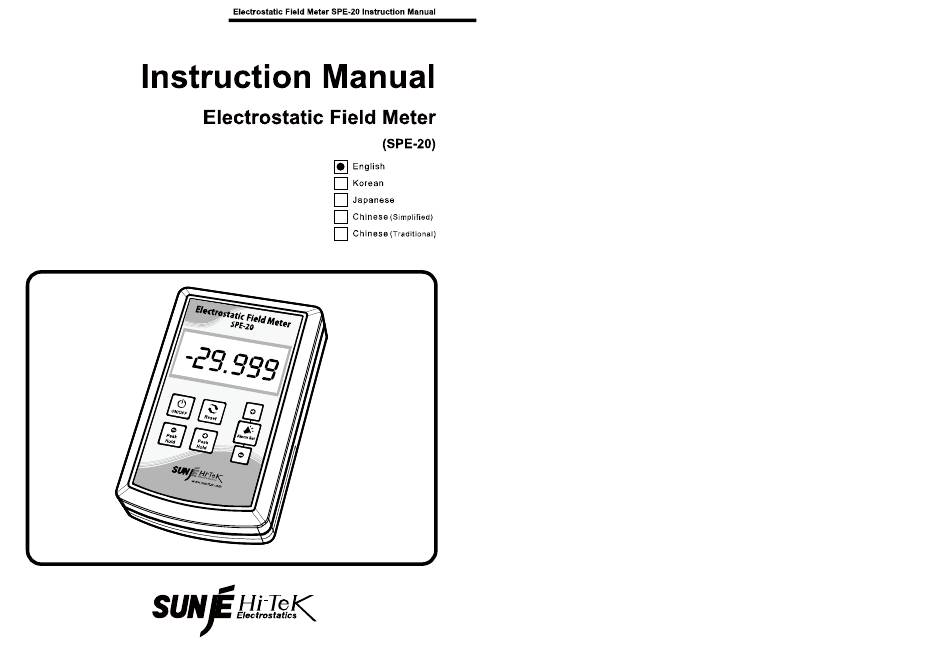

Sunje Hi-Tek SPE-20 Instruction Manual

Electrostatic field meter
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
INDEX
1. Please make sure you read before use .......................................................................................................... 3
2. Overview and Main Characteristics ............................................................................................................... 4
3. Components Description ................................................................................................................................ 5
4. Operating Method ............................................................................................................................................ 7
4.1 How to use static voltage measurement instrument ........................................................................................................................ 7
4.2 How to ground ..................................................................................................................................................................................... 7
4.3 How to reset ......................................................................................................................................................................................... 8
4.4 How to use ±Peak Hold ....................................................................................................................................................................... 9
4.5 How to set up or delete the alarm ...................................................................................................................................................... 9
5. Specifications ................................................................................................................................................. 10
6. The List of Accessories ................................................................................................................................. 11
7. External Dimension ....................................................................................................................................... 12
8. Warranty ......................................................................................................................................................... 13
9. Contacts in the event of Repair and Failure ................................................................................................ 14
Electrostatic Field Meter SPE-20 Instruction Manual
SunJe Hi-Tek Co., Ltd
- 2 -
