Arctic Heat Pumps MAFP020A Installation Instructions Manual

Evi dc inverter air to water heat pump

Advertisement

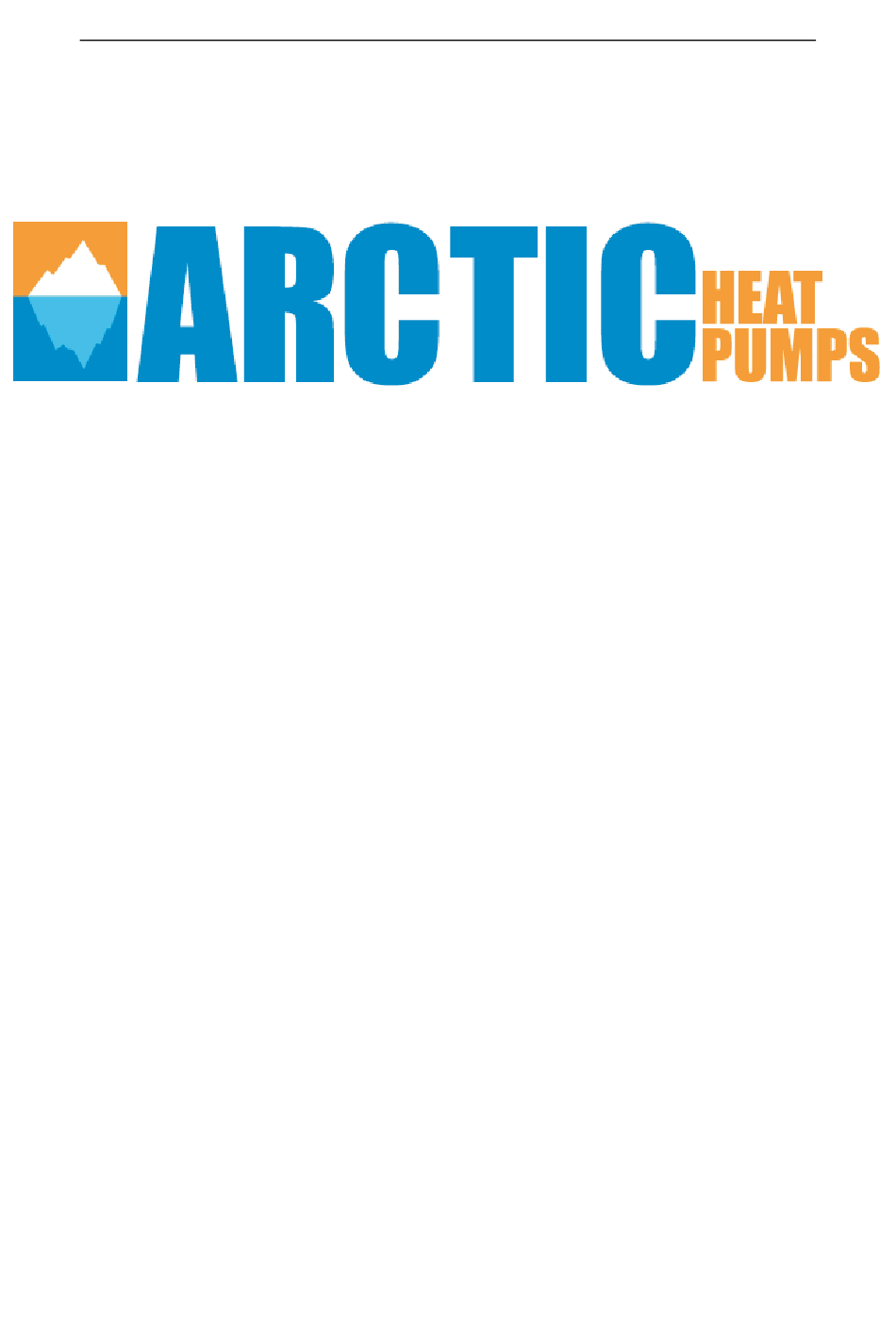

1
INSTALLATION &
INSTRUCTION
MANUAL
EVI DC INVERTER
AIR TO WATER HEAT
PUMP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAFP020A and is the answer not in the manual?

Questions and answers

Summary of Contents for Arctic Heat Pumps MAFP020A

  • Page 1 INSTALLATION & INSTRUCTION MANUAL EVI DC INVERTER AIR TO WATER HEAT PUMP...
  • Page 2: Table Of Contents

    Table of Contents Specification ..........0 Buttons and Display Symbols Explanation 21 Technical Parameters of Arctic Air to Water Wired Controller Operations ...... 21 Heat Pumps ............0 Checking of State Parameters ....... 2 Heating Performance Table ....... 1 M aintenanc e and Repair ...... 3 Recommended Circulation Pump (External) ..
  • Page 3 Notice Save this manual for future reference. To use this product better and more safely, please read this manual carefully before installation and initial operation. This heat pump must be installed by qualified and experienced technicians/trades-persons. Improper Installation of this heat pump may cause damage and danger. This heat pump must be installed in accordance with local wiring regulations including an isolating switch from the supply mains and grounded power supply consistent with the power specification of this heat pump.
  • Page 4: Specification

    I. Specification Technical Parameters of Arctic Air to Water Heat Pumps Model MAFP020A MAFP040A MAFP060A Rated Cooling Capacity (kW) ① 12.5 Rated Input Power (kW) ① Rated Input Current (A) ① 13.63 18.63 27.3 Performance COP (W/W) ① Rated Heating Capacity (kW) ②...
  • Page 5: Heating Performance Table

    Heating Performance Table ARCTIC 020A Power Input (W) Outdoor Temp. Water Inlet Temp. -22℃<Tout -22℃<Tout≤-15℃ -15℃<Tout≤-9℃ -9℃<Tout≤-3℃ -3℃<Tout≤4℃ 4℃<Tout≤11℃ 11℃<Tout≤18℃ 18℃<Tout≤26℃ 26℃<Tout≤35℃ Tout>35℃ ≤10℃ 10℃<Ti≤20℃ 2050 2108 1881 1907 1883 2038 1734 1696 1605 20℃<Ti≤32℃ 2311 2348 2454 2201 2187 2106 2193 2144...
  • Page 6: Recommended Circulation Pump (External)

    ARCTIC 060A Power Input (W) Outdoor Temp. -22℃<Tout -22℃<Tout≤-15℃ -15℃<Tout≤-9℃ -9℃<Tout≤-3℃ -3℃<Tout≤4℃ 4℃<Tout≤11℃ 11℃<Tout≤18℃ 18℃<Tout≤26℃ 26℃<Tout≤35℃ Tout>35℃ Water Inlet Temp. ≤10℃ 10℃<Ti≤20℃ 3593 3512 3604 3555 3452 2768 2787 2510 2431 20℃<Ti≤32℃ 4044 4013 4149 4091 3982 3093 3338 3183 3186 32℃<Ti≤38℃...
  • Page 7: Product Dimensions

    Product Dimensions mm/inches MAFP 020A Size 440mm/17.3” 760mm/29.9” 1145mm/45” 840mm/33” MAFP 040A & 060A Size 440mm/17.” 760mm/29.9” 1195mm/47” 1285mm/50.6”...
  • Page 8: Installation

    II. Installation Heat Pump Installation This heat pump requires good air flow through the fin coils for maximum efficiency. Also, hotter outside air temperature in cooling mode and colder outside air temperature in heating mode will reduce performance of the heat pump.
  • Page 9  Do not install the control panel in a wet environment which may cause the control panel to malfunction.  In cold regions where heat pump will be used primarily for heating, the unit should be raised off the ground 18-24” to allow ice accumulation below the drain hole, otherwise drain pan will become plugged.
  • Page 10: Installation

    Installation Space Requirements: ≥600mm ≥500mm ≥1500mm ≥600mm Unit ≥600mm Bolt Bolt Unit ≥200mm Buffer Tank Installation Site Selection  The Buffer tank should be installed indoors  When there is a chance of freezing, glycol/water mixture should be used in the buffer tank. ...
  • Page 11: Installation Of Indoor Heating And Cooling Equipment

    Installation of Indoor Heating and Cooling Equipment  Indoor heating and cooling equipment such as fan coils, radiator heating or floor heating, should be installed in accordance with relevant regulatory requirements, engineering design drawings, and the manufacturer's installation instructions.  Use flexible piping to connect the heat pump and indoor heating and cooling equipment, such as PEX or flexible stainless steel or flexible cooper.
  • Page 12: Installation Of The Temperature Detector

    Installation of the Temperature Detector Firstly, place a small amount of heat conductive silicone onto the front of the temperature sensor, then insert it into the temperature thermowell port. Next, push the temperature sensor through to the end of the thermowell, then mark the depth of the pin on the sensor wire.
  • Page 13: What Gets Connected And Where

    Electrical Wire Selection – Warning  The internal compressor motor insulation does not protect the compressor against all possible conditions. Please be sure that the system is properly grounded when installed in the field.  To avoid fire, electric shock and other accidents, only use the power supply voltage indicated on the label. ...
  • Page 15 See Appendix for Detailed Wiring Options...
  • Page 16: Trial Operation By Qualified Installer

    Trial Operation by Qualified Installer Pre-start-up checks:  Check the entire pipe system. Ensure the system is full and the air is removed completely. Check whether the valves are open throughout the system.  Check the thermal insulation of the pipe work, make sure relevant pipes are appropriately insulated (hot and cold).
  • Page 17: Installation Illustrations

    III. Installation Illustrations Hydronic Heating With Optional Hot Water Coil...
  • Page 18 Fan Coil Heating With Optional Hot Water Coil...
  • Page 19 Air Handler Heating With Optional Hot Water Coil...
  • Page 20: Hydronic Heating (Priority), & Fan Coil

    Hydronic Heating (Priority) Fan Coil Cooling With Optional Hot Water Coil...
  • Page 21 Hydronic Heating (Priority) Air Handler Cooling With Optional Hot Water Coil...
  • Page 22 Hydronic Heating & Hydronic Cooling With Optional Hot Water Coil...
  • Page 23 Fan Coil Heating & Cooling With Optional Hot Water Coil...
  • Page 24 Air Handler Heating & Cooling With Optional Hot Water Coil...
  • Page 25: The Use Of The Wired Controller

    IV. The Use of the Wired Controller Buttons and Display Symbols Explanation The User Interface and Functions Display is as below: A B C D E F G H symbol icon instructions Cool mode icon Heating mode icon Hot water mode icon defrost mode icon AMB.T Compressor run icon...
  • Page 26 Modifying the Temperature Setting While in operating status, short-pressing the button or button, which will modify the temperature setting. For example, if in the hot water mode, it will modify the hot water tank temperature setting. If in cooling condition mode, it will modify the setting of the returning inlet temperature to the heat pump.
  • Page 27 Note: The room control strategy for heating and cooling, is not controlled by the heat pump. That is done by the thermostat of the air handler or radiant heating zone for example. The heat pump attempts to maintain a buffer tank temperature that is sufficient for the air handler to do the job of heating or cooling that space.
  • Page 28 Forced Defrost In heating mode, press at the same time to run defrost mode, and the defrost icon will flash. Clock Setting Short-press the time button , and the time of the wire controller will flash. At this time press button to confirm, and the hours will be flashing.
  • Page 29 Timer Programming Press to adjust long press the setting of the hours button Press ,then press to adjust the setting of the minutes Press to adjust short press the setting button of the hours The turn on timer setting is finish Press ,then press...
  • Page 30: Checking Of State Parameters

    Checking of State Parameters In the main interface Press to enter the state parameter interface. Then press button to navigate to the state parameters. 2018 - Current Display Meaning Display Meaning Water tank temperature Main elec. Expansion valve degree Water inlet temperature Cool coil temperature Water outlet temperature Dc bus voltage...
  • Page 31: Maintenance And Repair

    V. Maintenance and Repair Notes  Keep the unit in a dry environment, that is clean and well ventilation. Clean the evaporator fins regularly (once per 1-2 months) in order to maintain high exchange efficiency and save energy.  The unit has self-diagnosis built into it and as such will display error codes on the control display if any items need attentions.
  • Page 32: Malfunction Code Table

    Malfunction Code Table Code Interpretation and Resolution: Wire Controller Display Meaning Resolution Check if the compressor discharge temperature Compressor discharge temperature sensor Sensor for short, or open circuit and correct or replace. fault Check the heat pump coil temperature sensor Heat Pump Coil temperature sensor fault and wires for a short or open circuit and correct or replace sensors.
  • Page 33 The compressor phase current protection This applies to 3-phase units, were the phasing of the wires is incorrect and needs to be corrected Ac voltage too high or too low protection Please Contact the dealer DC bus voltage is too high or too low Please Contact the dealer protection Compressor protection...
  • Page 34: Quick Fixes

    2. Call refrigeration mechanic to reduce Compressor re-fill) refrigerant discharge pressure 3.Heat exchanger not working properly 3. Call Arctic Heat Pumps too high Compressor 1.Shortage of refrigerant or leakage 1. Call refrigeration mechanic to check the system suction pressure for leakage, fix the leak and re-fill the heat pump 2.
  • Page 35: Appendix

    Appendix Wiring Diagrams Controller Board...
  • Page 37: Intelligent Defrost

    Intelligent Defrost By default, the arctic heat pump is designed to defrost itself as needed. The algorithm is factory supplied based on optimized performance parameters for cold climate. These are based on coil temperature differentials and compressor time run. When unit enters defrost it will go through various stages including a reverse to cooling removing some heat from the buffer tank.
  • Page 38: Eco Ultra Integration

    b. Unit is in cooling or defrost mode OR c. “Emergency” or “AC Remote On” switch is (activated) To connect the backup heater function (terminals) to a remote heating element you will need to use a 240 VAC contactor, as the system is not designed to provide power directly to a heating system due to the amperage restrictions.
  • Page 39 Connect E1 to E1 and E2 to E2 on heat pump and Eco ULTRA Aux heat source dry contact on Eco ULTRA E1/E2 Now when the Arctic Heat Pump calls for supplemental back up heat, the dry contact behind terminal E1/E2 will close, signaling to the boiler to begin contributing energy via its electric heating element.
  • Page 40: Multiple Heat Pumps

    Multiple Heat Pumps Larger power requirements can be accommodated adding multiple heat pumps in parallel. One heat pump becomes the master and the other are the slaves. When adding multiple units pipe sizing should be increased at the common home run pipe to accommodate the added flow of more than one pump. Example if there are three units with 1”...
  • Page 42 Flow Valves- It is recommended when running units in parallel that you properly balance the flow so that it is equal in each loop. Remember flow will always take the path of least resistance! You can purchase a Quick Setter Flow meter to balance each loop (see below).
  • Page 43: Wiring Option Appendix

    Wiring Option Appendix Wiring – HEATING Hydronic Pump (HY) EcoULTRA is a fully functional hydronic heating controller and has the capacity to control a single zone pump as well as calculate the optimal operating temperature via a built-in reset controller. This is done via the S1 and S2 connection with the supplied outdoor temperature sensor.
  • Page 44: Wiring - Heating Fan Coils (Fc)

    Wiring – HEATING Fan Coils (FC) The Fan coils are equipped with their own thermostat mounted on the unit as well as an internal 3-way valve, and pump output activation switch. The setting of the fan coil should be set to HEATING. When a heating call is generated by the units, the fan coil will open the internal 3-way valve and close its pump output switch.
  • Page 45: Wiring - Heating Air Handler (Ah)

    Wiring – HEATING Air Handler (AH) The Arctic Air Handler will optimize the air flow over its oversized heat exchanger when a heating call occurs from an external room thermostat. When a “W “ heating heat call is received the control board on the LV-Z will activate an external zone pump causing hot water to flow through the heat exchanger and the fan to turn on to its optimal fan speed.
  • Page 46: Wiring - Cooling Fan Coil (Fc)

    Wiring – COOLING Fan Coil (FC)* The fan coils are equipped with their own thermostat mounted on the unit as well as an internal 3-way valve, and pump output activation switch. The setting of the fan coil should be set to Cooling. When a cooling call is received by the units, the fan coil will open the internal 3-way valve and close its dry contact switch (remote on).
  • Page 47: Wiring - Cooling Air Handler (Ah)

    Wiring – COOLING Air Handler (AH)* The Air Handlers are equipped with a dry contact relay that is activate in heating call. To activate this in a cooling call we must jumper W2 and Y2. When an external room thermostat calls for cooling it will activate a “Y”...
  • Page 48: Wiring - Cooling & Heating Air Handler (Ah)

    Wiring – COOLING & HEATING Air Handler (AH)* The Fan coils are equipped with a relay that is activate in heating call. When an external room thermostat calls for heating it will activate a “W” heating call. This in turn will signal the fan coil to optimize its speed for heating.
  • Page 49: Modifying A Standard Tank To A Buffer Tank

    *Note In multi-mode such as hot water “and” cooling shown in the layout, the heat pump will always take the hot water mode as priority. As most system designs will use the internal hot water heat exchanger in the EcoULTRA tank, it will require that the hot water tank is first satisfied before activating a cooling call.
  • Page 50: Warranty

    This warranty is non-transferable and only exist to the original owner of the Arctic Heat Pump. Customers assume responsibility for subsequent damage that may occur as a result of a warranty failure. Arctic Heat Pumps will not be responsible for additional damage such as freezing or leaks that may occur because of a malfunction.
