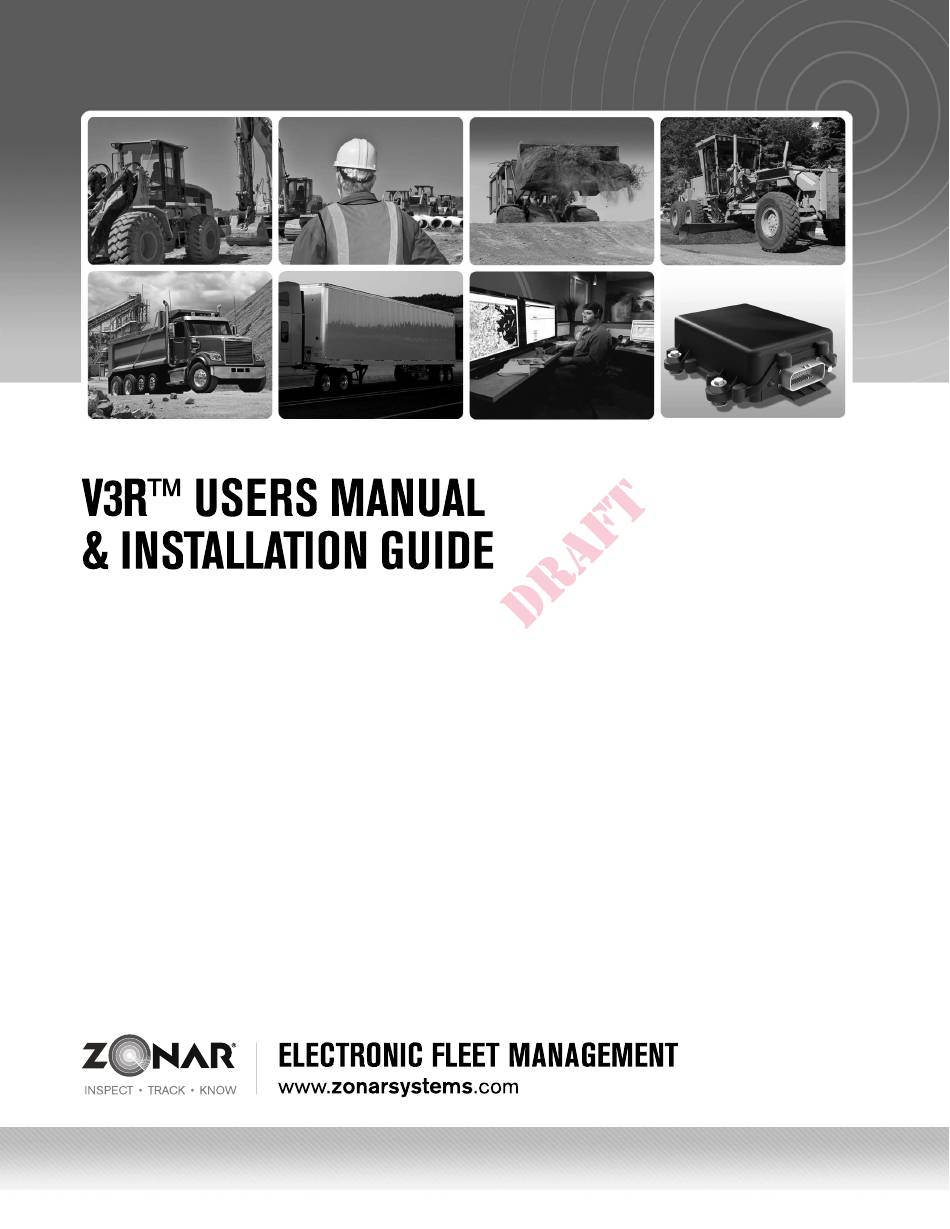

Page 1 REV:02/14/13...
Page 2: Introduction
Contact Zonar at 1-877-843-3847 or by email at customercare@zonarsystems.com. Thank you, Andre J Horochiwsky Technical Training Manager – Zonar Systems As Zonar Systems is continuously improving the Product, Zonar may make changes to the Product at any time which may not be reflected in this document.
Page 3: Table Of Contents
Troubleshooting...................16-17 Warranty & Notices - FCC Compliance .............18 © 2013 Zonar Systems • EVIR, ZPass,Ground Traffic Control and V3R are trademarks of Zonar Systems. All Rights Reserved. Products and services protected by one or more of the following US patents: 6671646, 6804626,...
Page 4: System Overview
SYSTEM OVERVIEW CELL TOWER INTERNET CUSTOMER ZONAR Secure Servers On-Site Location...

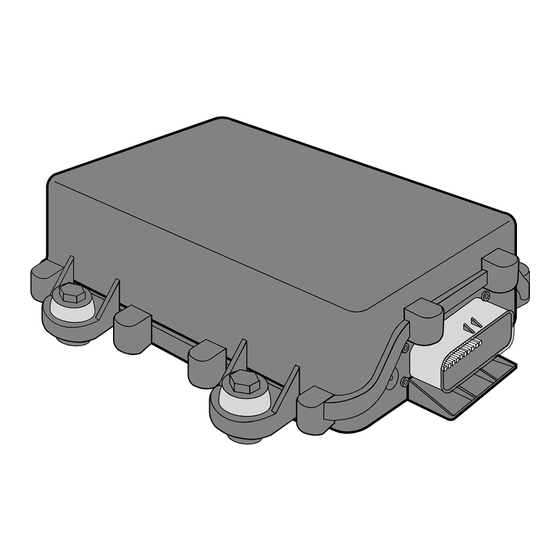

Page 5: V3R Equipment
V3R EQUIPMENT ZONAR V3R™ V3R POWER CABLE INSTALLATION HARDWARE Fuse Holders Mounting Hardware ATC Style Fuses Crimpable Butt Splices...
Page 6: General Guidelines
GENERAL GUIDELINES Layout Drill Holes V3R unit must be located a minimum of 8” from any person. Do not drill into the V3R unit. This will void the warranty. Do not place Zonar RFID tags, cables, or other equipment in Capture all drill chips during drilling operations.
Page 7: V3R Mounting
(e.g., cables, relays, sky (e.g. atop box trailer. If the V3R does not have a amplifiers, etc.). clear/unobstructed view of the sky (e.g. engine compartment) an external GPS antenna must be used.
Page 8: V3R Cable Management
Electrical Requirements and Cabling Information 1) Follow all General Guidelines as specified on page 6. 2) It is strongly recommended to keep Zonar electrical connections outside "master kill" circuitry. Failing to do so may lead to inaccurate data (See caution notice this page).
Page 9: Power Cable Wiring Guidelines
Wiring Guidelines for Zonar Power Cables The recommended method for power termination on the Zonar V3R system is the use of Add-a-Circuit fuse taps. Whenever possible, use fuse taps for power termination. If, due to the particular make/model/year of the vehicle being installed, fuse taps cannot be used then the poke and weave method of termination can be utilized.
Page 10: External Gps Antenna Installation
ANTENNA INSTALLATION External GPS Antenna and Double Sided Adhesive (Optional) 1) Required when the V3R does not have an upward facing clear view of the open sky. 2) Suggested mounting area - as high on the vehicle as possible, facing upward. Protect from moving machinery and falling debris.
Page 11: System Check
Engine Off = 0 Volts Final check A. Turn engine on for 4 minutes or more, then turn off engine. B. In Zonar’s Ground Traffic Control™ export path CSV (GPS, path report), ensure exported CSV contains: 1. Cold Start 2. Power-On event 3.
Page 12: System Checklist
V3R SYSTEM CHECKLIST Customer: Yard: Date: Asset #: Installer: Location: GPS ID: Vehicle Odometer Value: Vehicle I.D. (e.g., Vin, Plate#, Make, Model, Year) Vehicle Hour Meter value (if monitoring engine hours) System Check Value Notes General Layout General condition - components level, even, straight, etc?
Page 13: System Components And Specifications
Important Notice System Components & Specifications COMPONENTS It is the Owner's sole responsibility to install and use the Zonar • V3R™ GPS Unit products in a manner that will not cause accidents, personal injury • 3 wire power harness magnetic and bolt-thru mounting kits or property damage.
Page 14: Installation Examples
6 inches. Trailer Left Side Front High Mount- Alternate Yellow Iron - Note: The V3R needs Inside Back Cab a clear view to the Alternate open sky to track GPS satellites. If this is not Min. 8” from Operator -...
Page 15: System Installation Diagram
SYSTEM INSTALLATION Zonar V3R™ Part#: 10083 External GPS Antenna (Optional Accessory) Part#: 10006 Cable Length: 16.5 ft. 20 AWG Constant Power Supply Input Voltage: 8-30VDC +12VDC (Red) 3A-5A GND (Black) 3A-5A Switched Power (White) Engine Running: 8-30 VDC Acc/Accessory mode, Engine Not Running: 0 VDC...
Page 16: Troubleshooting
Before any other issue can be resolved, it is important to ensure that the V3R has reliable constant power. If both steps 6 and 8 result in PASS, the V3R passes the electrical inspection. However, if the equipment is acting up only under certain •...
Page 17 If not, perform the Power and Ground Wiring Inspection. Then repeat this test. 7. If the test passes, power cycle the V3R, and confirm that a Cold Start event occurred on GTC. Otherwise, note the failure condition, and contact Zonar Support.
Page 18: Warranty & Notices - Fcc Compliance
IC Compliance Statement (RSS-210) free of charge by Zonar. Zonar shall not be liable to Customer or any third party for any general, special, punitive, incidental, indirect This device complies with Part 15 of the FCC Rules and with RSS- or consequential damages, or any lost profits or business, arising 210 of Industry Canada (IC).
Page 19 NOTES...
