MRT‐3000

miiiCasa Home Cloud Center

User Manual

Table of Contents

Need help?

Do you have a question about the MRT-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for miiiCasa MRT-3000

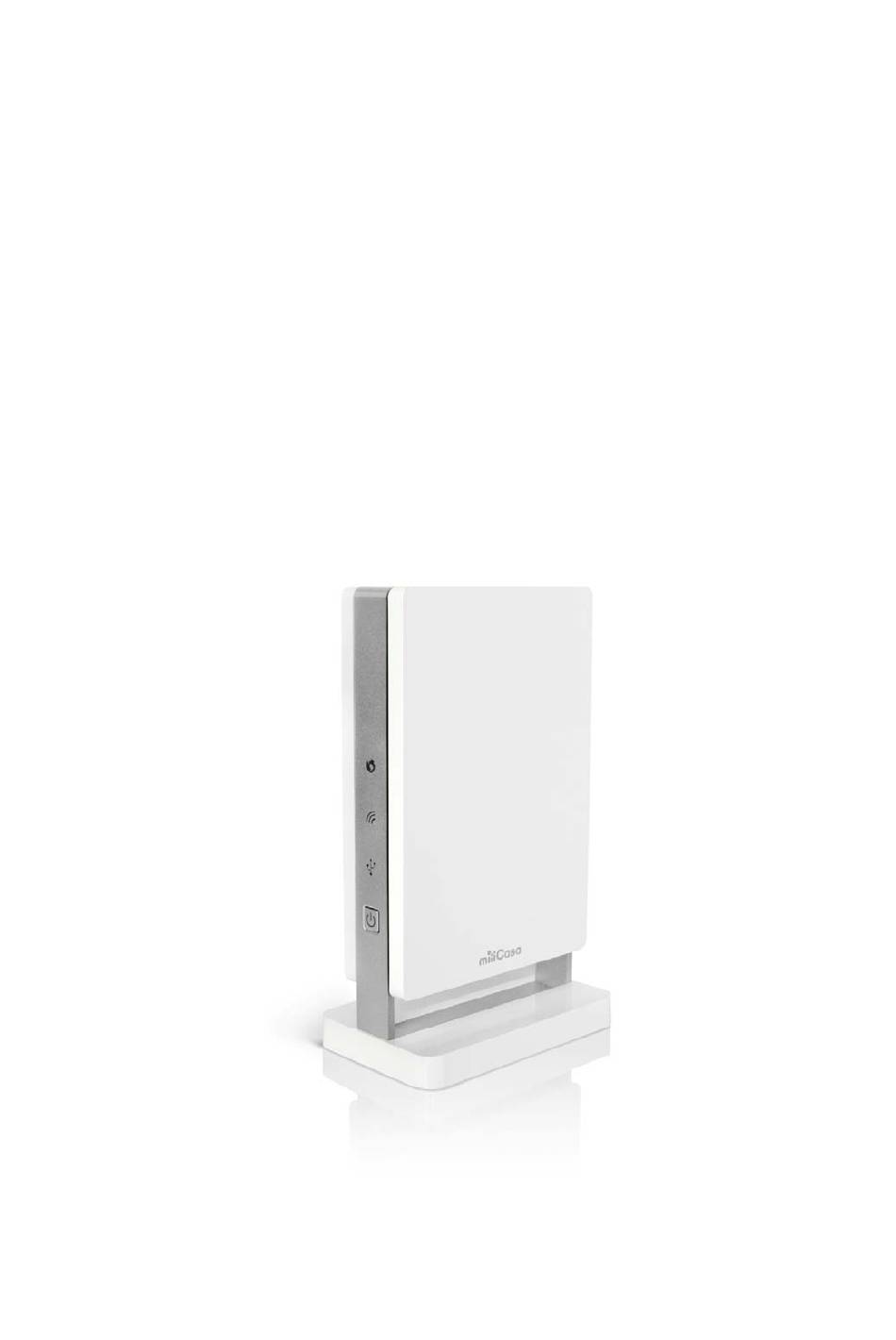

Page 1 MRT‐3000 miiiCasa Home Cloud Center User Manual ...
Page 2: Table Of Contents
Contents Getting Started Setting up Your MRT‐3000 Using Your MRT‐3000 FAQ Services and Support MRT‐3000 Specifications Safety Guidelines Regulatory Compliance Information...
Page 3: Getting Started
Getting Started Congratulations on purchasing your miiiCasa MRT‐3000 Home Cloud. Read this user manual to get started. MRT‐3000 is your miiiCasa Home Cloud with built‐in wireless 802.11n router. miiiCasa completely reinvents how you store, play and share your private multimedia content and offers a unique and fun experience that cannot by found anywhere else. To learn more about miiiCasa, please visit www.miiicasa.com Furthermore, with MRT‐3000 you can easily create a high‐speed Wi‐Fi network for your entire household; it also comes with Gigabit ports and shares your broadband Internet connection with computers and devices on your network. MRT‐3000 allows you to: Connect a USB storage and easily store, view, organize and share all your ...
Page 4 DSL or cable modem, or for connecting to an existing Ethernet network Four 10/100/1000Base‐T Gabit Ethernet Local Area Network (LAN) ports for connecting Ethernet devices, such as computers or IP Cam, or for connecting to an existing Ethernet network. One USB 2.0 port for connecting USB Storage used by miiiCasa. One power port for connecting the AC adapter to a power source The Power button is located in the front. Underneath the MRT‐3000 is a reset button, which is used to clear all current ...
Page 5 Plugging In MRT‐3000 Before you plug in your MRT‐3000, first connect the appropriate cables to the ports you want to use: Connect the Ethernet cable that is connected to your DSL or cable modem (if you will connect to the Internet) to the Ethernet WAN port. To use miiiCasa, connect any USB storage to the USB port on the MRT‐3000. Connect an Ethernet cable from any Ethernet device to the Ethernet LAN ports After you have connected the cables for all the devices you plan to use, connect the AC adapter to the power port, and plug it into a power outlet. NOTE: Use only the AC adapter that came with your MRT‐3000. Press the Power button in front of the MRT‐3000 to turn it on. The Power LED should start glowing solid green. ...
Page 6 The MRT‐3000 LED Status The following table explains the MRT‐3000 LED lights and what they indicate: LIGHT BEHAVIOR DESCRIPTION Internet On Connected to the Internet Off No Internet connection Wi‐Fi On Wi‐Fi on Off Wi‐Fi off Blinking Wi‐Fi activity USB On USB detected Off USB unplugged Blinking USB activity Power On Power on Off Power off ...
Page 7: Setting Up Your Mrt-3000
Setting Up Your MRT‐3000 This chapter provides information and instructions for setting up your MRT‐3000. Setup using Web Browser 1. Open any web browser on your PC or Mac. 2. Enter MRT‐3000’s default IP address “192.168.0.1” 3. Follow the Setup Wizard to complete your MRT‐3000 setup. NOTE: We recommend that you use IE 7.0 or above, FireFox 2.0 or above, Chrome or Safari. ...
Page 8: Using Your Mrt-3000
Using Your MRT‐3000 In this chapter you’ll find explanations of the different ways you can use your MRT‐3000. Navigating the MRT‐3000 After you have completed Setup wizard and logged in, MRT‐3000’s homepage looks like this: Internet If you’re connected to the Internet, the light on top will be green. If you’re not, it will be red. ...
Page 9 Click on the Globe to view or change your Internet connection method. Router Information Click on the MRT‐3000 icon to check or change your firmware and admin password. Wireless Click to view or change your SSID and wireless key. Share Change how you’d like to share your files with others. Included are “miiiCasa,” “UPnP AV Media Server,” “Samba Server,” and “iTunes Server.” Guest Zone Click to view or create a separate wireless network for your guests. Go here to access all the advanced features MRT‐3000 offers. Network Map Click to find out what devices are connected to the MRT‐3000. ...
Page 10 Home Cloud allows you to store, share, and consume your multimedia content in ways you never imagined before. 1. Homepage > Share > miiiCasa 2. You can enable or disable miiiCasa from here. miiiCasa is on by default, once you disable it, no one in the MRT‐3000 network can use miiiCasa Home Cloud. 3. If you’d like to use miiiCasa, go to www.miiicasa.com to register an account or login using your facebook account. ...
Page 11 UPnP AV Media Server allows the USB storage connected to MRT‐3000 to be accessed and played by other UPnP AV or DLNA‐certified boxes (such as Playstation 3 or Xbox 360) in the same network. 1. Homepage > Share > UPnP AV Media Server 2. Check the “Enable” box 3. Select a USB Storage (if there are multiple) that you want to access through other UPnP AV media boxes. 4. Once complete, you can directly play music or movies in MRT‐3000’s USB storage from your Playstation or Xbox. Using MRT‐3000’s iTunes Server MRT‐3000’s iTunes Server allow you to view multimedia files on the USB storage directly from your iTunes on PC or Mac. 1. Homepage > Share > iTunes Server 2. Check the “Enable” box 3. Select a USB Storage (if there are multiple) that you want to access through your iTunes on the PC or Mac. 4. Open iTunes on your PC or Mac and you should see “miiiCasa MRT‐3000” in your ...
Page 12 iTunes bar ...
Page 13: Faq
FAQ Most of you problems can be solved in this chapter. I Can’t Connect to the Internet ‐ Try connecting to the Internet directly from your computer. If you can’t connect to the Internet from your computer, check your network settings. If they appear to be correct and you still can’t connect, contact your Internet Service Provider (ISP). ‐ Make sure you have entered all the ISP’s information correctly, such as PPPoE account / password. ‐ Make sure you are connecting to the correct wireless network. I Forgot My MRT‐3000 Admin or Wireless Password You can reset the MRT‐3000 to factory default, there are two ways to do it: 1) MRT‐3000 Homepage > Advanced Mode > System > Restore to Factory default 2) Press the Reset button under MRT‐3000 for longer than 10 seconds to reset it to factory default. ...
Page 14 For example, if device A is set to channel 1, device B should be set to channel 6 or 11 if operating under 2.4 GHz. Can I connect any USB storage drive to the MRT‐3000? What File Formats Are Supported? You can connect any USB storage, flash drive or hard disk drive of any size to the MRT‐3000. MRT‐3000 supports FAT32 and NTFS file formats on the USB. I’ve set up everything, but why can’t I access my files at home with miiiCasa? If you cannot remotely access files on your MRT‐3000, you might need to check your network environment: 1. A network using the Virtual IP or Private IP To be accessible remotely, the network your MRT‐3000 is connected to must use a Public IP, please check with your network service provider or apply for one. 2. Double NAT Make sure your MRT‐3000 is NOT connected to or behind another router (Remote ...
Page 15: Services And Support
Service and Support You can find more information about using your MRT‐3000 Home Cloud on the web and in GUI help. Online Resources To register or learn more about miiiCasa, go to www.miiicasa.com For Additional Help or FAQ, go to http://help.miiicasa.com/ For the latest information about the MRT‐3000, go to xxxxxxxxxx GUI Help To learn more about using MRT‐3000 and its various functionalities, you can refer to the various help tooltips in the GUI. Finding the Serial Number of your MRT‐3000 The serial number is printed on the bottom label of your MRT‐3000. ...
Page 16: Mrt-3000 Specifications
MRT‐3000 Specifications Wireless Frequency Band: 2.4 or 5 GHz Wi‐Fi standards: 802.11a, 802.1b, 802.11g, or 802.11n Maximum Wi‐Fi speed: 300Mbps Interfaces 1 RJ‐45 10/100/1000Base‐T Gigabit Ethernet WAN port 4 RJ‐45 10/100/1000Base‐T Gigabit Ethernet LAN ports 1 Universal Serial Bus (USB) 2.0 port 802.11a, 802.11b, 802.11g, 802.11n wireless Environmental Operating Temperature: 0° C to +40° C Storage Temperature: –20° C to +65° C Relative Humidity (Operational): 10% to 90% non‐condensing Relative Humidity (Storage): 5% to 95% non‐condensing Size and Weight Height (without base): 182 mm / 7.17 inches Height (with base): 217 mm / 8.54 inches ...
Page 17: Safety Guidelines
Safety Guidelines Using Your MRT‐3000 Safely The only way to shut off power completely to your MRT‐3000 is to disconnect it from the power source. Your MRT‐3000 case should not be opened for any reason, even when it is unplugged. Never force a connector into the ports. If the connector and port do not join with reasonable ease, they probably don’t match. Make sure that the connector matches the port and that you have positioned the connection correctly in relation to the port. ...
Page 18: Regulatory Compliance Information
Regulatory Compliance Information F ederal Communication Commission Interference Statement T his device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. T his equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed ...
Page 19 以下警語適用台灣地區經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 www.miiicasa.com © 2012 miiiCasa Taiwan Inc. All Rights Reserved. miiiCasa, the miiiCasa logo, and MRT‐3000 are trademarks of miiiCasa Taiwan Inc. registered in the U.S. and other countries. Other product and company names mentioned herein may be trademarks of their respective companies.
