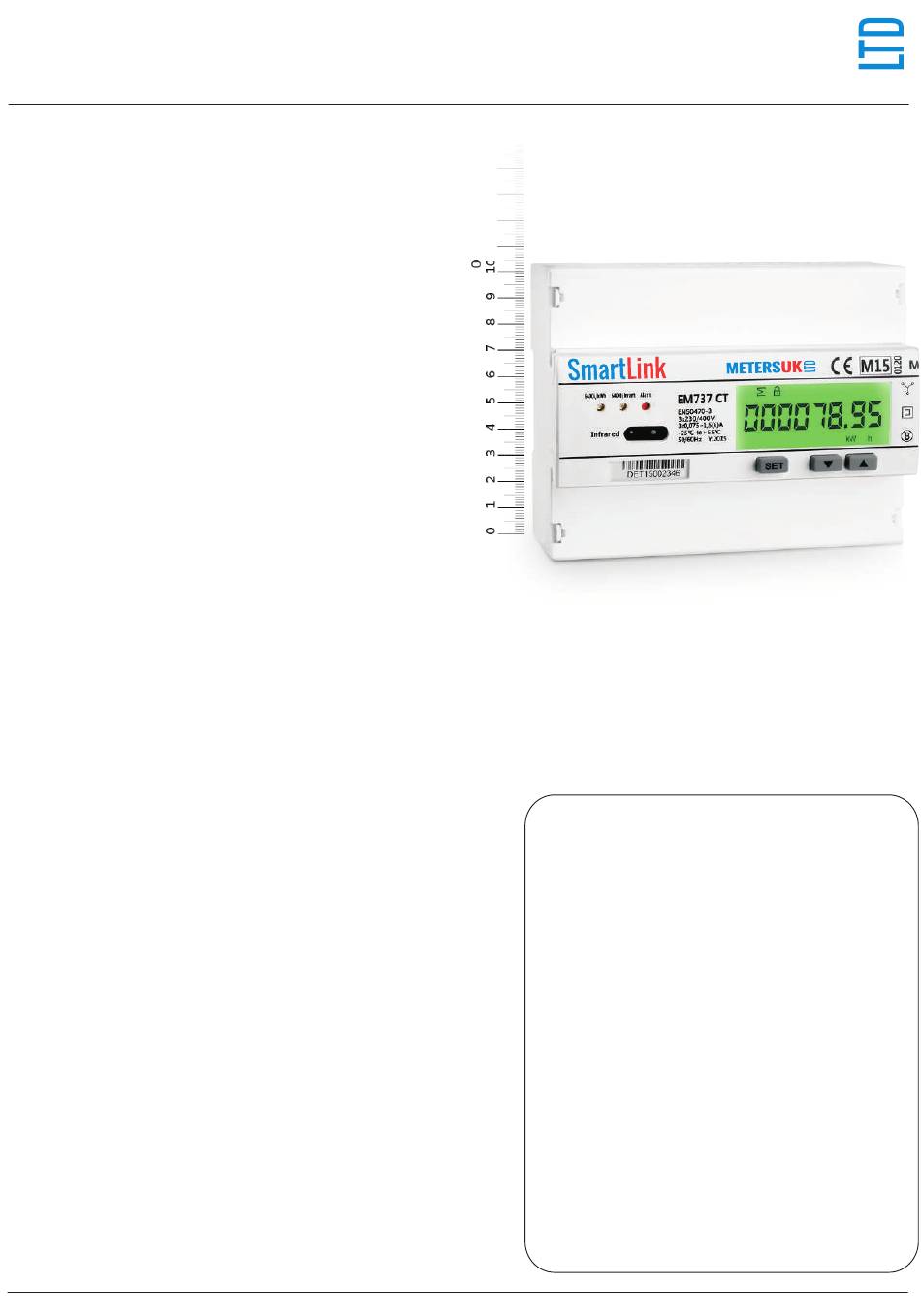

User Manual
EM737 CT
Smart Energy Meter
KEY FEATURES
Three phase metering
•
Standard DIN rail Format (DIN43880)
• EN50470-3 Class B.
• Import & Export active energy / Import & Export reactive energy
• Instant Volt, Amp, Power factor, Frequency, Active power,
Reactive power, Apparent power
• Isolate pulse output and IR (DIN43864)
• LCD display, 6 integer 2 decimal
• Large clear backlight display
• Internal transformer
• 27 CT rate can be selected
• Optional single-phase model
• RS485 communication port, modbus protocol, IR port
• Program by button on the nameplate
• Memory back-up (EEprom)
• 7 DIN modules
• MID approval
• The meter is intended to be installed in a Mechanical Environment 'M1', with Shock and Vibrations of low significance, as per
2004/22/EC Directive and should be installed in Electromagnetic Environment 'E2', as per 2004/22/EC Directive.
INDEX
1. Safety notice
2. Package Contents
3. EC Type Examination Certificate - upon request
4. Declaration of Conformity - upon request
METERSUK
s a l e s @ m e t e r s . c o . u k 0 1 5 2 4 5 5 5 9 2 9
1. SAFETY NOTICE
The smart energy meter of EM737 series does not require
special mechanical or electrical tools for its installation.
Mounting position (with any angle of tilt) has no effect on the
measurement functions of the meter.
Connecting of the meter must be made according to applicable
wiring diagram. Incorrect connection of the meter to the
electricity network causes major display problem and can
also causes serious damage to the meter.
Before starting meter operation, it must be ensured the local
conditions of the energy system are consistent with data on the
nameplate of the meter.
Preferably use for the connection of shielded cables. Make sure
that connecting cables are not damaged during installation of
the meter are not energized and free of non-mechanical stress.
Repairs when removing the cover of the meter, which is also
under tension can be made only by a qualified electrician who
is familiar with the associated risks.
Capacitors in the meter may still be charged even if the meter
is disconnected from all energy sources.
2. PACKAGE CONTENTS
Three phase, electronic energy meter
instructions for assembly
ID setting
Baud rate setting
CT rate setting
Password setting
Advertisement
Table of Contents
Summary of Contents for Meters UK Ltd SmartLink EM737 CT
- Page 1 METERSUK User Manual s a l e s @ m e t e r s . c o . u k 0 1 5 2 4 5 5 5 9 2 9 EM737 CT Smart Energy Meter KEY FEATURES Three phase metering •...
- Page 2 EM737 CT User Manual 5. TECHNICAL DESCRIPTION 5.1 PERFORMANCE CRITERIA Operating humidity ≤ 7 5% Storage humidity ≤ 9 5% Limit range of operating temperature -25°C - +55°C(3K6) Limit range for storage temperature -25°C - +55°C(1K4) Humidity 75% yearly average,95% on 30 days/year International standard EN50470-3 &IEC62053-21 Accuracy class...
- Page 3 EM737 CT User Manual 5.3 DIMENSIONS & SEALING POINTS 104.5 6 WIRING DIAGRAMS Note: the following types of wiring diagrams show the energy meter, include terminals for pulse output and the communication interface RS-485.However,depending on the ordering number of the energy meter only some terminals of the energy meters are involved.
- Page 4 EM737 CT User Manual 8. MAIN FUNCTION 8.1 Measuring Function On the EM737’S front panel, there are three LED, active/reactive energy pulse light, and alarm indicator lights . Meter can measure import & export active energy , import & export reactive energy. The measurement type can be set. 8.2 Display function Smart meter have two status: cycle display status and button press display .
- Page 5 EM737 CT User Manual Production Data and Identification Comments Read Write Bytes Starting Address Serial Number FF00 Manufacture Code FF02 Type Code FF04 Hardware Version FF05 Software Version FF06 Settings Comments Read Write Bytes Starting Address Modbus id Baud Rate LCD Content Symbol Description...
- Page 6 EM737 CT User Manual Pulse Output Function The test pulse output is a polarity dependant, passive transistor output requiring an external voltage source for correct operation. For this external voltage source, the voltage (Ui) should be 5-27V DC, and the maximum input current (Imax) should be 27mA DC.
- Page 7 EM737 CT User Manual 9.4 CT RATE SETTING Press “Page down” and “page up” buttons to select the CT transformation ratio press “SET” button to save the setup. the interface will enter Password setup. Remarks： 1. If the meter is Direct connection type, it has no CT setup interface. 2.
