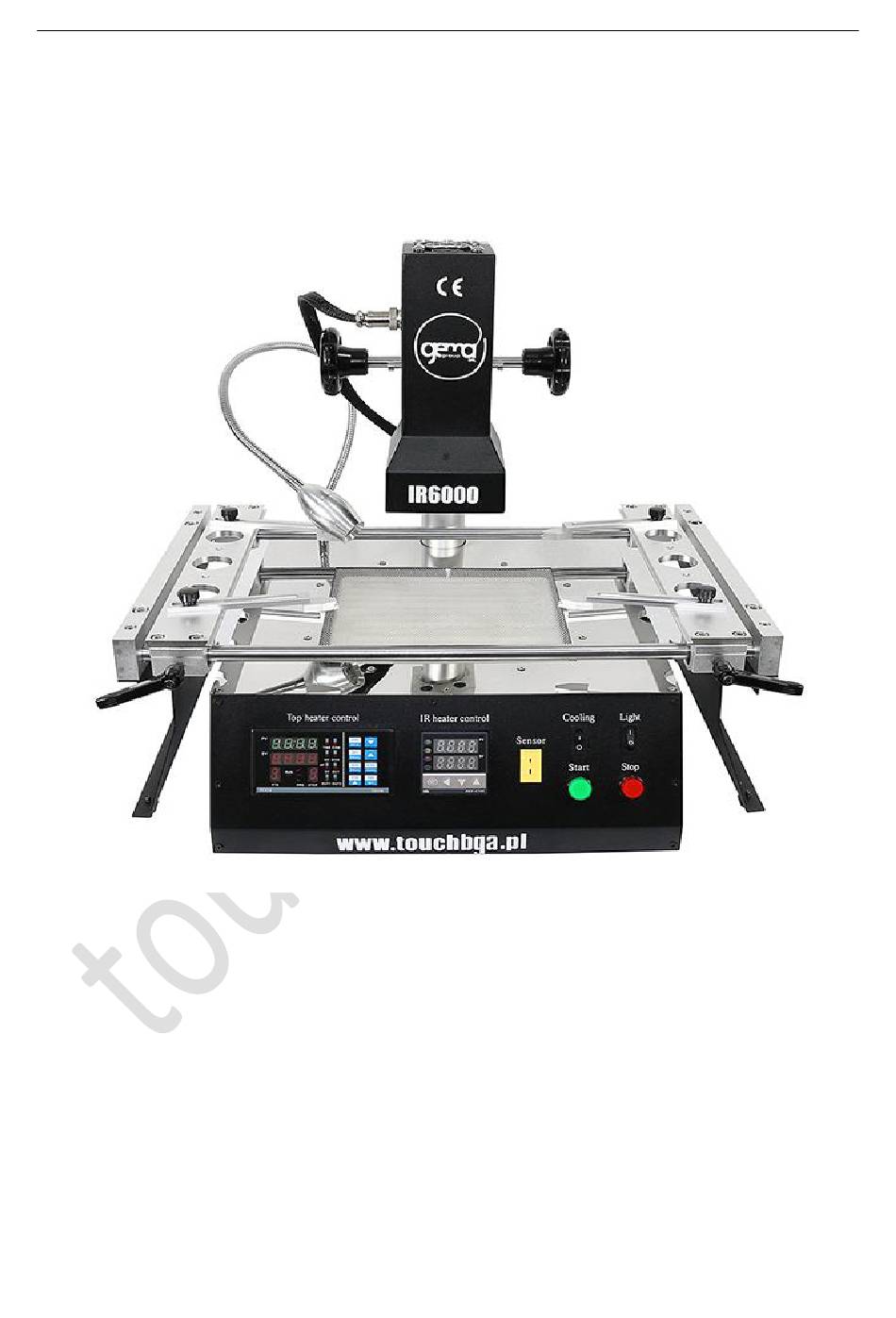

- Page 1 TOUCHBGA BGA Rework Station IR6000 User Manual...
-
Page 2: Table Of Contents
1.1.Safety Instrouctions 1.1.1.Electric Safety 1.1.1.Operation Safety 1.1.3.Environmental requirements of operation and conservation 2.The operation and conservation condition of products 2.1.The parameters of IR6000 BGA Rework Station 2.2.Hardware description and Self-help install 2.3.Temperature-controlled meter Operation instructions 2.4.BGA Rework operation steps 2.5.Prompt... -
Page 3: Ir6000 Bga Rework Station Features
1. IR6000 BGA rework stations features IR6000 BGA Rework Station is designed to meet the ever-changing demands of today’s fast BGA Rework manufacturing environments. This model have following characteristics: 1. Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework. -
Page 4: Safety Instrouctions
1.1.Safety Instrouctions 1.1.1.Electric Safety 1. Make sure the supply power voltage accord with the standards 220V-250V/50hz alternating current before installing. 2. To avoid possible electric shock caused serious damage, please disconnect the power cord from the outlet temporary before moving machines. -
Page 5: The Parameters Of Ir6000 Bga Rework Station

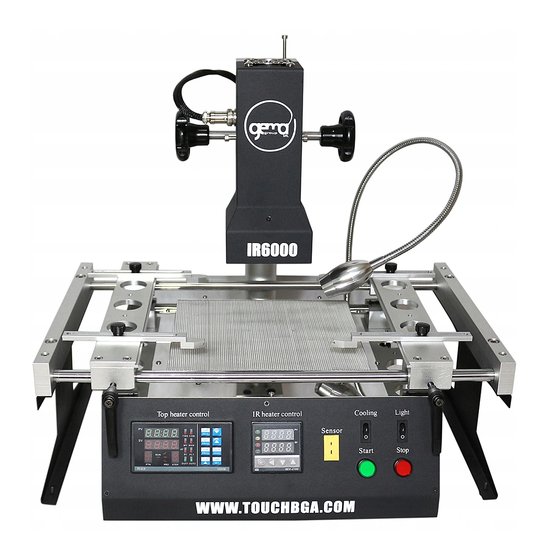

2.1.The parameters of IR6000 BGA Rework Station Heating kind Dimension 450x340x430mm Weight 12kg Electrical Parameters Power 220V AC Upper Heating Size of Upper heating IR-80x80mm Consumption of upper heating IR-450W Size of Bottom heating 180x180mm (heating area 190x190mm) Consumption of Bottom heating... - Page 6 2.2. Hardware description IR6000 BGA Rework Station is composed of upper part of Heating Components / Bottom Preheat Module / Bracket / Temperature Control Parts! Temperature control Table is control the upper and lower heating, Can Simultaneously heated or first preheat, then the upper part of heating.
- Page 7 Self-Installation Instruction PCB Table 1. Installation side support. 2. Installation Slip. 3. Installation side support.
- Page 8 Upper Heater Top head cable connector, RS232, power connector Temperature sensor Installation of RS232 communication interface for Desktop & Laptop...
-
Page 9: Temperature-Controlled Meter Operation Instructions
2.3. Temperature-controlled meter Operation instructions TOP Programmer/Controller General Description The programmable controller contains an in-built setpoint generator in addition to the controller function. This setpoint generator can produce a temperature/time profile with 10*16 segments (0 9 10 Sets of Curves). - Page 10 Program Parameters Setting...
- Page 11 Program Parameter List...
- Page 12 BOTTOM Programmer/Controller General Description Hold down the SET button of bottom heater temperature control instrumentation for 5 seconds, the display will blinking and using up/down buttons temperature of bottom heater. Using left arrow you can change one of four number positions.
-
Page 13: Prompt
2.4. Rework Operation Steps 1.Be all set 1.1.Fixed motherboard 1.2.Shift sensor close to BGA chip. 1.3.Adjust the height of heating head with adjustment knob (Prompt: BGA chip in the middle of heating head, heating head away from BGA chip >= 2cm) - Page 14 2.1.Select the appropriate temperature program segment, and then press the start switch. In the operation can press the stop switch, stop operating. 2.2.After the program runs, automatic alarm 8sec. and automatically cut off the heating power, this time you can check the following solder ball is completely liquefied, BGA chips should be subject to settlement, floating state .
- Page 15 Prompt 1. Keep the equipment at a steady working environment where the air mobility should be as small as possible. Avoid it closing to air conditioners, fans and the other outlet. 2. IR 6000 Rework Station sensor is directly contacted with motherboards, So the display temperature is Actual temperature.
- Page 16 Reweork and other technical reasons. The data needn’t to be changed. 11.The meaning of “r1” “L1” “d1” “r2” “L2” “d2” “r3” “L3” “d3” …… Please pay attention to The following pictures and tables: 12.IR6000 can be managed by dedidated software using RS232 cable.
- Page 17 Rework temperature curve to set examples...
