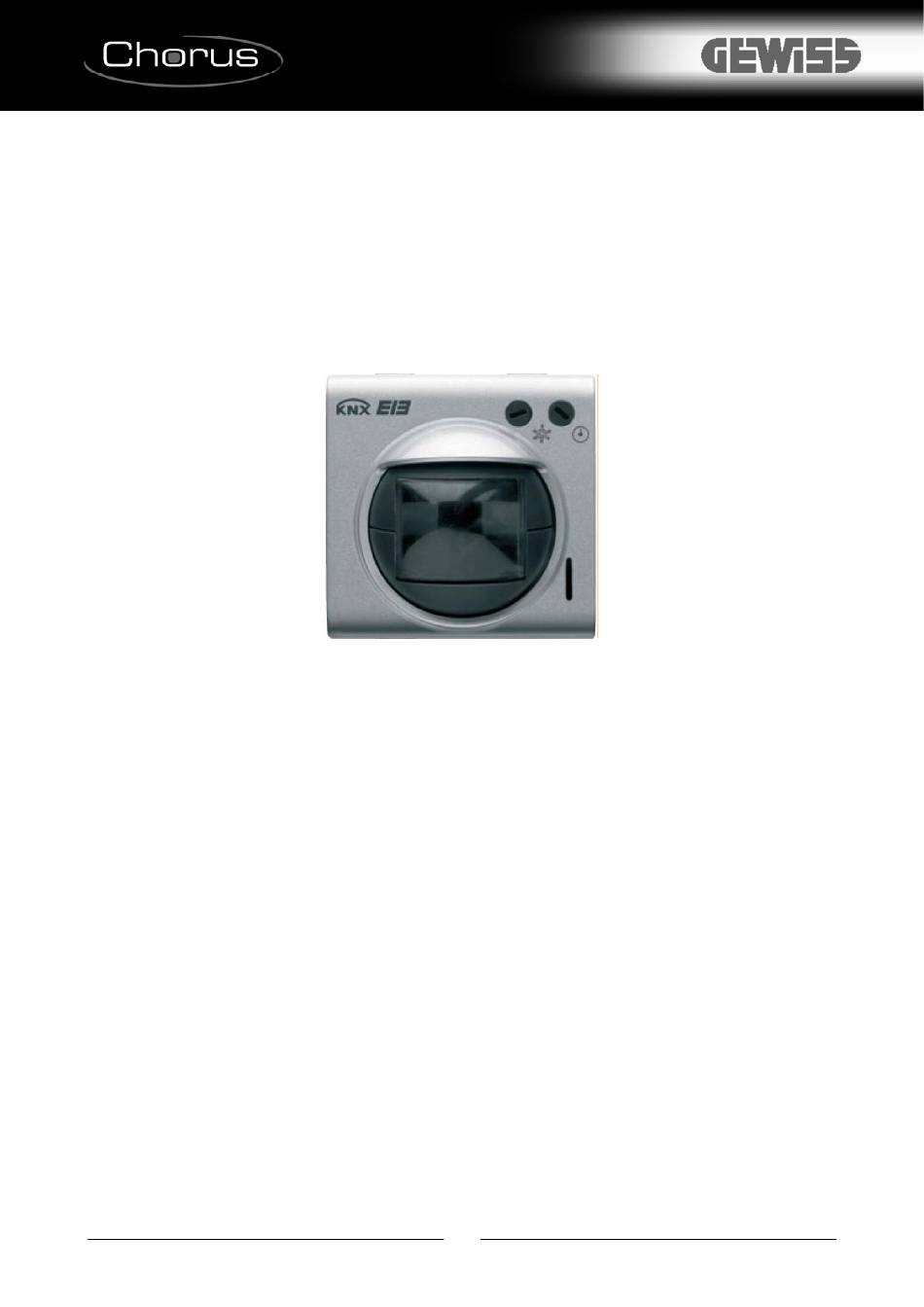

- Page 1 Easy movement detector with twilight sensor GW 10 756 GW 12 756 GW 14 756 Technical Manual...
- Page 2 Summary Introduction ..............................3 Application ..............................4 Limits to the associations ........................4 “Settings” menu ............................5 Parameters ............................5 Communication objects ........................7...
- Page 3 1 Introduction This manual describes the functions of the device named GW1x756 “Easy movement detector with twilight sensor” and how to use the ETS configuration software to change the settings and configurations.
- Page 4 2 Application The Easy movement detector with twilight sensor allows you to send timed activation commands to actuator devices using the KNX/EIB bus through which it connects to the Home Automation system, according to the movements detected and the light in the environment where the device is installed, measured by the two built-in sensors.
- Page 5 3 “Settings” menu Here it is possible to configure the programming mode between ETS mode (S-Mode) and Easy mode by the Easy controller software (Kit GW90837, Kit GW90838, GW90840) and the other functional parameters (see Diag 3.1). Diag. 3.1 Parameters 3.1.1 Programming mode This parameter determines the programming mode of the device: •...
- Page 6 3.1.2 Cycle time When the device detects movement and after assessing the brightness level detected by the twilight sensor, it sends a movement start telegram; from this moment in time, the value on the cycle time counter decrease. During the cycle time, any movement detected will not trigger the sending of a bus telegram as this would create an overflow on the bus line, so the device repeat the start telegram at the end of each cycle time;...
- Page 7 Communication objects The Settings menu makes the following communication object visible (See Diag. 3.3.): Diag. 3.3 3.2.1 Timed switch The device sends START temporization commands to the bus through this communication object following a movement detection. The enabled flags are C (communication), R (read by bus) and T (transmission). The standard format of the object is 1.010 DPT_Start, the size of the object is 1 bit and the information it contains is START temporization.
