Auto Extra DVR5200 User Manual

Installation guide

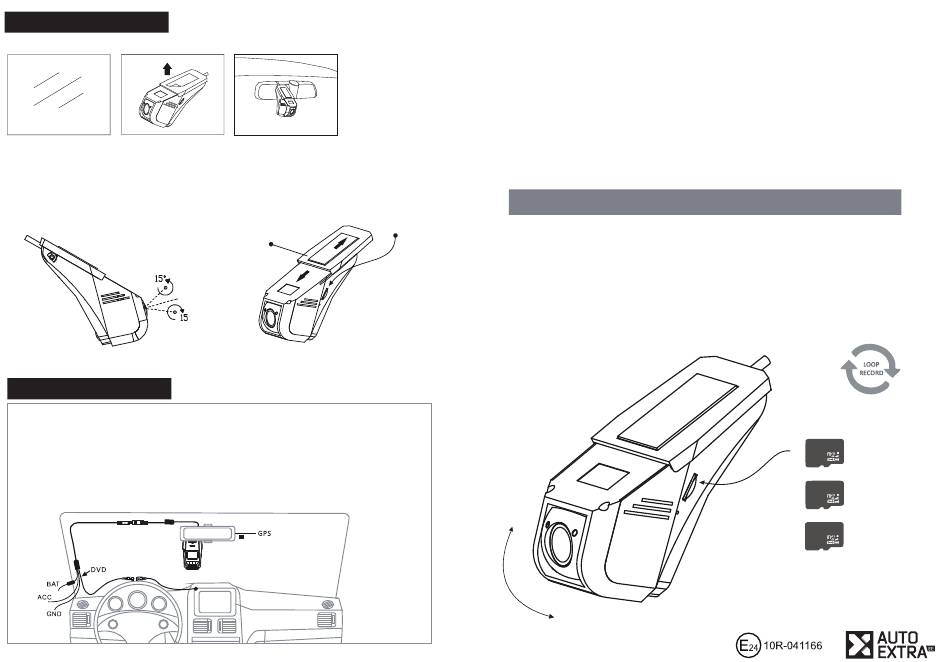

Find a suitable installation Remove the 3M fi lm
spot and clean the glass
NB! When choosing the installation spot, guarantee access to the card slot!
Optimise the angle
of the camera

Electrical connections

Yellow: constant power supply +12V
Red: ACC +12V
Black: Mass
Connect the RCA video output with the multimedia centre in the car, or with any display screen
provided with a video input. An interface module is generally required for connecting to the original
display screen. It is possible to connect the device to the rear view camera's input of the car's original
screen using an additional relay and a switch.
Fix the device on the glass
using a sticker
microSD
card slot
Mounting foot
RCA
VIDEO

USERS MANUAL

for models:
DVR5200/DVR5900

DIGITAL VIDEO RECORDER

P R O F F E S S I O N A L A U T O M O T I V E S E R I E S
> Professional installation method
> 1920 × 1080p Full HD resolution, H.264 compression
> Loop-recording to microSD card, max. 32 GB
> PARK-function with a motion sensor
> WDR-function for low-light fi lming and quality optics
STANDARDS
8
1.3 h – 1080p
GB
2.2 h – 720p
16
2.6 h – 1080p
GB
4.3 h – 720p
32
5.2 h – 1080p
GB
8.6 h – 720p
