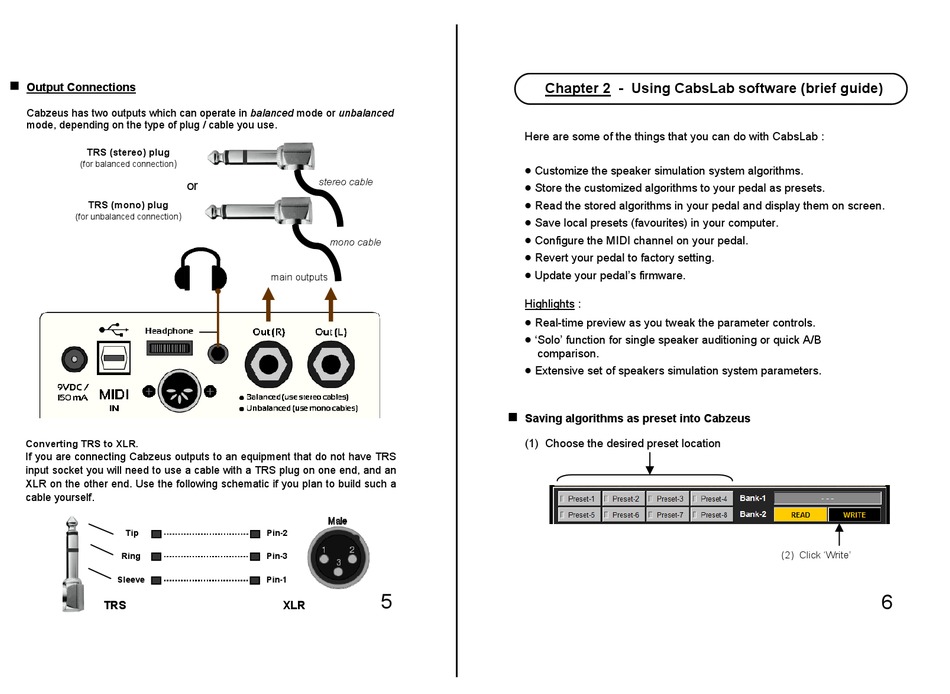

Output Connections
Cabzeus has two outputs which can operate in balanced mode or unbalanced
mode, depending on the type of plug / cable you use.
TRS (stereo) plug
)
(for balanced connection
or
TRS (mono) plug
)
(for unbalanced connection
Converting TRS to XLR.
If you are connecting Cabzeus outputs to an equipment that do not have TRS
input socket you will need to use a cable with a TRS plug on one end, and an
XLR on the other end. Use the following schematic if you plan to build such a
cable yourself.
Tip
Ring
Sleeve
TRS
stereo cable
mono cable
main outputs
Pin-2
Pin-3
Pin-1
5
XLR
Chapter 2 - Using CabsLab software (brief guide)
Here are some of the things that you can do with CabsLab :

Customize the speaker simulation system algorithms.

Store the customized algorithms to your pedal as presets.

Read the stored algorithms in your pedal and display them on screen.

Save local presets (favourites) in your computer.

Configure the MIDI channel on your pedal.

Revert your pedal to factory setting.

Update your pedal's firmware.
Highlights :

Real-time preview as you tweak the parameter controls.

'Solo' function for single speaker auditioning or quick A/B
comparison.

Extensive set of speakers simulation system parameters.
Saving algorithms as preset into Cabzeus
(1) Choose the desired preset location
(2) Click 'Write'
6
