Summary of Contents for XAC TP72-HUB2

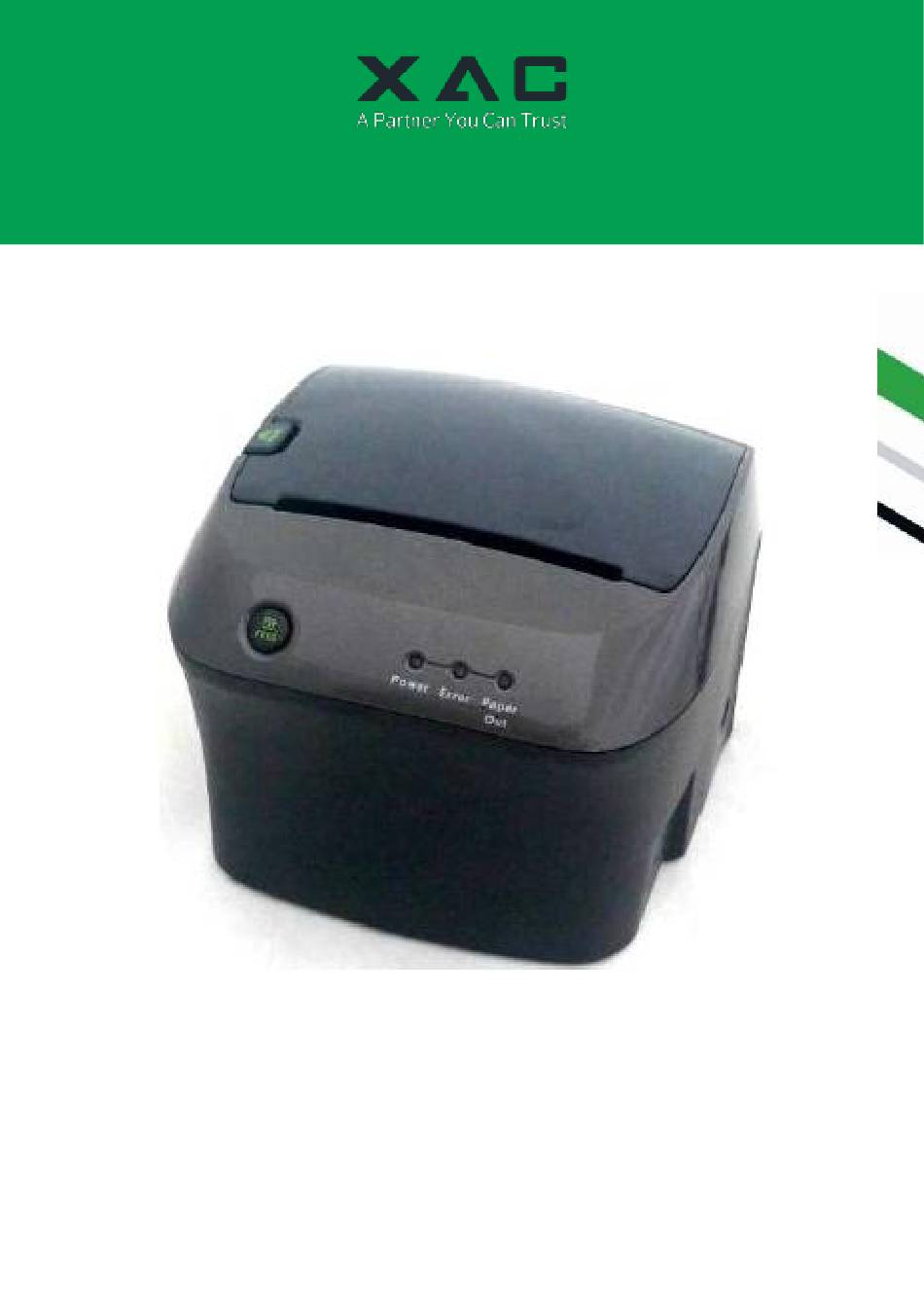

- Page 1 POS HUB ABLET NSTALLATION UIDE MODEL: TP72-HUB2...
- Page 2 - Support one USB device port located on rear of right side. (Figure 4) - Support one RS-232 ports of RJ-12 offset keyed connector. If TP72-HUB2 uses a peripheral device with this type of connector and interface, plug it into the RS-232 port on the back of the Cash drawer port (RJ11).
- Page 3 Gently press the “Open” button on the cover’s left side (Figure 10). Load a roll of thermal paper (Appleton 1012 recommended) into the TP72-HUB2. (Figure 11) Load it so that the print-side of the paper will feed out facing the operator. Close the cover by pressing down. TP72-HUB2 integrated 3”...
- Page 4 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
