Summary of Contents for BestChoiceProducts SKY4153

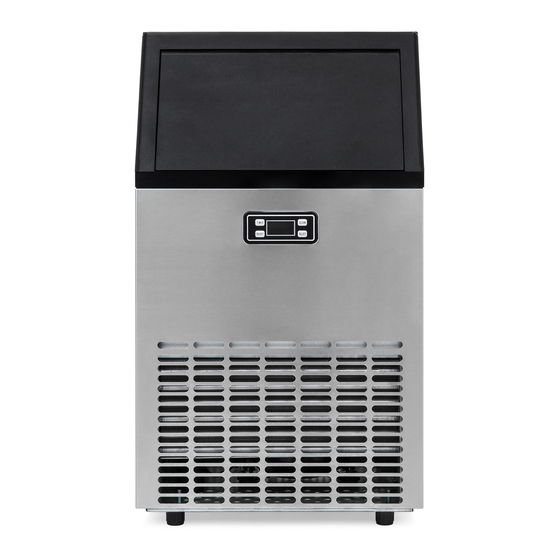

- Page 1 INSTRUCTION MANUAL Commercial Ice Maker SKY4153 Ver. 2...
- Page 2 NOTICE Please retain these instructions for future reference. • This unit is intended for indoor use only. • Place unit on a stable and level surface. • Keep unit away from direct sunlight and other sources of heat. • Using an extension cord is not recommended as it may overheat and cause a risk of fire. •...
- Page 3 PARTS FAUCET ADAPTOR WATER HOSE DRAIN HOSE ICE SCOOP 1 PC 1 PC 1 PC 1 PC DIAGRAM DOOR ICE-MAKER/ WATER TANK CONTROL PANEL WATER OUTLET (FOR DRAINING) WATER INLET AIR OUTLET Pg. 3...
- Page 4 ICE MAKER/WATER TANK WATER SEEPING PIPE ICE CUBE MODULE WATER SUPPLY PIPE ICE DETECTING BOARD WATER DRAIN PIPE Pull pipe out to manually drain water (if necessary) WATER TANK WATER LEVEL DETECTOR (INSIDE) CONTROL PANEL TIMER/CLEAN: Press to set the timer. Press and hold to enter cleaning mode. ON/OFF: Press to turn unit on/o or cancel timer.
- Page 5 SETTING UP THE ICE MAKER Remove the locking ring from the water inlet. Compress the plug, then remove it. Insert the part B water hose into the water inlet and secure it by replacing the locking ring. Screw the part A faucet adaptor onto the water faucet. Remove the locking ring. Insert the other end of the water hose into the faucet adaptor and secure it by replacing the locking ring.
- Page 6 SETTING TIMER Press the TIMER/CLEAN button, then use the + and – buttons to increase or decrease time. When in standby mode, the timer sets the time until the ice making process begins. When in ice making mode, the timer set the time until the ice making process ends. To adjust or cancel a timer, press the TIMER/CLEAN button and increase/decrease the time.
- Page 7 ERROR CODES Ambient temperature sensor not functioning Ice making problem or leak Ambient and suction tube temperature sensors not functioning Ice making cycling is longer than 35 minutes indicating no refrigerant or a non-functioning compressor ICE FULL ICON ALWAYS ON: Magnetic control switch cuto TROUBLESHOOTING Problem...
- Page 8 Best Choice Products and verified as such. All damages to items are the customer’s responsibility until the item has been received by and acknowledge by Best Choice Products as undamaged. CONTACT US; WE’RE HERE 7 DAYS A WEEK TO HELP YOU! bestchoiceproducts.com customerservice@ 844.948.8400 LEARN MORE! bestchoiceproducts.com...
Need help?
Do you have a question about the SKY4153 and is the answer not in the manual?
Questions and answers
Our ice maker is making ice but water is dripping from the front bottom corner causing a puddle. Can you tell me what the problem is?
Water dripping from the front bottom corner of the BestChoiceProducts SKY4153 ice maker could be caused by a clogged water seeping pipe. Cleaning the holes on the water seeping pipe may resolve the issue.
This answer is automatically generated
@Mr. Anderson Thank you for your quick response. I have sent a second message. Thank you!
Error code E2. What do I do?
Error code E2 for BestChoiceProducts model SKY4153 means there is an ice making problem or a leak.
This answer is automatically generated
Ice maker runs for a few cycles then gets E2 error
Ever time makes ice I get an A2 code I turn off and back on it start up makes ice fine when it shuts off I get the A2 code again any help appreciated
I have to unplug pump each cycle to get water to run over the cold plate
Regarding the SKY4153 ice maker, can the water inlet valve be replaced? Is that a part that we can order and replace ourselves?
SKY 4153 Ice Maker - I have written that our unit is dripping from the front lower corner and my husband has determined that the water valve is leaking. Is that a part we can order and repair ourselves?
