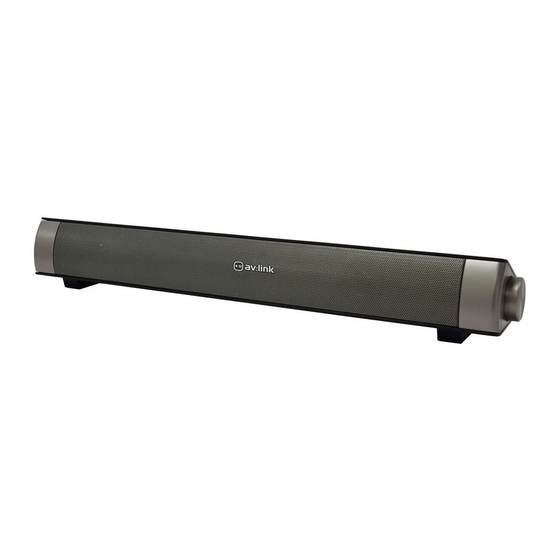

AVLink Atom User Manual

The Atom is a small yet powerful Bluetooth soundbar, providing exceptional audio response. Featuring 2 impressive 5W
speakers, delivering crisp, clear sound that belie the unit's size. Connect wirelessly via Bluetooth to any smart device or to
your TV with the 3.5mm audio lead. An internal rechargeable battery provides up to 10 hours portable use. A compact
and versatile soundbar that's the ideal fit for any home.
• Two powerful 5W speakers provide a crisp, clear sound that belie the unit's size
• Connects to any smart device wirelessly via Bluetooth
• Connects to your TV, PC or notebook via the 3.5mm audio lead (supplied)
• Direct MP3 playback via inbuilt Micro SD slot
• Up to 10 hours portable use via the internal rechargeable battery

Technical Specifications and Features

Audio output
Speaker units
Frequency response
Impedance
Bluetooth version
Bluetooth range
Connections
Power supply
Dimensions
Weight

Diagram of controls

Functions

• Power on/off: Rotate the Power/Volume knob (1&2) until a tone is heard and the LED indicator (3) lights blue. On
first use, the Atom will enter pairing mode and the LED indicator will flash blue. Once you are paired with a device,
the Atom will automatically reconnect the next time you turn it on if it's in range with the device and Bluetooth mode
is switched on.
• Volume control: Rotate the Power/Volume knob (1&2) clockwise and anticlockwise to increase and decrease the
volume to the desired level.
120.110UK User Manual
2 x 5W
2 x 40mm and Bass diaphragm
60Hz-20KHz
4 Ohms
4.2
Up to 10m
Bluetooth, Micro SD (TF), AUX (3.5mm), Micro USB (Charge only)
18650: 1800mAh 3.7V
405 x 60 x 50mm
350g
Atom: 2.0 Channel Rechargeable
Mini Bluetooth Soundbar
1. Power on/off switch
2. Volume control
3. LED indicator
4. Previous track
5. Play/pause/call/mode
change (long press)
6. Next track
7. 3.5mm AUX input
8. Micro SD (TF) slot
9. Micro USB port (charge only)
Item ref: 120.110UK
User Manual
www.avsl.com
