Horizon Fuel Cell Technologies HYDROFILL User Manual

HYDROFILL
USER GUIDE
WARNING
• Do not tamper with, disassemble or puncture the HYDROFILL
• Keep HYDROFILL away from fire, open flame, or heat source
• Keep HYDROSTIK cartridge away from fire, open flame, or heat source
• Keep HYDROFILL away from children
• Keep HYDROFILL in upright position
• Fill de-ionized or distilled water slowly and carefully to avoid overfilling the water tank
• Keep HYDROFILL in a ventilated location during operation
• Remove HYDROSTIK cartridge immediately after charging
• Do not consume the apple acid powder or the ion exchange resin pouch and
keep them away from children
• Keep all electrical connections dry at all times
SYSTEM OVERVIEW
The HYDROFILL system is designed to refill
Horizon's HYDROSTIK solid hydrogen cartridges
automatically, which uses a proton exchange
membrane (PEM) electrolyzer based system.
The HYDROFILL separates hydrogen and oxygen
from water and stores hydrogen in a safe, solid
form using special metal alloys contained in the
HYDROSTIK cartridges.
ITEMS LIST
a. HYDROFILL unit
b. AC-DC adapter
c. Apple acid powder
d. Ion exchange resin pouch
e. Cartridge cover
SYSTEM FEATURES
Quiet, safe and convenient hydrogen supply
Designed to refill HYDROSTIK cartridges
Automatic cartridge refilling system
High hydrogen purity 99.99%
Optional solar power supply

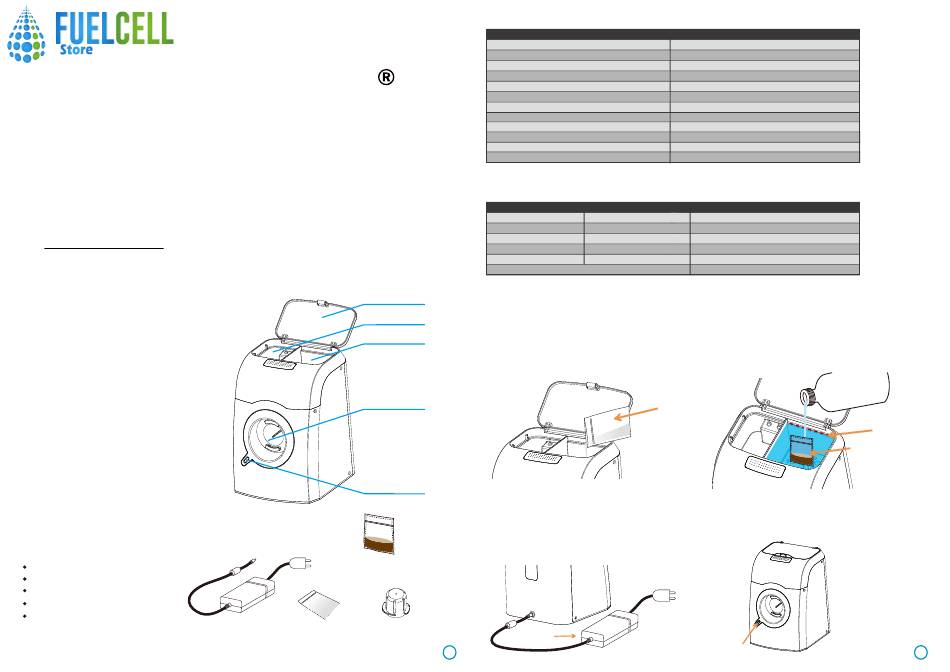

(b)
309710141
Water tank cover
Waste water tank
HYDROSTIK
cartridge port
Status indicator
(a) HYDROFILL unit
(d) Ion exchange resin pouch
AC-DC adapter (c) Apple acid powder (e) Cartridge cover
SPECIFICATIONS
Stack type
Dimensions (W x D x H)
Weight
Rated power
Water input
Water temperature
Water consumption
Hydrogen output pressure
Hydrogen generation capacity
Purity
Outlet specification
Refilling time for one HYDROSTIK
The specifications are subject to change without notice.
Status indicator lights
Green
on
on 1 second, off 1 second
green 1 second, red 1 second
One year limited warranty.
OPERATION INSTRUCTIONS
Water tank Open the water tank cover located at the top of the HYDROFILL unit. Pour the entire contents of one
1.
bag of apple acid into the water to mix with water completely before using the HYDROFILL ( Fig. A）.
Carefully fill de-ionized or distilled water into the water tank until water reaches the ridge level in the
tank ( Fig. B）. Place the ion exchange resin pouch* (d) into the water tank (Fig. B). Close the cover.
Fig. A
2. Connect the AC-DC adapter to the unit and an AC power supply (Fig. C).
Once connected, a green LED light on the front of the unit should start to flash (Fig. D).
AC-DC adapter
1
Proton exchange membrane electrolysis cell
145x153x208mm (5.7x6x8.2in)
1.8Kg ±5% (3.97Lbs±5%)
≤30W
Pure or distilled water
20-65°C (68-149°F)
Approx. 20ml/hr (1.2in /hr)
3
0-3.3MPaG (0-478.62PSI)
0-3L/hr (0-183in /hr)
3
99.99% (designed for HYDROSTIK )
Designed for HYDROSTIK
Max. 6 hours (Depends on ambient temperature.)
Red System Status
HYDROSTIK cartridge is full
Waiting to fill HYDROSTIK cartridge
on HYDROSTIK cartridge is being filled
on 1 second, off 1 second Add water or empty waste water tank
See troubleshooting No.8
Apple acid
powder
Fig. B
*Note: DO NOT open the ion exchange
resin pouch. Just place it into the water tank.
Fig. C
The LED flashes green
Water level
Ion exchange
resin pouch
Fig. D
2
