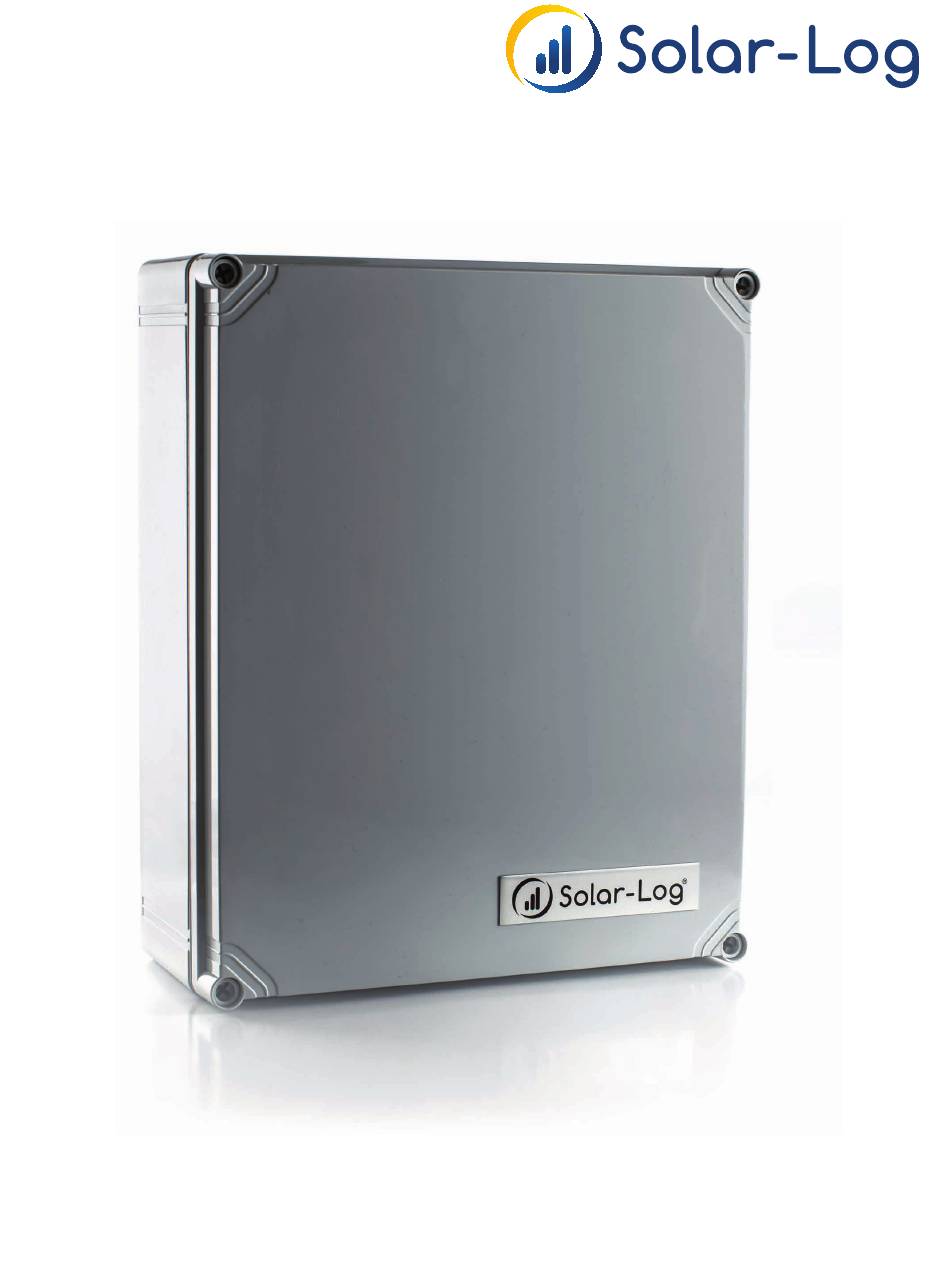

- Page 1 ® Solar-Log® Assembly Guide Solar-Log 2050...
- Page 2 Figure 1: Solar-Log 2050, CTs, Solar-Log® Data Logger The shipment comes with the following components: • Solar-Log 2050 (art. no. 840850: In an indoor/outdoor enclosure, the assembly includes a revenue grade meter, power supply, fusing blocks, shorting blocks, RS485/422 ports, and a swing frame •...
- Page 3 Assembling Your System Step 1 Remove the front cover on the Solar-Log 2050 enclosure by unscrewing the 4 plastic captive screws. Step 2 Remove the 2 screws (Figure 2) & open the swing frame. Figure 2: Swing frame screws...
- Page 4 Step 3 Mount the Logger to the swing frame using the screws, nuts & washers already attached to the black swing frame (Figure 3). Be sure to guide wires through the wire canal on the back of the logger (Figure 4). Figure 3 &...
- Page 5 Step 4 Connect the Power, Port A & Port B connectors to the Logger (Figure 6). Figure 6: Logger connections Step 5 Mount the complete assembly using the 4 pre-drilled mounting holes. Do not drill or screw di- rectly into the enclosure (Figure 6). Figure 6: pre-drilled mounting holes...
- Page 6 Technical Support For further support please call (203) 702 7189 to speak with a member of our technical support team, or email the support team at us.support@solar-log.com. ® Solar Data Systems, Inc.
