Cubix Xpander Desktop Elite User Manual

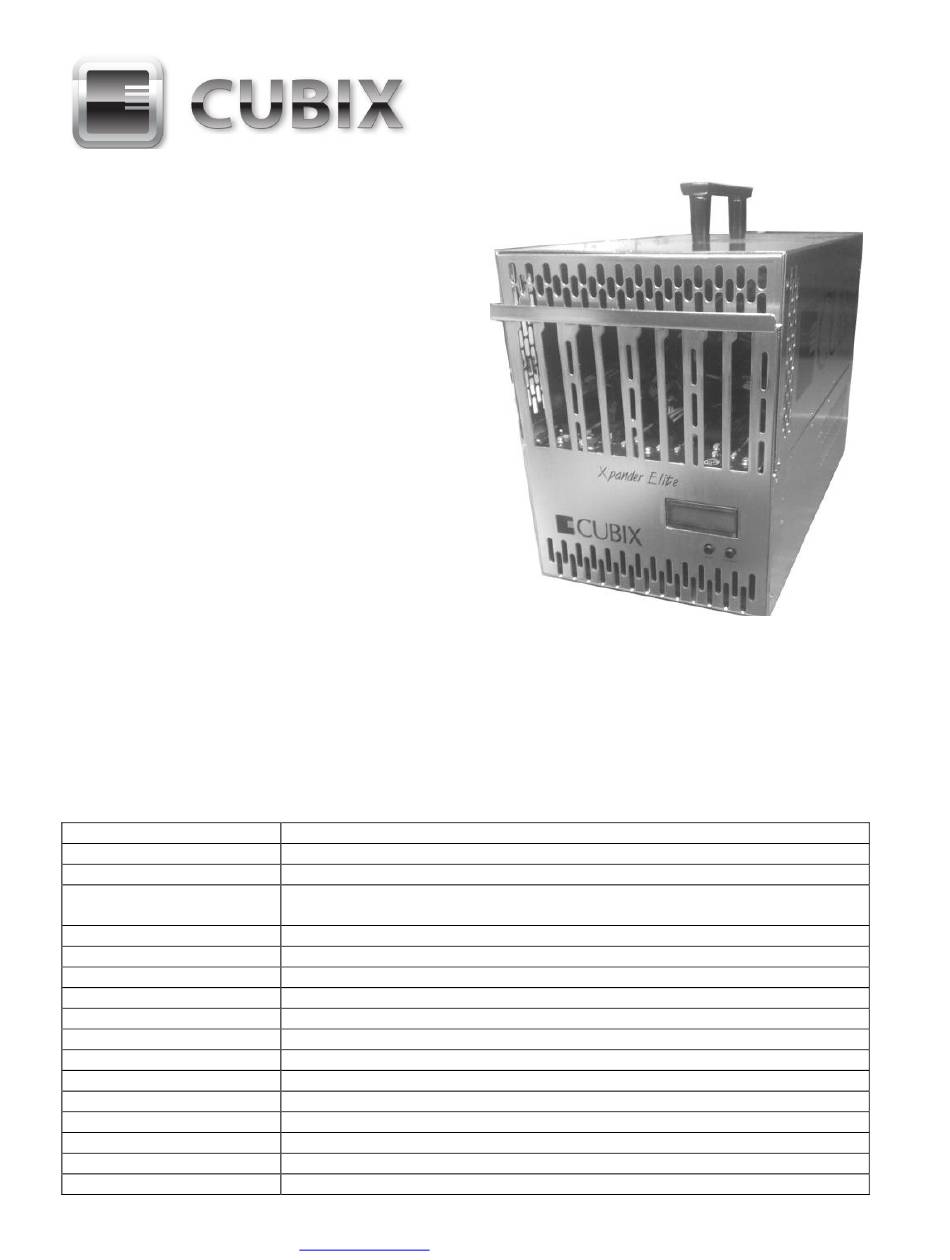

Xpander Desktop Elite (see the image at the
right) is a portable PCI Express (PCIe)
expansion enclosure that enables connection of
graphics processing units (GPUs) or other
controllers to a host computer. The host must
provide one PCIe x16 expansion slot available
for the host interface controller (HIC).
Install the x16 HIC and cable in a PCIe Gen 3
x16 slot to provide a theoretical 128Gbps
connection to Desktop Elite with four slots.
Desktop Elite provides four PCIe Gen 3 x16
slots on one mainboard for double-wide GPUs
that are NVIDIA® Compute Unified Device
Architecture (CUDA) or OpenCL-enabled.
Desktop Elite supports other PCIe adapters as
well. It supports applications that exploit
multiple GPUs, including rendering graphics or
high-performance computing (HPC).
Desktop Elite standard version features a 1,500Watt power supply, 4 x 8P + 8P auxiliary power
connectors and a fan that cools 4 x double-wide, actively-cooled GPUs. Optional versions
feature either a 1,600Watt power supply or a 1,200Watt power supply with 4 x 8P + 6P auxiliary
power connectors and a fan that cools 4 x double-wide, actively-cooled GPUs or other PCIe
cards. Adjustable fan settings (see page 8) allow quieter operation if fewer GPUs or single-wide
GPUs or other PCIe cards are installed.
Xpander Desktop Elite Technical Specifications
Expansion slots, x16 std
Number of slots / MIB
Form factor support
PCIe device support
Connecting cable
Connector duty cycle
Length, standard
Length, optional
PCIe x16 HIC
In host PCIe Gen 3 slot
Front panel LCD
Cubix Corporation
Power supply status
Temperature status
Fan status
PCIe link status
x16 cable
Cubix Corporation  2800 Lockheed Way  Carson City, NV 89706-0719  Page 1
Sales 800.829.0550 
Xpander Desktop Elite
Gen 3 User Guide
PCI Express x16 mechanical / electrical on 1 Main Interface Boards (MIB)
4 slots / 1 MIB
4 double-wide, full-length, full-height controllers / adapters
PCIe cards must adhere to PCIe specifications for power and dimensions:
maximum 250Watts and 4.38in (111.15mm) H x 10.51in (267.00mm) L
External PCI Express x16, 136-pin
250 mating cycles maximum per connector
2.00meters (78.74inches or 6.56feet)
1.00meters (39.37inches or 3.28feet)
Install in a PCIe x16 slot in the host computer
Provides theoretical 128Gbps data transfer
Main menu = left button; sub-menu = right button (See detail on page 7.)
MIB assembly and revision; management firmware revision
Standard main power; optional redundant power
3 sensor readouts in degrees Centigrade (C)
Fan status, voltage percent (%) speed
x16 cable connected; 8.0Gbps x16 link speed
Connected or not connected status
 sales@cubix.com  Xpander-desktop-elite-g3 20190201
http://www.cubix.com
