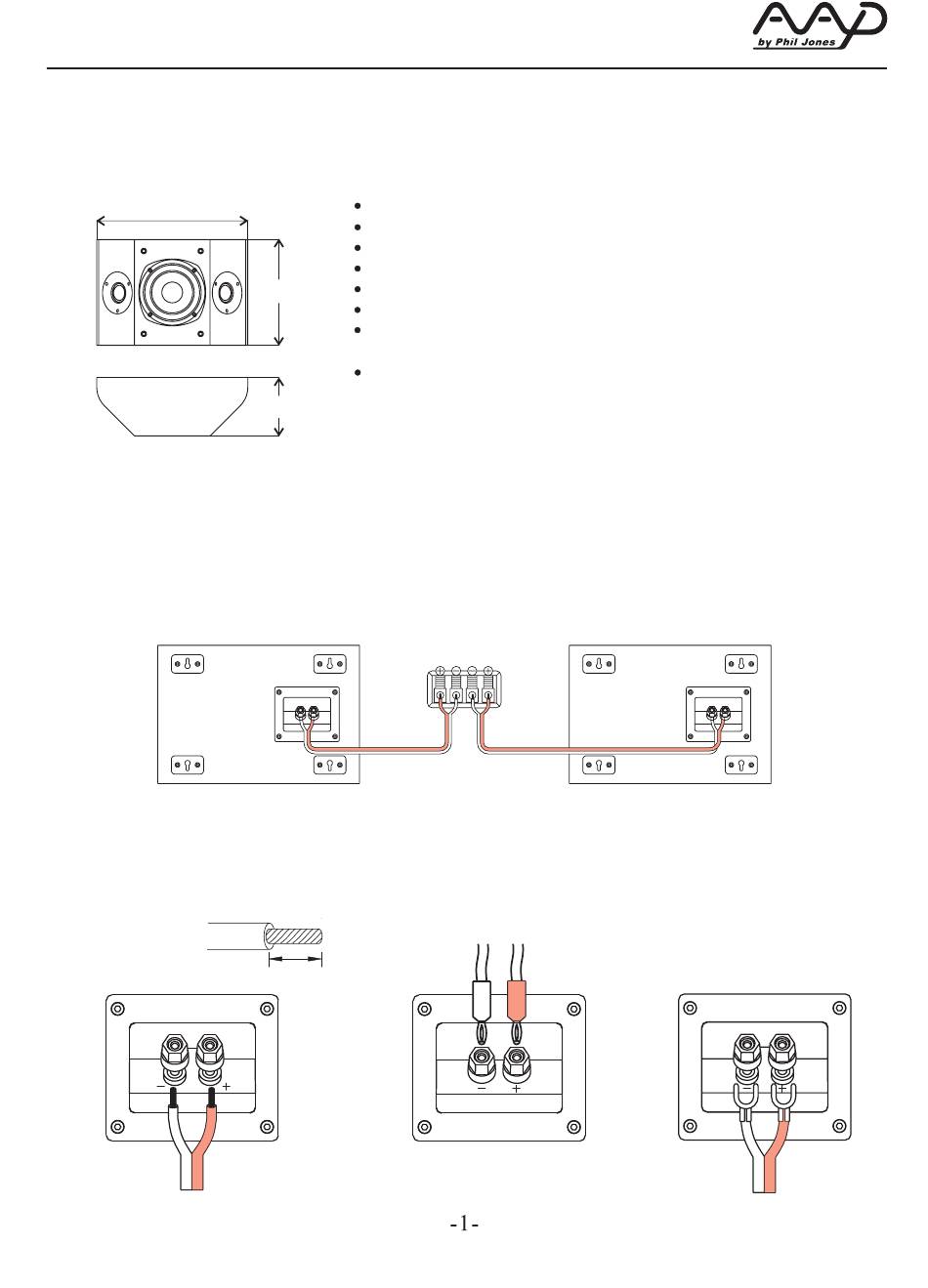

SP-1 LOUDSPEAKERS OWNER'S MANUAL
SPECIFICATONS
292 mm(11.5 Inch)
CONNECTIONS
Connect Speaker To Amplifier
Be sure to turn off your Amplifier before connecting or disconnecting speakers.
Do not operate the speaker with power exceeding limitation,or it may damage the speaker.
Speaker Cable Options
You may choose one of the following three ways to connect the cable with speaker terminal:
A. Connect With Speaker Cable
Twist axial wire
Frequency Ranges: 70Hz – 20kHz (±3dB)
Recommended Amplifier Power Range: 20 – 100 watts
Sensitivity: 88dB
Nominal Impedance: 4Ω
Low-Frequency Drivers: 5"x1
204(8.03Inch)
High-Frequency Drivers: 1"x2
Dimensions (H x W xD): 204x292x113 mm
Weight: 7.7 lbs /3.5 kg
113(4.45 Inch)
All features and specifications are subject to change
without notice
AMPLIFIER OUT
Right
B. Connect With Banana Plug
10mm
8.03x11.5x4.45 Inch
.
Left
C. Connect With Y Plug
Advertisement
Summary of Contents for AAP SP-1
- Page 1 SP-1 LOUDSPEAKERS OWNER’S MANUAL SPECIFICATONS Frequency Ranges: 70Hz – 20kHz (±3dB) 292 mm(11.5 Inch) Recommended Amplifier Power Range: 20 – 100 watts Sensitivity: 88dB Nominal Impedance: 4Ω Low-Frequency Drivers: 5"x1 204(8.03Inch) High-Frequency Drivers: 1"x2 Dimensions (H x W xD): 204x292x113 mm 8.03x11.5x4.45 Inch...
- Page 2 SP-1 LOUDSPEAKERS OWNER’S MANUAL The Mountings The SP-1 speaker is designed to be mounted on a wall. Each speaker has four keyholes in the rear to allow either left- or right-side placement. Each speaker will require two 1-1/2" (38) #4 wood screws fastened to a wall stud.
