Optiled 2043287012 Instruction Manual

INSTRUCTION MANUAL
Round 200-1800 Downlight
RISK OF FIRE OR ELECTRIC SHOCK - USE IN DRY LOCATION ONLY.
RISK OF FIRE OR ELECTRIC SHOCK – DO NOT USE WHERE DIRECTLY EXPOSED TO WATER.
INSTALL THIS LUMINAIRE THAT HAS THE CONSTRUCTION FEATURE DIMENSION SHOWN IN DRAWINGS.
TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR
OTHER SHARP OBJECTS.
DO NOT MAKE OR ALTER ANY OPEN HOLES IN AN ENCLOSURE OF WIRING OR ELECTRICAL COMPONENTS
DURING KIT INSTALLATION.
ALWAYS CONNECT GROUND LEAD TO FIXTURE WHERE APPLICABLE.
ACCESS ABOVE CEILING REQUIRED.
THIS PRODUCT IS NOT SUITABLE FOR COVERING WITH THERMAL INSULATED MATERIAL.

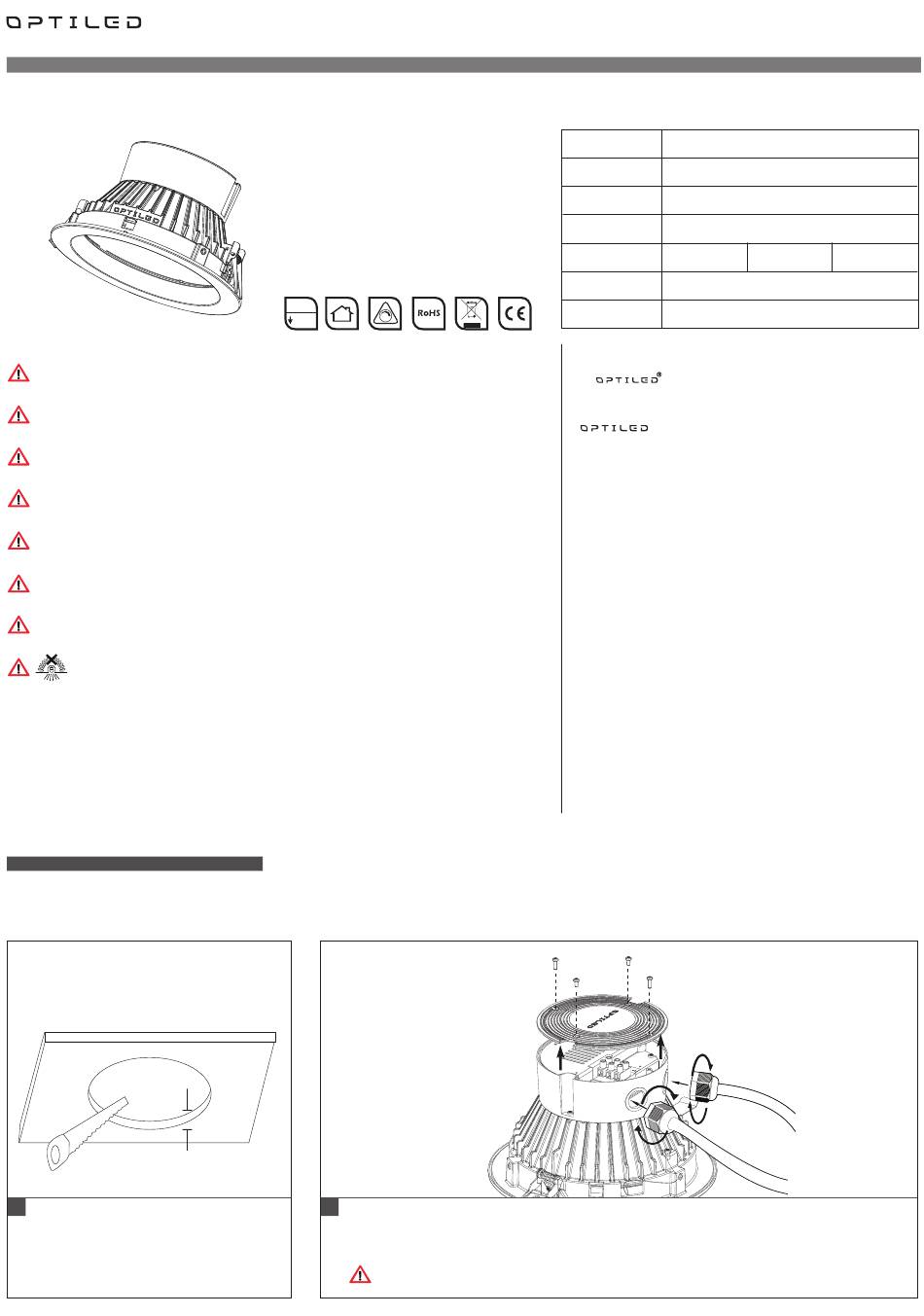

Installation Method

WARNING : 1. This product is not designed for on-site maintenance and may not be disassembled.
2. Always turn off power prior to installation or replacement.
Ceiling
Ø205mm
5-16mm
1
1
Open a round hole with 205mm diameter on
the mounting surface (thickness of material
between 5~16mm).
Art-Nr.: 2043287012
2043407012
* **
IP20
IP44
**Compliance with Clipsal E32 Triac Dimmer
*IP20 Recessed part
IP44 Accessible part
2
Open the wiring compartment cover with a screw driver. Put the main wire through the hole on the
waterproof cable gland (not provided, UL/ CUL listed watertight type cover IFFX/7 is recommended.
Grounding is required if metal cover was used.)
Warning: # 18AWG solid or stranded copper conductor should be used.
Should only handled by qualified electrician.
2800K
4000K
Voltage
Wattage
Rated Current
Color
Dimmable
Limited Warranty
*Technical data are based on optimum conditions and actual performance may vary.
Warranty : Please contact local Optiled office or distributors for more information.
The
© 2012 OPTILED, all rights reserved.
Country of origin : China
Email: info@optiled.com
Website‛ www.optiled.com
09-3112.072
20-2013
Round 200-1800 Downlight
220V~240V AC 50/60 Hz
28W
135mA
Warm White Natural White
Compliance with Clipsal E32 Triac Dimmer
3 years.Please refer to Optiled L im ited Warranty Statement.
logo is a registered trademark.
Daylight
PM-011/09/12
