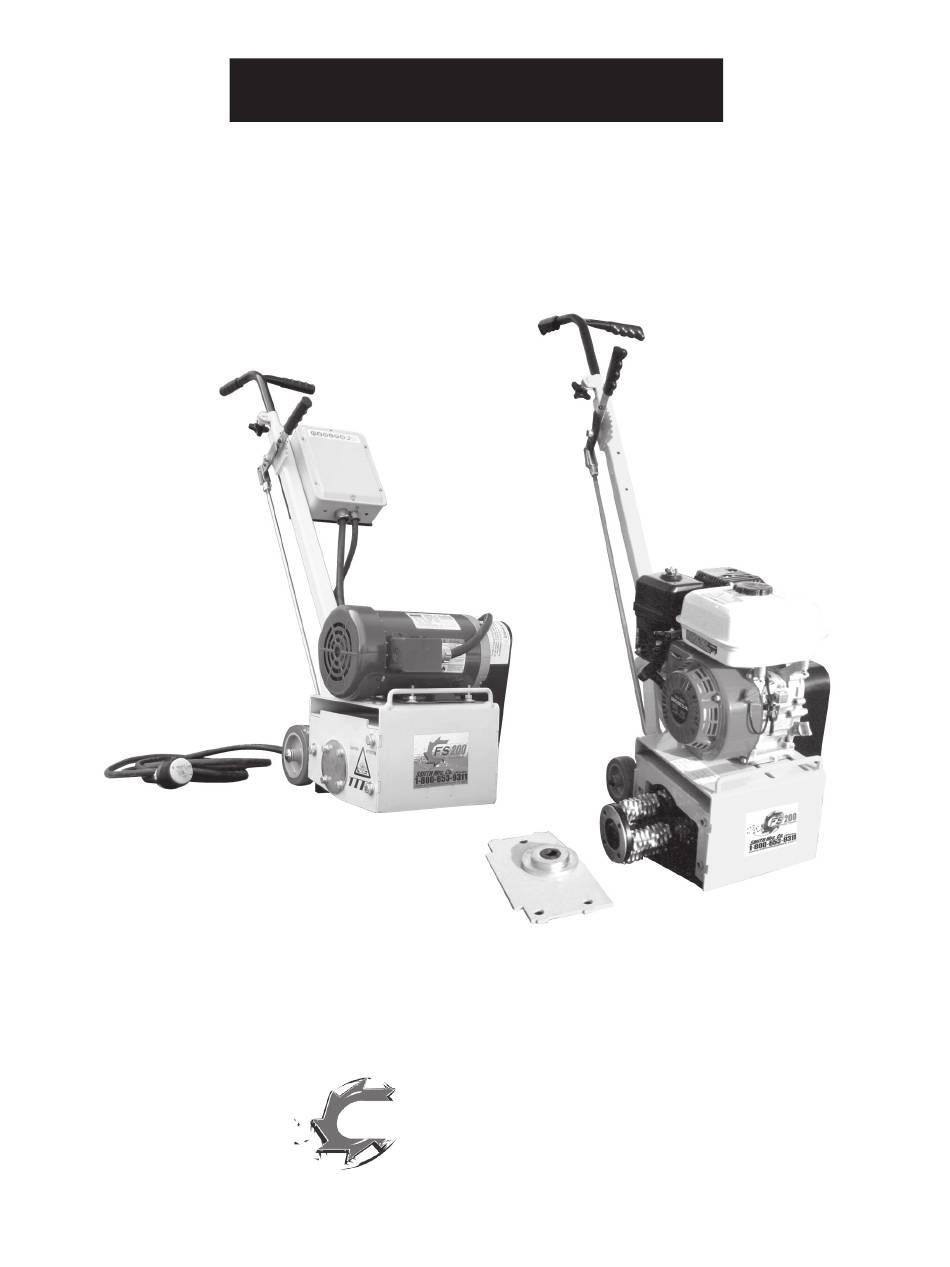

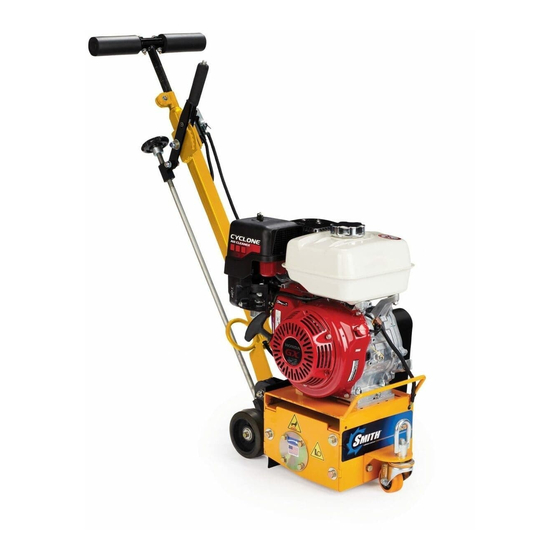

- Page 1 FS200™/FS209™ Compact Remover User Guide & Parts List Manual SMITH MANUFACTURING CUTTERS / REMOVERS / PARTS / SUPPORT 1-800-653-9311 www.SmithMfg.com Phone: 954-941-9744 • Fax: 954-545-0348...
-
Page 2: Table Of Contents
FS200/FS209 INDEX Page Contents Index Introduction Safety Guidelines Your FS200 Surface Preparator Cutter Drum Assembly Machine Start-Up Transporting & Substrate Removal Storage & Ordering Troubleshooting 11-12 Parts List 13-14 Optional Electric Motor Drum Assembly Carbide Prep-It™ Strip Drum Assembly 17-18... -
Page 3: Introduction
FS200/FS209 INTRODUCTION Congratulations on purchasing the FS200™/FS209™ Compact Remover from SMITH Mfg. Company. The FS200™ uses a 5.5 Honda Engine, while the FS209™ uses a 9 HP Honda Engine. Your machine will: • Clean surfaces impacted by grease, oil, plastics, tars, resins, tile adhesives, ice and more • Plane or mill asphalt and concrete surfaces • Remove high spots in curbs and gutters • Eliminate trip-hazards on concrete sidewalks • Mill areas for rumble strips • Clean out cracks and joints • Create anti-slip patterns in walkways and barns • Prepare surfaces for new coating applications • Permanently remove all road and surface coatings to include:... -
Page 4: Safety Guidelines
FS200/FS209 SAFETY GUIDELINES Incorrect use of the surface planer can result in property damage, personal injury, or death. Be sure to read and follow all directions and precautions as outlined in this manual. Operation • Get acquainted with the controls (pg.3) • Always wear protective equipment, including ear protection, breathing apparatus, steel-toed shoes, and goggles. -
Page 5: Your Fs200 Surface Preparator
FS200/FS209 YOUR FS200™ SURFACE PREPARATOR Please take a moment to familiarize yourself with the FS200™’s controls, as well as some of the features of your new machine. For Assembly diagrams and parts numbers, please refer to pages 9-16. Read the engine manual before preparing the engine for starting. Depth Control Lever... -
Page 6: Cutter Drum Assembly
FS200/FS209 CUTTER DRUM ASSEMBLY CARBIDE or STEEL? When configuring your cutter drum for removal, one of the most important questions to ask is: “Which cutter type do I use, carbide or steel?” Tungsten carbide will produce a smoother surface finish if set up properly: without spacers, in an offset pattern. Professionals use SMITH’s Ultra-Premium tungsten carbide cutters to save time and money. NOTE: Only SMITH Brand Ultra-Premium Tungsten carbide is the most cost-effective cutting tool and lasts up to 25x longer than conventional cutters while removing 5x faster on asphalt or concrete. -
Page 7: Machine Start-Up
FS200/FS209 MACHINE START-UP Do not start machine while drum is in contact with the ground. Doing so can cause the operator to lose control of the machine, resulting in property damage and/or personal injury. 1) Open the fuel cock on the gas tank and then place the throttle lever at the “Fast Idle” position. 2) Start the engine, open choke slightly to prevent flooding. 3) Move throttle control to open or run position when engine is warmed up. -
Page 8: Transporting & Substrate Removal
FS200/FS209 Transporting During transport, loading and unloading of the scarifier by means of lifting devices, use appropriate slings, or hooks on the lifting points, provided for this purpose. The load-carrying capacity has to be sufficient and secure such that they cannot turn over. Make sure that no one is endangered by the machine turning over. When being transported on vehicles, precautions have to be taken that the scarifiers are secured and do not move. SUBSTRATE REMOVAL Adjust the height of the cutter drum with the Depth Control Lever. Set the depth of cut to allow the cutters to go through only the materials to be removed. Make certain the the drum is positioned to where only the cutters strike the surface, and that the drum assembly never comes into contact with the substrate. - Page 9 FS200/FS209 STORAGE • Shut off fuel valve and siphon all excess fuel. • Start engine and run until it stalls. • Remove spark plug and pour two ounces of motor oil into cylinder and slowly crank the engine to distribute oil to prevent rust during storage. • Replace spark plug and store machine upright in a cool, dry, and well-ventilated area. Maintenance Checks According to the conditions and frequency of use, scarifiers have to be checked f or safe operation at least once a year by skilled technicians, such as those found at the manufacturer’s service depots, and have to be repaired if necessary. ORDERING When ordering please specify the model and serial number of the machine.
-
Page 10: Troubleshooting
FS200/FS209 TROUBLESHOOTING If engine does not start, read pg. 5 Problem Possible Reason(s)/Solution(s) Cutters wearing unevenly/prematurely Drum is too low, Incorrect set-up, Material build-up, Cutters too tightly loaded, and/or Wrong cutters for the job. Cutter shaft breakage prematurely Drum too low, End plates worn, Shafts worn, and/or Wrong cutter set-up. - Page 11 FS200/FS209 Parts List ILL # Description Part Number Qty. ILL # Description Part Number Qty. Housing 511.1063.2 16 E Hex Head Bolt 506.1008 Dust Flap Retention Bar 511.1021.240 Plain Washer M12 991.1001.12 Dust Flap 511.1022.240 G Nylon Insert Nut 506.1009 Hex Screw M10 x 20 998.1009.25 Honda Engine w/oil alert Spring Washer 991.1020.10...
- Page 12 Cap Screw M8 x 12 997.1008.12 Pulley Spacer 506.1007 Drive Pulley w/set Screw, Lower 518.1006 Engine Spacer 302.1005.9 Engine Pulley w/set Screw, Upper for 5.5 HP (FS200) 518.1005 for 9 HP (FS209) 518.1009 Pulley Retaining Washer 302.1008 Bolt 5/16-24 x 1” 998.1035.16 Belts, V for 5.5 HP SPZ 710 (for early gas models) 967.1010.710...
-
Page 13: Optional Electric Motor
FS200/FS209 Optional ELECTRIC MOTOR ID # PART # QTY. DESCRIPTION 150 ES-200-698 Electric Motor, 230V ES-200-1209 Starting Condender ES-200.1210 Operating Condenser ES-200-12101 Holder for Condenser 154 ES-200-12102 Terminal Box Cover ES-20-12111 Fan Cover ES-200-12113 ES-200-1211 Relay ES-200-7616 Hexagon Screw ES-200-7633 Conical Spring Washer ES-200-762... - Page 14 FS200/FS209 Optional ELECTRIC MOTOR ID # PART # QTY. DESCRIPTION ES-200-1066 Switch Complete ES-200-1047 Lower Switch Housing 232 ES-200-1060 Circuit Breaker ES-200-1052 Undervoltage Release ES-200-10471 Upper Switch Housing ES-200-1048 Emergency Stop Switch ES-200-1151 Plug 237 Not Used ES-200-1101 Lead Wire ES-200-1102 Connection Cable...
-
Page 15: Drum Assembly
FS200/FS209 Drum Assembly ILL# P/N Oty. Description 504.4021.12 Drum Assembly (includes #2 - #5) S-507.1001 Cutter Shaft (12 mm) 504.2035 Retaining Plate 998.1005 Lock Nut 990.1001 Cap, Screw CF2515™ 5 Spike Tungsten Carbide Cutter CF2516™ 6 Spike Tungsten Carbide Cutter CF2535™ 5 Edge Carbide Scraping Cutter CF2519™ 7 Edge Carbide, Angled Scraping Cutter HS1003™... -
Page 16: Carbide Prep-It™ Strip Drum Assembly
FS200/FS209 Carbide Prep-It™ Strip Drum Assembly P/N: 8200.02 The rubber “Prep Strip™” drum comes preset with strips installed in a staggered pattern to ensure contact with the surface being stripped. The following guidelines will show you how to get the longest life out of your drum: • After installation, lower the drum slowly to begin contacting the surface. • Lower only enough to contact the surface and do the job. • Excess pressure only increases wear, not cutting speed. • Run engine at moderate speeds. -
Page 17: Cutter Set-Up
FS200/FS209 Cutter Set-Up CARBIDE FLAIL CUTTER SET-UP Note: The following diagrams are intended to guide you trough general cutter set-ups. Quantities of Cutters and Spacers may vary, depending on the finish you desire. Placing more cutters on each shaft will provide a smoother finish. Adding spacers will give a more coarse finish. Aligning the cutters will create a groove pattern. CF2515 CF2516 Offset with spacers to prevent grooving GROOVE FINISH GENERAL FINISH FINE FINISH SUPER-FINE FINISH Align Cutters and Spacers 40 CUTTERS (approx.), 76 CUTTERS (approx.) 112 CUTTERS (approx.) 2 Spacers per Cutter... - Page 18 FS200/FS209 Cutter Set-Up SPECIAL TUNGSTEN CARBIDE MILLING SCRAPER MILLING SCRAPER USE INSTRUCTIONS: Milling Scrapers (CM2535™) are not made for cutting into portland cement surfaces. They are made for removing materials in or on soft asphalt or removing thick film coatings on top of smooth concrete surfaces only. If you need to cut concrete, please use SMITH’s Ultra-Premium tungsten carbide spike cutters (CF2515™ and CF2516™). Make certain the special milling scrapers are loaded on the drum in the proper direction, whereby the leading carbide edge will cut first. Loading the scrarpers back- wards will damage the cutters and the drum. CM2535™ Setup (Note: Quantity of Cutters and Spacers may vary).
-
Page 19: Recommended Spares List
FS200/FS209 Recommended Spares List Description Oty. Part Number Spares Kit (Wear Parts) 500.2090.1 Cutter Shaft (P/N: 500.1007) Ball Bearing 6006 2RS (P/N: 979.1000.18) Ball Bearing 6303 2RS (P/N: 979.1000.12) V Belts* Lock Nut 1 979.1020.1 Tabbed Washer 979.1021.1 Hexagon Drive Shaft 513.1000.1 Dust Flap 511.1022.240 *Specify 5.5 HP (P/N: 967.1010.710) or 9.0 (P/N:961.1010.750) HP Engine 1/2008 SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com... - Page 20 FS200/FS209 Edger Assembly Item Description Oty. Part Number Edger Assembly 500.2020.1 c/w Bare Drum Edger Assembly 500.2020.2 c/w Carbide Cutter Drum 1 Chassis Mk1 FS200 1 511.1030 Chassis Mk2 FS200 1 511.1064 Chassis to suit Von Arx FR200 1 511.1050 Chassis to suit Airtec RT200 511.1065 Cover Plate 511.1031.1 Cover Plate 511.1054...
-
Page 21: Edger Assembly
990.1001.5 TCT Cutters 521.4000.1 Washers 506.1000.2 Beam Cutters 48 520.2005 Fitting the edher attachment to the FS200 Washers 506.1000.2 allows the operator to use the scarifier to within 15 mm of the wall. To fit the edger attachment, remove the sideplate and drum. Replace with edger attachment, which has an extended bearing housing which slides onto the main drive shaft. The standard drum cannot be used with the edger attachment. -
Page 22: Maintenance Log
FS200/FS209 MAINTENANCE LOG WARRANTY CLAIMS The manufacturer reserves the right to change or improve the machine design without assuming any obligation to update any products previously manufactured before this manual. It is the customer’s responsibility to complete the warranty card and mail it to the seller within 10 days from the date of purchase. - Page 23 FS200/FS209 Limited Equipment Warranty All statements, technical information and recommendations contained in seller’s literature are based on tests believed to be reliable, but the accuracy or completeness therof is not guaranteed, and the following is made in lieu of all warranties, expressed or implied.
-
Page 24: Warranty Activation
FS200/FS209 PRE-OPERATION INSPECTION AND WARRANTY ACTIVATION After the machine has been completely setup, the customer is to inspect the following. After each item is checked, fax back to (954) 545-0348 to activate your warranty. Pre-Operation Inspection: [ ] No parts or components on the machine have been damaged in shipment. Check for things such as dents and loose, broken, or missing parts; correct or replace as required. [ ] All bolts and fasteners are in place and tightly secured. [ ] Bearings have been properly lubricated; see Lubrication information in this manual. [ ] Engine/Motor started; drive belt is tight and performing to specs. - Page 25 SMITH Manufacturing 1610 South Dixie Highway Pompano Beach, FL, 33060 Toll Free: 800.653.9311 Phone: 954.941.9744 Fax: 954.545.0348 Email: info@SmithMfg.com Web: www.SmithMfg.com...
