Summary of Contents for Rober Limited NoDec Airstream 3

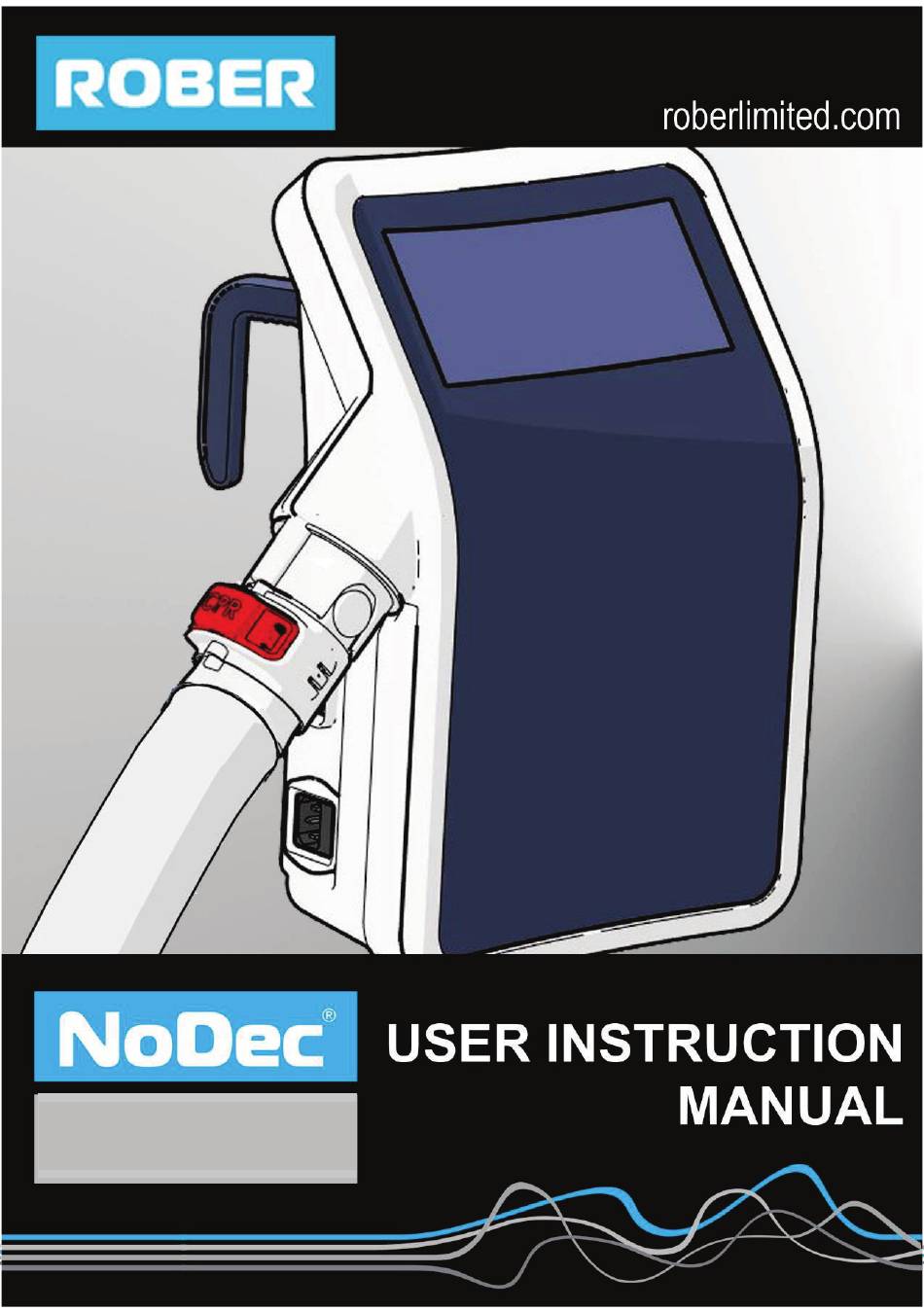

- Page 1 ® NoDec AIRSTREAM 3 User Instruction Manual AIRSTREAM3 Version 1.0 May 2016 Pg. 1...
- Page 2 ® NoDec AIRSTREAM 3 User Instruction Manual Version 1.0 May 2016 Pg. 2...
-
Page 3: Nodec ® Airstream
® NoDec AIRSTREAM 3 User Instruction Manual INSTRUCTIONS FOR USE AIRSTREAM3 Version 1.0 May 2016 Version 1.0 May 2016 Pg. 3... -
Page 4: User Instruction Manual
® NoDec AIRSTREAM 3 User Instruction Manual Version History Implemented Revision Approved Approval Version Reason Date Date Ben Smith M Hutson May ‘16 Original copy Version 1.0 May 2016 Pg. 4... -
Page 5: Table Of Contents
® NoDec AIRSTREAM 3 User Instruction Manual Contents Introduction ......................... 7 Further Information ..................... 8 Contraindications ....................... 9 Descriptions of Symbols ....................9 List of Components ....................10 General Cautions / Warnings ................... 12 Installation ......................... 14 Display Screens / Operation Modes ................ 18 Turning On ........................ - Page 6 ® NoDec AIRSTREAM 3 User Instruction Manual Storage (and Shipping) ..................... 34 Further Screen Options .................... 35 Options Menu Screen ....................... 35 Display Brightness ....................... 36 Silent Mode ........................36 Changing Language ..................... 37 Cleaning and Maintenance ..................38 Cleaning Procedures ......................38 Cleaning the mattress .....................
-
Page 7: Introduction
® NoDec AIRSTREAM 3 User Instruction Manual Introduction Congratulations on purchasing the NoDec ® AIRSTREAM 3 three- cell cycle alternating pressure air mattress system. This high quality medical product, if installed and cared for in accordance with these instructions, will provide many years of trouble free service and outstanding clinical performance. -
Page 8: Further Information
® NoDec AIRSTREAM 3 User Instruction Manual Further Information The NoDec ® AIRSTREAM 3 replaces the mattress on any hospital, style bed frame. This mattress replacement system is quiet, comfortable and simple enough for a single caregiver installation. The frequent removal of contact (interface) pressure has been demonstrated to reduce the risk of pressure injury which is caused by reduced capillary blood flow in the tissue surrounding the bony prominences. -
Page 9: Contraindications
® NoDec AIRSTREAM 3 User Instruction Manual Contraindications As with all alternating mattress systems, the NoDec ® AIRSTREAM 3 is contraindicated for use where patients have unstable fractures or spinal injuries. Descriptions of Symbols Throughout this user manual and on the pump unit itself, the NoDec AIRSTREAM 3 has numerous symbols: ®... -
Page 10: List Of Components
Please note the Name, Model and the Serial Number of your pump in case you need to reference these when contacting Rober or your local distributor. Model Name NODEC AIRSTREAM 3 NODEC AIRSTREAM 3 NDA3 0000:2015 NDA3 0000:2015 230V~ ±10% 50/60Hz 0.35A... -
Page 11: User Instruction Manual
® NoDec AIRSTREAM 3 User Instruction Manual NoDec ® AIRSTREAM 3 Mattress: The top cover is made from Dartex™which is an antimicrobial, mutli-stretch, vapour permeable, PU coated fabric. The bottom cover is made from durable PVC coated Nylon. Power Cord: The power plug should be appropriate to your country or region. -
Page 12: General Cautions / Warnings
® NoDec AIRSTREAM 3 User Instruction Manual General Cautions / Warnings Before setting up the mattress, it is important to read all the safety instructions below. Any actions or operations performed outside the guidance of this manual are carried out at the user’s risk. Rober and/or the supplier are not liable for any such actions. -
Page 13: User Instruction Manual
® NoDec AIRSTREAM 3 User Instruction Manual Risk of Suffocation: The cover is not air permeable. Ensure the patient can use the product safely. Do not drop the pump unit and do not drop objects onto it. Never use sharp objects on or near the mattress. Never insert objects into the pump. -
Page 14: Installation
® NoDec AIRSTREAM 3 User Instruction Manual Installation Please follow these instructions to install your NoDec AIRSTREAM 3 mattress replacement safely and ® appropriately. Place the mattress onto the bed frame, ensuring the light grey top cover is facing upwards and the air supply hose (umbilical) is positioned at the foot end of the bed. -
Page 15: User Instruction Manual
® NoDec AIRSTREAM 3 User Instruction Manual Ensure that fastened straps do not restrict the operation of any moving parts of the the hospital bed. Straps attached around both moving parts and fixed parts of a bed frame will cause severe damage to the mattress. -
Page 16: User Instruction Manual
® NoDec AIRSTREAM 3 User Instruction Manual Hang the unit onto the bed frame at the foot end of the bed with the control panel facing outwards. Check that the CPR clip is in the closed position and plug the umbilical hose into the dock. -
Page 17: User Instruction Manual
® NoDec AIRSTREAM 3 User Instruction Manual Due to the special design on the power cable’s connection, it cannot be pulled out without pushing the yellow button. Ensure that the pump unit is positioned so this button is accessible. Ensure that the power cable is safely guided through the loops located under the skirt (waterfall). -
Page 18: Display Screens / Operation Modes
® NoDec AIRSTREAM 3 User Instruction Manual Display Screens / Operation Modes Before using your NoDec ® AIRSTREAM 3 it is important to understand the touch screen display on the front panel of the pump unit and how to navigate through the various operation modes of the system. -
Page 19: Initial Inflation
® NoDec AIRSTREAM 3 User Instruction Manual Initial Inflation Automatically the system will begin to inflate the mattress and the screen will show 8 cells inflating simultaneously as ‘Please wait’ flashes. An amber LED illuminates continuously until the mattress is ready to use. N.B. -
Page 20: Automatic Alternating Mode
® NoDec AIRSTREAM 3 User Instruction Manual Automatic Alternating Mode Once the unit has inflated the mattress it will automatically default to Alternating Mode and calibrate to the patients weight. The following screen will be displayed and the LED will turn green. Unlocking If the user wishes to change the mode or settings they must unlock the display screen first. -
Page 21: User Instruction Manual
® NoDec AIRSTREAM 3 User Instruction Manual Unlocking the screen Keep finger gently pressed down until padlock unlocks. Upon releasing, the following Menu will show: After 20 seconds of inactivity, the system will automatically lock out the display touch screen. Version 1.0 May 2016 Pg. -
Page 22: User Settings
® NoDec AIRSTREAM 3 User Instruction Manual User Settings The NoDec ® AIRSTREAM 3 has a total of 3 different modes, some of these have additional options for pressure settings: Alternating Mode o Soft o Medium o Firm Static Mode o Soft o Medium o Firm... -
Page 23: Alternating Mode
® NoDec AIRSTREAM 3 User Instruction Manual Alternating Mode On Start-up the system defaults to Alternating mode and automatically calibrates to patient weight and body position. As the control unit deflates the cells the Display Screen reflects the mattress’ behaviour in real time. -
Page 24: User Instruction Manual
® NoDec AIRSTREAM 3 User Instruction Manual During ‘Alternating Mode’ the air cells inflate and deflate in a 1 in 3 pattern with a cycle time of 7.5 or 15 minutes depending on regional preferences. The mattress is contructed into four groups (see page 28), when the "A"... -
Page 25: Static Mode
® NoDec AIRSTREAM 3 User Instruction Manual Static Mode In this mode all cells are inflated, the mattress calibrates to patient weight and then remains in static mode. After a preset period of 2 hours, this mode will revert to alternating mode. -
Page 26: Changing Pressure Settings
® NoDec AIRSTREAM 3 User Instruction Manual Changing Pressure Settings Changing between Soft, Medium and Firm pressure settings is very simple. The current pressure setting is displayed beneath the ‘Head cells’. There are also clear differences between the sizes of the cells shown in different pressure modes. -
Page 27: Maximum Inflation Mode
® NoDec AIRSTREAM 3 User Instruction Manual Maximum Inflation Mode The mattress is fully inflated to an ‘Extra Firm’ pressure setting in order to replicate a normal hospital mattress. This mode is useful for nursing procedures when washing patients and for brief physiotherapy. -
Page 28: Mattress Construction
® NoDec AIRSTREAM 3 User Instruction Manual Mattress Construction The NoDec ® AIRSTREAM 3 mattress has two mattress configurations: Single Cell – Made up of 18, 19 or 20 single air cells, depending on specified size and two internal side formers. Integrated Cell –... -
Page 29: Nodec ® Airstream 3 (Integrated Cell)
® NoDec AIRSTREAM 3 User Instruction Manual NoDec ® AIRSTREAM 3 (Integrated Cell) Mattress Structure Side Profile Static Cells Top Deck Bottom Deck A B C A B C A B C H H H Foot View ‘A’ / ‘B’/ ‘C’ Cell Side Former Version 1.0 May 2016 Pg. -
Page 30: Alarms
® NoDec AIRSTREAM 3 User Instruction Manual Alarms Each of the following alarm displays will be accompanied by a fixed tone audible alarm. The audible alarm can be cancelled by pressing the “Cancel Sounder” Button, however if the cause of the alarm is not resolved after 15 minutes the audible alarm will reactivate. -
Page 31: High Pressure Alarm
® NoDec AIRSTREAM 3 User Instruction Manual High Pressure Alarm This condition could be caused by an over pressure in the mattress e.g. by another person sitting on the mattress. This alarm is shown by the following screen, accompanied by the two LEDs flashing RED. -
Page 32: Power Failure Alarm
® NoDec AIRSTREAM 3 User Instruction Manual Power Failure Alarm If there is a failure of the mains power supply or the unit is accidently unplugged from the mains then the following screen is shown, accompanied by the two LEDs flashing RED. It is possible to resolve this alarm by simply plugging the power cable back into the mains, without the need to reset the control unit however this depends on the... -
Page 33: Cpr Emergency
® NoDec AIRSTREAM 3 User Instruction Manual CPR Emergency In the case of a patient emergency where CPR may be necessary, the NoDec AIRSTREAM 3 has been equipped with a CPR release ® which rapidly deflates the mattress so that cardiac resuscitation can be performed on a firm surface. -
Page 34: Transportation Mode
® NoDec AIRSTREAM 3 User Instruction Manual Transportation Mode In this configuration the mattress can be transported easily around the hospital. Preparation When separating the pump unit from the mattress the unit should first be SET TO STATIC MODE. When all cells are inflated the pump should be SWITCHED OFF and the umbilical hose separated. -
Page 35: Further Screen Options
® NoDec AIRSTREAM 3 User Instruction Manual Further Screen Options Options Menu Screen To access the options menu screen simply unlock the display and press ‘Options’. The following Menu will be shown. Here it is possible to ‘Dim’ the display and turn on ‘Silent Mode’, both of which may be useful during night hours in a hospital ward environment. -
Page 36: Display Brightness
® NoDec AIRSTREAM 3 User Instruction Manual Display Brightness By pressing ‘Change’ as shown, this will ‘Dim’ or ‘Brighten’ the display. Bright English Silent Mode By pressing ‘Change’, this will turn Silent Mode ‘On’ or ‘Off’. The Display will not make a sound upon touching the screen. -
Page 37: Changing Language
® NoDec AIRSTREAM 3 User Instruction Manual Changing Language By pressing ‘Change’ multiple times the control unit will cycle through preselected languages depending on geographical regions. If you cannot find the required language please contact your distributor. After making all required selections, press ‘OK’ to ensure that all changes are made. -
Page 38: Cleaning And Maintenance
® NoDec AIRSTREAM 3 User Instruction Manual Cleaning and Maintenance Cleaning Procedures Cleaning the mattress system every week is recommended, or sooner if heavily soiled. Please make sure that hands are cleaned and appropriate protective clothing is worn before commencing the cleaning process. -
Page 39: Cleaning The Pump Unit
DO NOT autoclave the mattress or pump unit. Maintenance Only qualified technicians, trained or formally approved by Rober Limited, may carry out maintenance, modifications or repairs on the mattress system. NO maintenace or servicing should take place while the Mattress System is in use. Ensure that the patient is clear of the system, when carrying out maintenance. -
Page 40: Technical Parameters
® NoDec AIRSTREAM 3 User Instruction Manual Technical Parameters Power Unit NoDec ® AIRSTREAM 3 Model 350 x 180 x 380 mm Dimensions (L x W x H) 6.8 Kg Weight 230V~ ±10%, 50 / 60 Hz Power Supply 20w max Power Consumption Operating Current 0.35A... -
Page 41: Nodec® Airstream 3 (Single Cell)
® NoDec AIRSTREAM 3 User Instruction Manual NoDec® AIRSTREAM 3 (Single Cell) ® Model NoDec AIRSTREAM 3 (Single Cell) 1900 x 900 x 250mm (18 cell) Dimensions (L x W x H) 2000 x 850 x 250mm (19 cell) 2100 x 900 x 250mm (20 cell) Number of Air Cells 18, 19, 20 Weight... -
Page 42: Version 1.0 May 2016 Pg
® NoDec AIRSTREAM 3 User Instruction Manual Version 1.0 May 2016 Pg. 43... - Page 43 ® AIRSTREAM 3 NoDec User Instruction Manual Version 1.0 May 2016 Pg. 44...
- Page 44 ® NoDec AIRSTREAM 3 User Instruction Manual Rober Limited Rober (India) Private Limited Subsidiary of Rober Limited UK Wheatbridge Road Chesterfield No 1, Ground Floor, RNG Derbyshire Palazzo S40 2AB K.P.E. Extension Bangalore 560001 Karnataka India t +44 (0)1246 245404...
