Summary of Contents for Allegion aptiQ MT20w

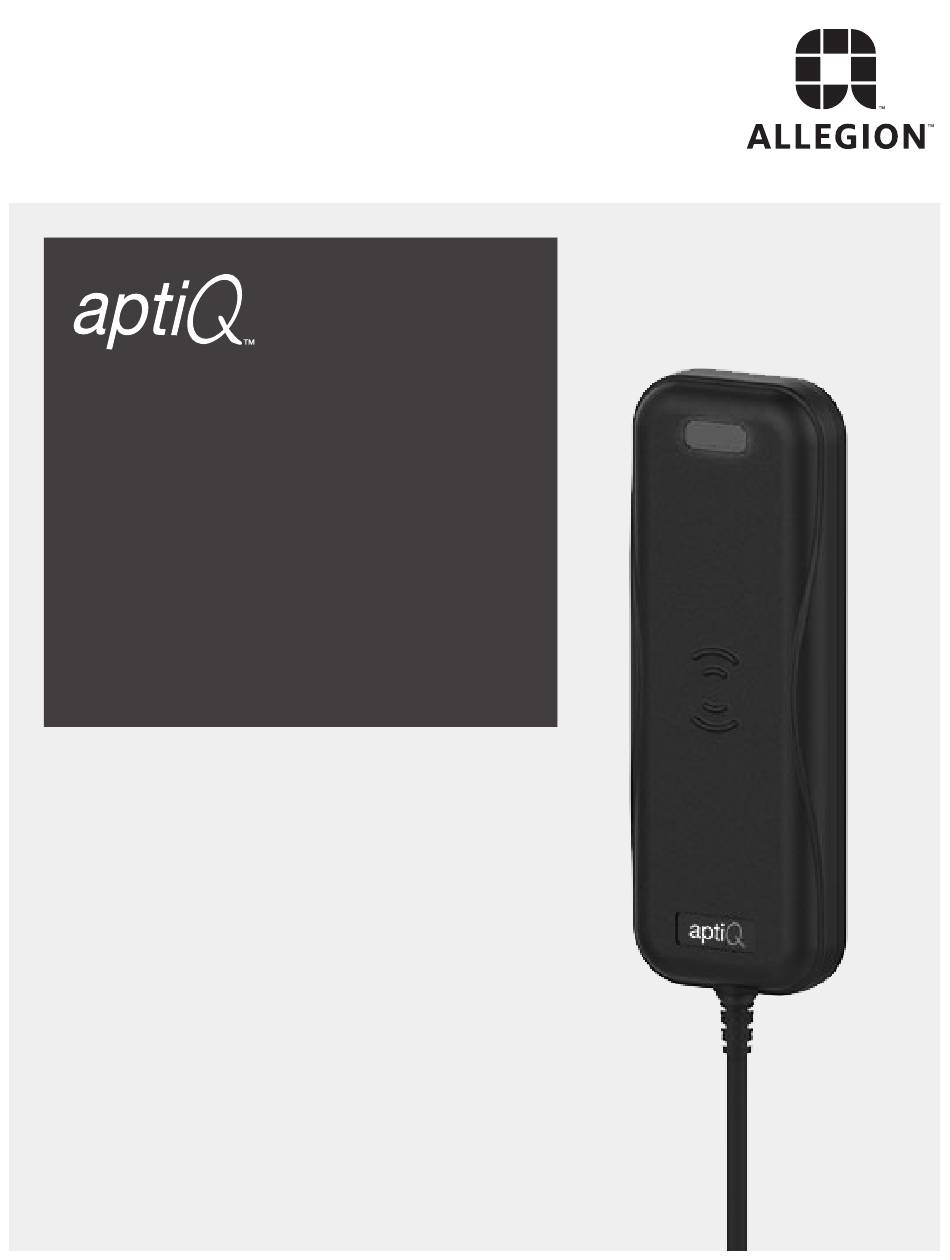

- Page 1 MT20w Enrollment Reader User Guide...
-
Page 3: Table Of Contents
Table of Contents Overview ..................4 Operational Behavior ..............5 Communication ..............5 Output ................... 5 RF Field ................. 6 Configuration Card ..............6 Specifications ................7 Reader Specifications ............7 Card Specifications ............... 7 Card Technologies Supported ........... 8 125kHz Technologies ............ -
Page 4: Overview
Overview Overview The aptiQ MT20w multi-technology enrollment reader is designed to simplify the enrollment of proximity and smart credentials by using a computer’s USB connection. The MT20w does not require software to operate, and will function on any operating system. -
Page 5: Operational Behavior
“ENGAGE” product. There are other outputs available and they can be ordered when ordering the enrollment reader. If you ordered the default output and now require a different output, please contact Allegion Technical Support at 1-877-671-7011, option 2. The following are the outputs available. -
Page 6: Rf Field
Operational Behavior Configuration Card Configuration Card Using a Configuration Card to change enrollment readers output To change the enrollment reader output you will need a configuration card. Power cycle the reader After reader has powered up and within 60 seconds present the configuration card to the reader. -
Page 7: Specifications
Specifications Reader Specifications Specifications Reader Specifications Physical Dimensions (L x W x H) 5.56” x 2.00” x .695” Operating Temperatures 0 to 40 C Frequency 125 kHz & 13.56 MHz Weight 4.1 oz Power Supply Connect to powered USB port or via USB power Interface Current Requirement 110 mA... -
Page 8: Card Technologies Supported
Card Technologies Supported Card Specifications Card Technologies Supported 125kHz Technologies ® ® /CASI Proximity ® Proximity (up to 37-bits) ® AWID Proximity ® LenelProx 13.56MHz Technologies ISO14443 MIFARE DESFire EV1 with PACSA enabled ISO14443 Secure MIFARE Classic: XCeedID MIFARE app enabled OESM (dormant - ready to be enabled by end-user) ISO14443 PIV enabled 75-bit format (other formats available) iClass/CSN enabled 64-bit format... -
Page 9: Notes
Notes Card Specifications Notes AptiQ • MT20w Enrollment Reader User Guide • 9... - Page 10 Notes Card Specifications Notes 10 • AptiQ • MT20w Enrollment Reader User Guide...
- Page 11 Allegion reserves the right to change, without notice, product offerings or specifications. No part of this publication may be reproduced in any form without the express written permission of Allegion. Customer Service Contact Information U.S.A.: 877-671-7011...
- Page 12 About Allegion Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands like CISA , Interflex ® ® , Schlage and Von Duprin . Focusing on security ® ® ® around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions.
- Page 13 2. printed black Creation Date Number Revision 3. tolerance ± .13 07-20-15 xxxxxxxxx 4. printed in country may vary Created By 5. drawings not to scale Activity D. Toppins 3899 Hancock Expwy Security, CO 80911 Software: InDesign CS6 © Allegion 2015...
