Summary of Contents for XAC XCE_C150S

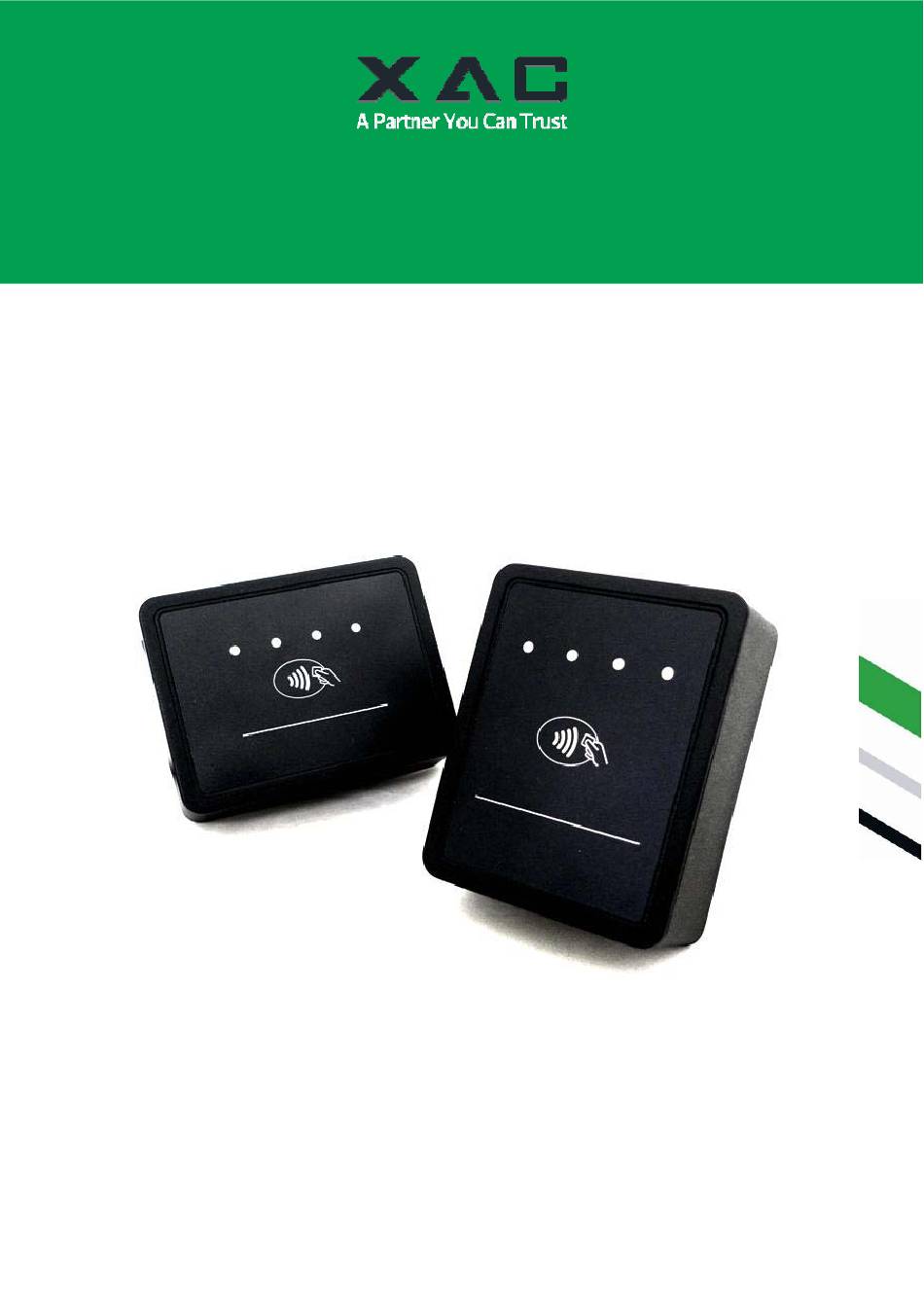

- Page 1 ONTACTLESS EADER ODULE CE_C150S NSTALLATION UIDE MODEL:xCE_C150S ...
- Page 2 NTERFACES xCE_C150S comes with 3 types of cables: a) RS232 interface (DB9 connector) (Figure 4) – xCE_C150S is powered by power adapter. b) USB interface (Figure 5) – xCE_C150S is powered by host through USB. c) RS232 interface (Figure 6) – xCE_C150S is powered by host.
- Page 3 ETTING ONNECTION USB interface: Plug the USB connector into any of the USB port of the host. RS232 interface: Connect the RS232 connector with the COM port of the host. Battery NSTALLING THE Install Battery: Insert battery into battery slot with POSITIVE (+) pole face downward. Remove Battery: Pull the ejector (A).
- Page 4 USING CONTACTLESS CARD READER After xCE_C150S is powered on, xCE_C150S is ready for card reading when 1st LED on the bezel starts to blink. Place contactless card close to contactless logo . to read card (Figure 9)
- Page 5 XAC Automation Corporation. XAC AUTOMATION CORP. shall not be held liable for technical and editorial omissions or errors made herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of his material.
