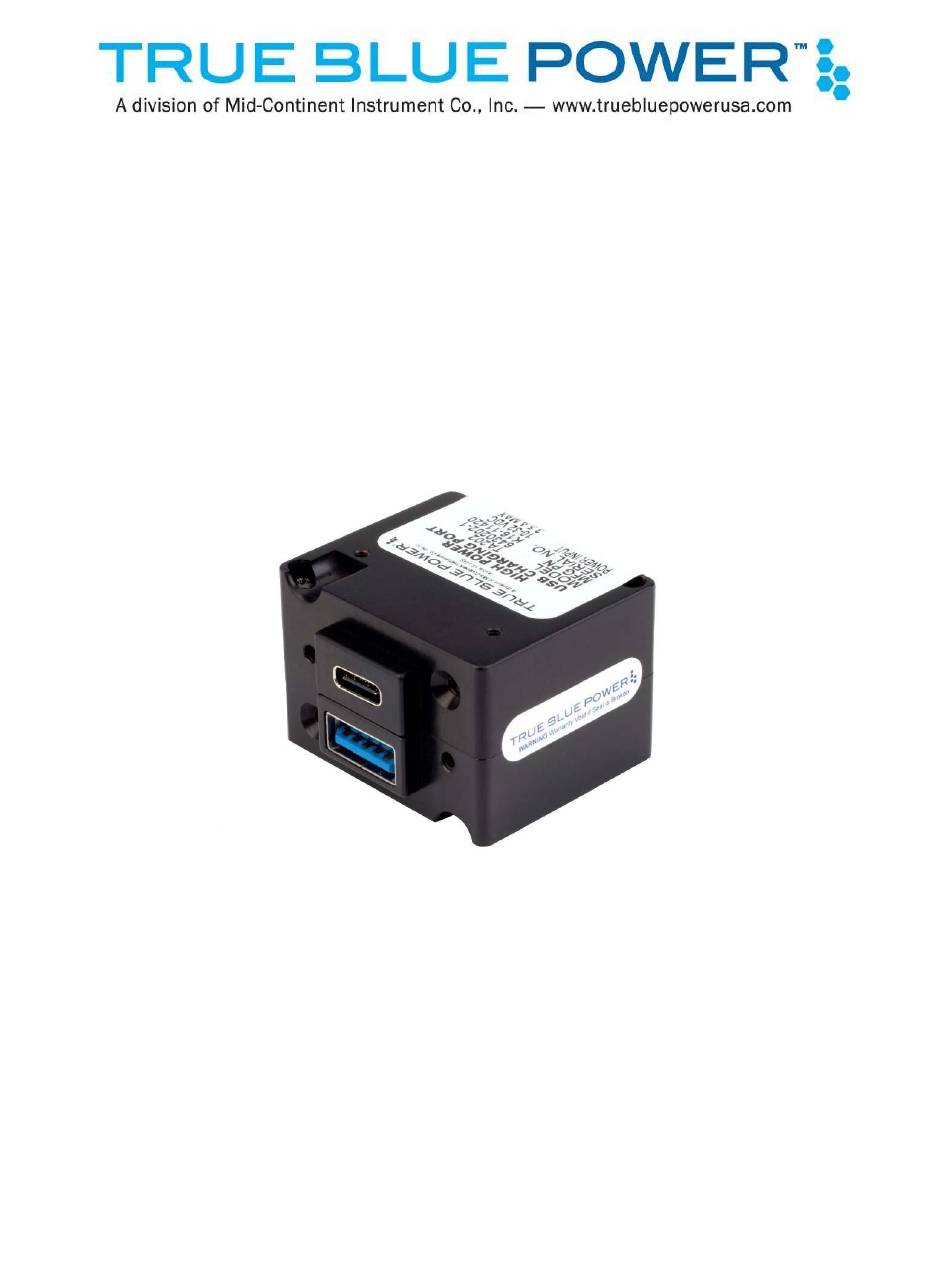

Installation Manual and Operating Instructions
USBT202 Series
High Power USB Charging Port
®
True Blue Power
a division of
Mid-Continent Instrument Co., Inc.
Mid-Continent Instrument Co., Inc.
dba Mid-Continent Instruments and Avionics
th
9400 E. 34
Street N.
Wichita, KS 67226
PH (800) 821-1212
FX (316) 630-0723
Revision 1, June 15, 2018
© Copyright 2018 Mid-Continent
Instrument Co., Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for True blue power USBT202 Series
- Page 1 Installation Manual and Operating Instructions USBT202 Series High Power USB Charging Port ® True Blue Power a division of Mid-Continent Instrument Co., Inc. Mid-Continent Instrument Co., Inc. dba Mid-Continent Instruments and Avionics 9400 E. 34 Street N. Wichita, KS 67226...
-
Page 2: Section 1 General Description
SECTION 1 GENERAL DESCRIPTION INTRODUCTION The USBT202 Series High Power USB Charging Port is a power accessory that converts 10 to 32 volts of DC electrical input from a power supply to standard 5 volt power for any electronic product that charges using a USB connector. -
Page 3: Section 2 Pre-Installation Considerations
Type-C connector, it also allows for a variety of interface options when communicating with compatible devices. This device-to-charger communication is defined within the USB 3.1 Specification and Power Delivery 2.0 standards. However, manufacturers of consumer electronic devices and/or cables may True Blue Power Revision 1, June 15, 2018... -
Page 4: Section 3 Installation Procedures
USB Type-C electronic products. MODIFICATIONS Each USBT202 series High Power USB Charging Port (part number M6430202-( )) has a nameplate that identifies the manufacturer, model, part number, description, and technical specifications of the unit. The nameplate also includes the “MOD”... -
Page 5: Cable Harness
Figure 3.1 • front mount, decorative bezel* Power Input • rear mount, decorative bezel* * Installation kit required, dual port units only. See Section 3.2, Optional Equipment Available for part number reference True Blue Power Revision 1, June 15, 2018... - Page 6 USB connector to be below the surface of the bezel (below flush). Figure 3.2 USBT202 Outline Drawing (dual port, rear input version shown) Figure 3.3 USBT201 Outline Drawing (single port, rear input version shown) True Blue Power Revision 1, June 15, 2018...
-
Page 7: Installation Completion
Verify the output of the unit at the terminating end of the cable with a multimeter to ensure proper voltage and polarity. Once verified, installation can be completed and functionality should be checked. Panel Cutout Detail Figure 3.4 Rear Mount Installation True Blue Power Revision 1, June 15, 2018... - Page 8 Step 5: Insert top and bottom screws Step 6: Peel adhesive backing, align pins on rear of cover plate into holes on mounting plate and press firmly Figure 3.6 Front Mount Installation True Blue Power Revision 1, June 15, 2018...
- Page 9 Port protrusion toward top Figure 3.8 Single Port Rear Mount Installation True Blue Power Revision 1, June 15, 2018...
-
Page 10: Section 4 Operation
SECTION 4 OPERATION ELECTRICAL PERFORMANCE The USBT202 Series High Power USB Charging Port converts a system’s (DC) input voltage within the range specified to a 5V (DC) output. This output power is applied to a single or dual USB-A or USB-C connector in accordance with the USB Implementers Forum.
