Tycon Power Systems TPSM-30-80-SP Quick Install Manual

Solar mount for 30-80w solar panels pole mount wall mount roof mount

Table of Contents

Download this manual

Pole Mount

▫

Wall Mount

▫

Roof Mount

▫

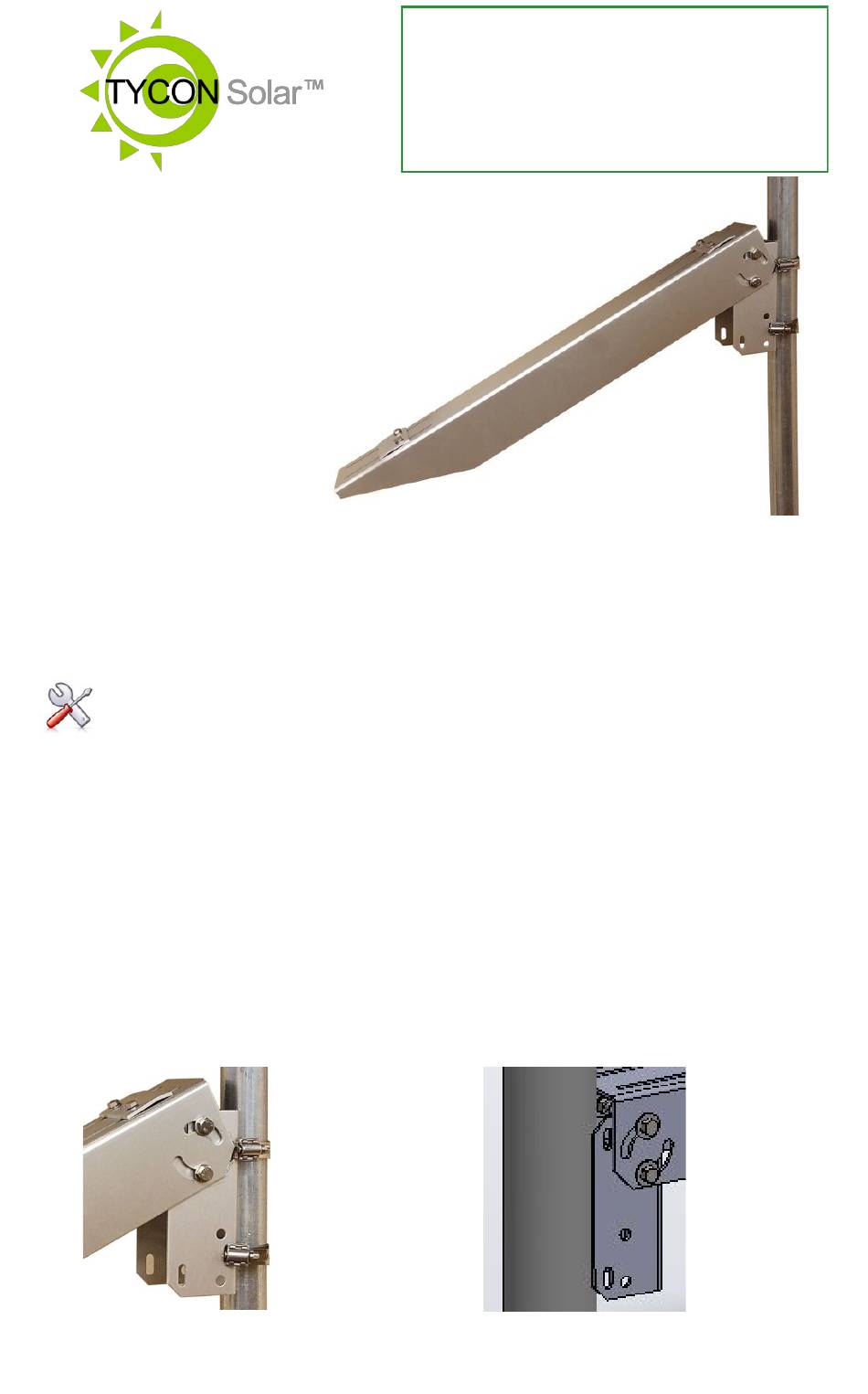

Congratulations! on your purchase of the TPSM-30-80-SP solar

mount for 30W to 80W solar panels or other panels 16" to 26"

wide. Please take a moment to review this Qwik Install Guide be-

fore installation.

Recommended Tools: M6 and M8 Wrenches. 5/16" socket for

hose clamps

STEP 0: The TPSM-30-80 can be used to mount any solar panel with

width between 16 and 26inches (406-660mm). The mount can accom-

modate poles from 1.6" to 4" diameter (41-102mm). It can also be used

for mounting to walls or roofs. The tilt adjustment is from 0° to 90° tilt.

STEP 1: Determine bracket mounting orientation. If pole diameter is

less than 3", the bracket will be installed with flat side towards the pole.

If pole diameter is 3" to 4", the bracket will be installed with open side

toward the pole.

< 3" Diameter Pole

TPSM-30-80-SP

Solar Mount for 30-80W

solar panels

3-4" Diameter Pole

Table of Contents

Need help?

Do you have a question about the TPSM-30-80-SP and is the answer not in the manual?

Page 1 Wall Mount ▫ Roof Mount ▫ Congratulations! on your purchase of the TPSM-30-80-SP solar mount for 30W to 80W solar panels or other panels 16” to 26” wide. Please take a moment to review this Qwik Install Guide be- fore installation.
Page 2 STEP 2: Mount the bracket to the arm using four 8mm bolts, nuts, washers and lock washers. Set the desired tilt angle and then tighten the 4 bolts to 144-in-lbs. Optimum tilt angle can be found using our tilt angle calculator: http://tyconsystems.com/index.php/resources/tools...
Page 3 STEP 3: Attach the two solar panel clamps to the arm using four 6mm bolts, washers, lock-washers and nuts. The clamping edges should be pointing away from each other. Don’t tighten at this point, leave them loose. STEP 4: Mount the bracket/arm assembly to the pole using two stain- less steel hose clamps with the arm pointing South if in the Northern hemisphere or pointing North of in the Southern hemisphere.
Page 4: Limited Warranty
Limited Warranty The TPSM-30-80-SP products are supplied with a limited 36 month warranty which covers material and workmanship defects. This warran- ty does not cover the following: ▫ Parts requiring replacement due to improper installation, misuse, poor site conditions, faulty power, etc.
