Summary of Contents for Critical Environment Technologies YESDUST

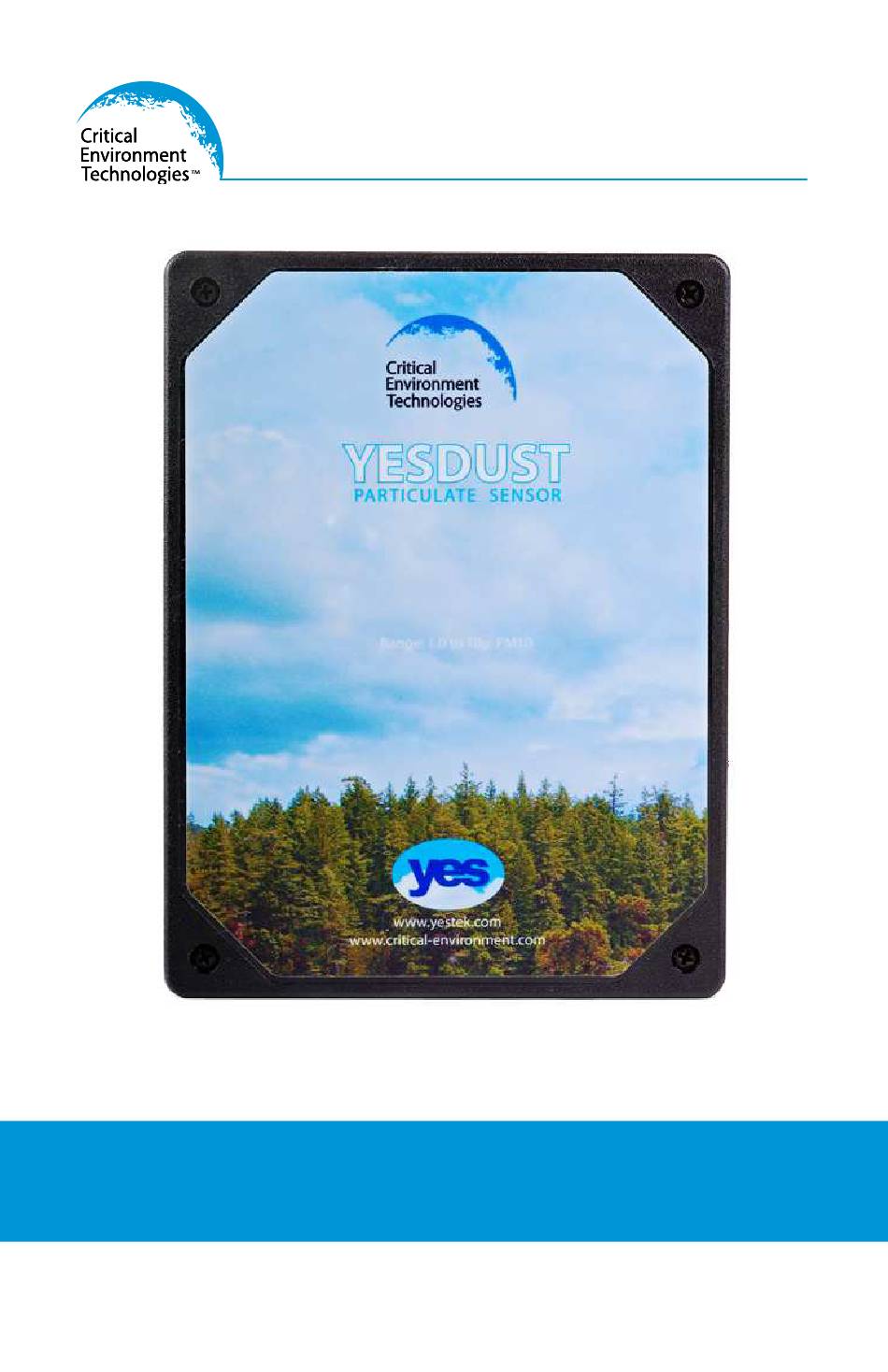

- Page 1 Operation Manual Rev. D | 2015.04 YESDUST Particulate Sensor www.critical-environment.com...
-
Page 2: Table Of Contents
YESDUST - Operation Manual Rev. D | 2015.04 TABLE OF CONTENTS 1 POLICIES ...................... 4 1.1 Important Note....................4 1.2 Warranty Policy ....................5 1.3 Service Policy ......................5 1.4 Copyrights ......................6 1.5 Disclaimer ......................6 1.6 Revisions ......................7 2 INTRODUCTION ..................8 2.1 General Description ....................8 2.2 Key Features .......................8... -
Page 3: All Rights Reserved. Data Subject To Change Without Notice
Rev. D | 2015.04 YESDUST - Operation Manual 6.2 LED Patterns .....................17 7 MAINTENANCE ..................17 8 TROUBLE SHOOTING ................17 © 2015 All rights reserved. Data subject to change without notice. -
Page 4: Policies
YESDUST - Operation Manual Rev. D | 2015.04 1 POLICIES 1.1 Important Note Read and understand this manual prior to using this instrument. Carefully read the warranty policy, service policy, notices, disclaimers and revisions on the following pages. This product must be used according to instructions indicated in this manual. This instrument has not been designed to be intrinsically safe. -
Page 5: Warranty Policy
YESDUST - Operation Manual 1.2 Warranty Policy Critical Environment Technologies Canada Inc. (CETCI), also referred to as the manufacturer, warrants this instrument, (excluding sensors, battery packs, batteries, pumps and lters) to be free from defects in materials and workmanship for a period of two years from the date of purchase from our facility. -
Page 6: Copyrights
YESDUST - Operation Manual Rev. D | 2015.04 Prior to shipping equipment to CETCI, contact our o ce for an RMA #. All returned goods must be accompanied with an RMA number. If CETCI is to do the repair work, you may send the instrument, prepaid, to: Attention: Service Department Critical Environment Technologies Canada Inc. -
Page 7: Revisions
Rev. D | 2015.04 YESDUST - Operation Manual or subjected to neglect or accident. Any of the forgoing will void the warranty. 1.6 Revisions This manual was written and published by CETCI. The manufacturer makes no warranty or representation, expressed or implied including any warranty of merchantability or tness for purpose, with respect to this manual. -
Page 8: Introduction
YES multi-channel monitor, and are also data logged to the YES multi-channel monitor internal ash card, if utilized. YESDUST counts particulates between 1 and 10 microns in size. It has been designed for use as a general purpose indication of a particulate problem and should not be considered for applications requiring high accuracy such as “clean rooms”. -
Page 9: Instrument Specifications
Rev. D | 2015.04 YESDUST - Operation Manual 3 INSTRUMENT SPECIFICATIONS 3.1 Technical Speci cations GAS TYPE Particulates MECHANICAL Enclosure General Purpose ABS Weight 450 g (1.0 lbs) Size 4.6” x 6.1” x 2.4” (118 mm x 156 mm x 60 mm) -
Page 10: Sensor Specifications
YESDUST - Operation Manual Rev. D | 2015.04 4 SENSOR SPECIFICATIONS 4.1 Sensor Speci cations Particulate Highly sensitive, focused, infrared light beam. Self aspirated, Type convection. Warm-Up Time 1 minute Particle Size Range 1 - 10 microns Response Time (T <... -
Page 11: Features & Functions
Rev. D | 2015.04 YESDUST - Operation Manual 5 FEATURES & FUNCTIONS 5.1 Exterior Enclosure Œ Œ • Œ Œ NUMBER FEATURE FUNCTION Screws Secures face plate Œ Label Lexan label • © 2015 All rights reserved. Data subject to change without notice. -
Page 12: Interior System Layout
YESDUST - Operation Manual Rev. D | 2015.04 5.2 Interior System Layout Ž Ž Ž • • • Œ NUMBER FEATURE FUNCTION Nickel Hydride Rechargeable Power source Œ Battery Data Out Port Connects to the YES multi-channel monitor • Vents Ž... -
Page 13: Exterior Sides
Rev. D | 2015.04 YESDUST - Operation Manual 5.3 Exterior Sides • • Ž • Œ • ‘ NUMBER FEATURE FUNCTION Data Out Connects to the YES multi-channel monitor Œ Vents • Allows air ow Ž Comm LED Indicates communication status •... -
Page 14: Exterior Top
6.1 Operating Instructions Battery Replacement Step 1: Open the YESDUST by removing the screws from the four corners of the front cover Step 2: Remove the old batteries by pressing the battery towards the spring in the battery holder and lifting the opposite end. -
Page 15: Connecting To A Yes Multi-Channel Monitor
Connect the other end of the cable to the AUX port on the YES multi-channel monitor. Step 3: Set the switch on the YESDUST to the ON position. The COMM light will turn on red to indicate that there is power but the YESDUST has not established communications with the YES multi- channel monitor. -
Page 16: Charging
YESDUST will turn RED after approximately 45 seconds. Powering Down To power down the YESDUST, turn the switch to the OFF position. If the YESDUST is plugged in to the wall adapter, battery charging will start, otherwise the batteries are disconnected internally and the unit is powered down. -
Page 17: Led Patterns
YESDUST won’t communicate with YES Multi-channel Monitor: 1. Check that the interface cable is undamaged 2. Check that the interface cable is connected to the DATA OUT port on the YESDUST and the AUX port on the YES Multi-channel Monitor. - Page 18 YESDUST - Operation Manual Rev. D | 2015.04 NOTES © 2015 All rights reserved. Data subject to change without notice.
- Page 19 Rev. D | 2015.04 YESDUST - Operation Manual NOTES © 2015 All rights reserved. Data subject to change without notice.
- Page 20 Critical Environment Technologies Canada Inc. Unit 145, 7391 Vantage Way, Delta, BC, V4G 1M3, Canada Toll Free: +1.877.940.8741 Tel: +1.604.940.8741 Fax: +1.604.940.8745 www.critical-environment.com YESDUST201504-D © 2015 Critical Environment Technologies Canada Inc. All rights reserved. Data in this publication may change without notice.
