Jupiter WS3006 User Manual

User manual

Step1：Install the Wireless HD receiver equipment
a) Connect the receiving device to HD displayers (LCD, LED, etc.) using the VGA cable;
b) Connect 5V DC power adapter to the receiving device, and turn on the power switch.
Step2：Install the wireless HD transmitter equipment
a) The transmitting device is connected directly to the HD signal source ( laptop computer, PS3 or
others) by the VGA interface;
b) Connect the USB connector of the transmitter to computer USB Interface, or a USB power adapter
(Current > 0.7A).
Step3：Connect the device transmitting the signal source
a) The wireless connection will establish automatically, During this time the blue light of wireless HD
transmitter will flash, After the wireless connection complete, the blue light keeps bright. The entire
process of the connection takes
Step1：
Wireless HD receiver device is
connected to HD displays
Step2：
Wireless HD transmitter device is
connected HD sources
Note: See Troubleshooting (2,3 pages)
- Transmitter must be connect to USB 3.0
- If the PC does not support automatic image output, you need to do it manual.
- Connect the Transmitter to the video player or an external display device, if there is no USB power supply
interface, you can use USB power adapter.
- If the wireless connection can't connect successfully, you can try using the remote control POWER button to
restart the receiver. The receiver will reboot automatically and try to connect to the transmitter again.

Troubleshooting

J U P I T E R T E C H N O L O G Y ( W U X I ) C O . , L T D
WS3006 User manual
about 15 seconds.
5V 2A adapter
Wireless HD receiver equipment
Step3：
Wait for the wireless
connection about 15
seconds
Wireless HD transmission equipment

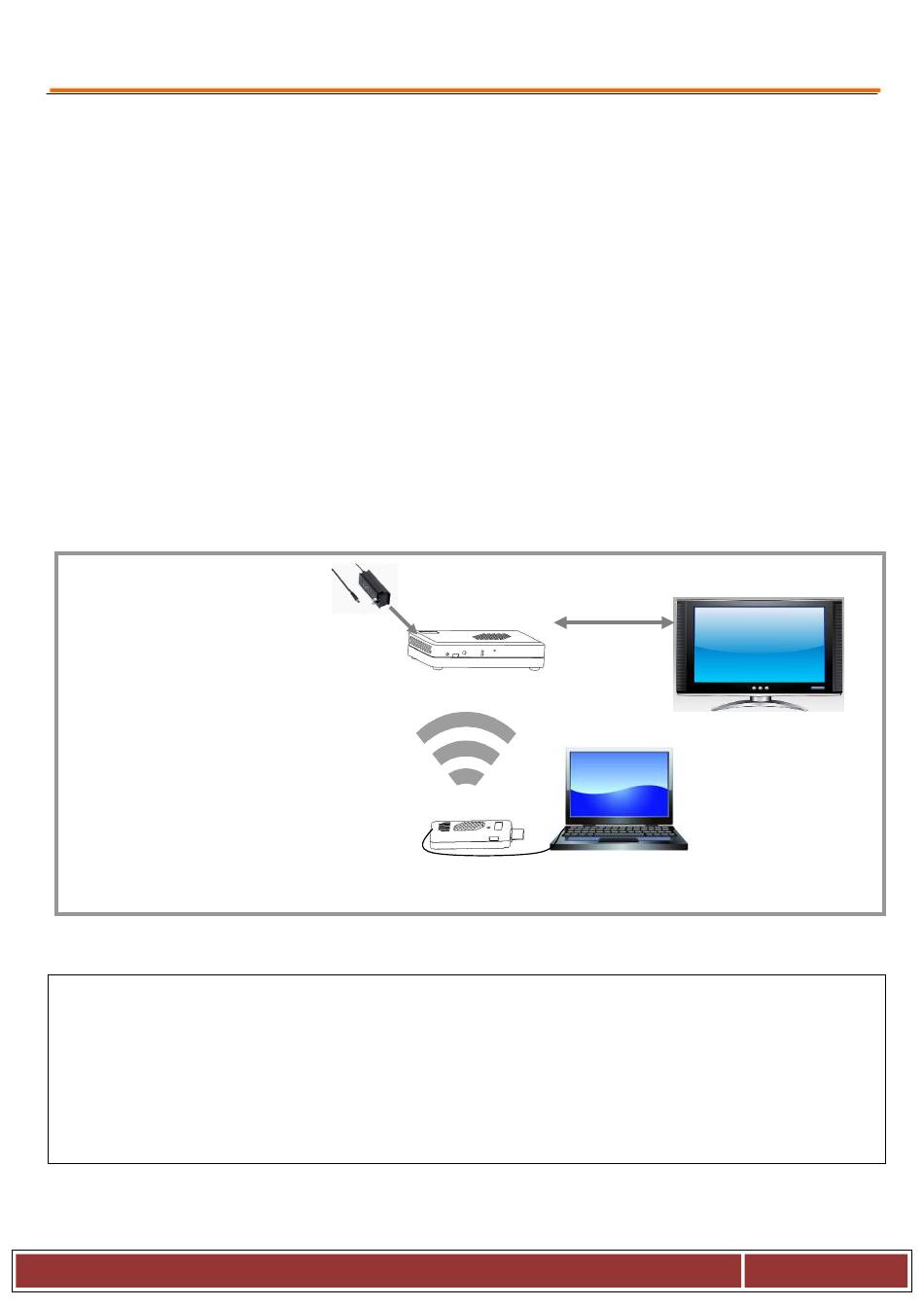

Figure 1 Schematic diagram of the wireless HD video systems to connect
VGA cable
Source: PC，PS3....
USB power
Monitor：
LCD、LED......
- 1 -
