Summary of Contents for Pinter MINICOMB-EDS

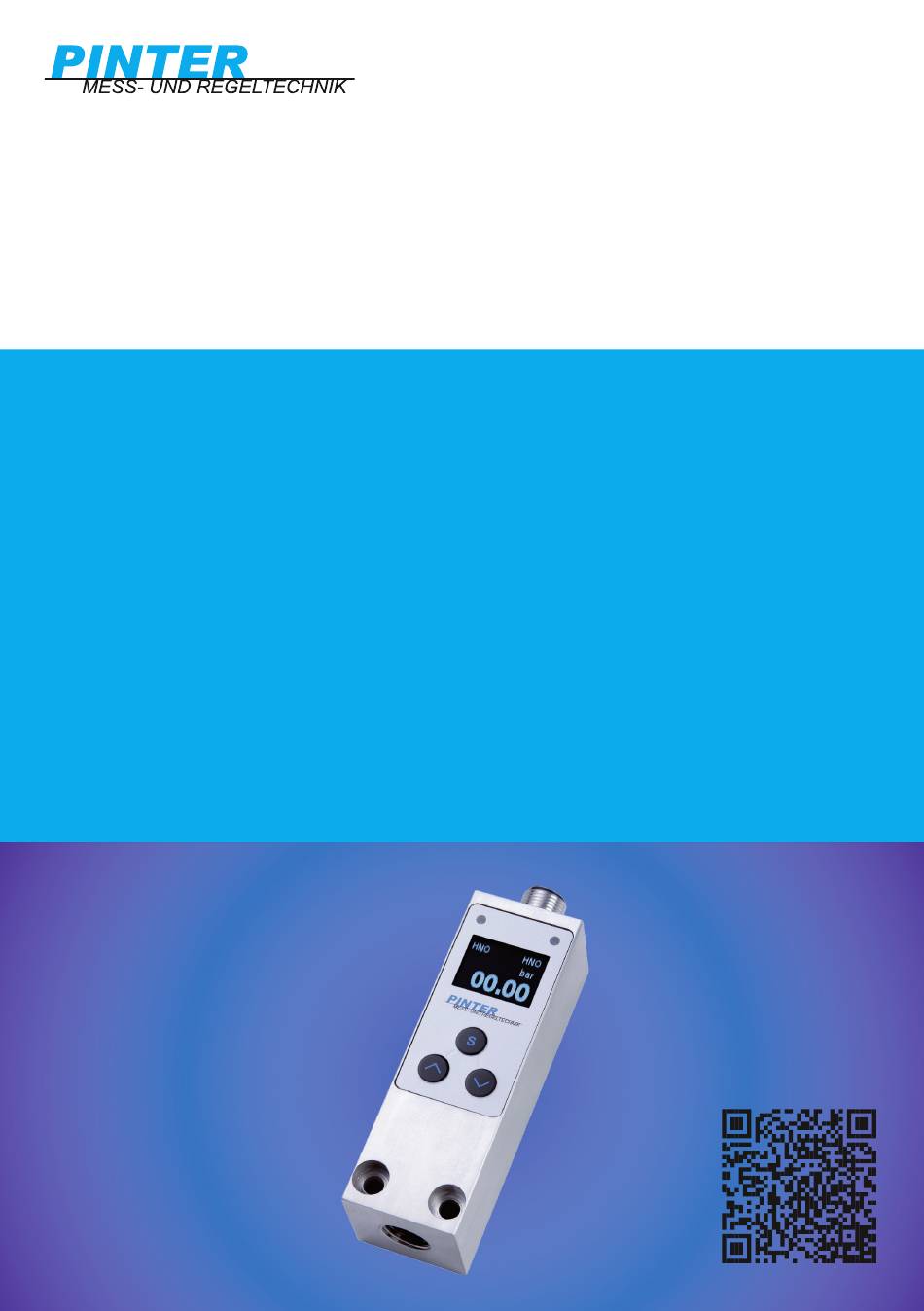

- Page 1 Operating Instructions MINICOMB -EDS ® Electronic Pressure Switch for Pressure and Vacuum...
- Page 2 Before working with the MINICOMB-EDS pressure switch, make sure that you have read and understand these instructions completely. Further documents The MINICOMB-EDS pressure switch is a component. Please also read the instructions for the rest of your system. This includes: •...
- Page 3 Further Options cleaned for O service Scope of delivery The package includes: • 1x MINICOMB-EDS Electronic Pressure Switch • 2x mounting screw (only sub base mounting ) • 1x o-ring (only sub base mounting) • 1x operating instructions...
- Page 4 EMC-Directive 2004/108/EC, Electromagnetic Compatibility EN 61326-1:2013, EN 61326-2-3:2013; EN 61000-6-2:2005; EN 61000-6-4:2007 + A1:2011 zero-point adjustment, adjustable switching and re-set delay, Further Functions changable units, adjustable display power off, rotatable display indication, password protection Further Options cleaned for O service www.pinter-gmbh.com...
-
Page 5: Installation
If the product is not properly fastened, other plant parts may be damaged by uncontrolled movements of the product, as well as personal injuries may occur. Make sure that the product is securely fastened. Dimensions MINICOMB-EDS version with female thread Torque... - Page 6 (cable available as sep.acc.) brown OUT2 (PNP) / 4 - 20 mA white 0 Volt blue OUT1 (PNP) black grey Circuit Diagrams 1 PNP - output 2 PNP - outputs 1 PNP - output + 1 analogue output 4 - 20 mA www.pinter-gmbh.com...
- Page 7 www.pinter-gmbh.com...
-
Page 8: Parameters Description
NO; 0000 - 9999 LANG language for text menu DE; EN; ES; FR; IT; OFF menu item not available, when corresponding output is turned OFF only 2P only 1PA for pressure ranges < 4 bar max zero correction +/- 50 mbar www.pinter-gmbh.com... - Page 9 RP can be adjusted freely. The switch monitored. If the process pressure is within the switches back when the RP is reached. defined range the output is either closed or open. This allows, for example, a simple 2-point control. www.pinter-gmbh.com...
- Page 10 2P-version with output 1 configured HNC and output 2 configured FNO. row 1 output configuration(s) row 2 zero correction value and pressure unit row 3 pressure value Standard view in case of an error row 1 description of error row 2 description of error row 3 Error Code www.pinter-gmbh.com...
- Page 11 Confirm Setting and go back to upper Menu. please refer to „Ex- tended Features“ for more information Return to the parent menu item by pressing The device returns to the Standard-Display if no button is pressed for 5 seconds. www.pinter-gmbh.com...
- Page 12 2 (only 2P) confirm choice and return to parent menu choose HNC, HNO, FNC or FNO choose configurati- on for output 1 confirm choice and return to parent menu www.pinter-gmbh.com...
- Page 13 YES or NO set zero correction on YES the actual pressure value will be set as zero. NO deactivates zero correction. choose DE, EN, ES, FR, IT or OFF set language for text menu confirm choice and return to parent menu www.pinter-gmbh.com...
- Page 14 NOT activate pass- parent menu word protection choose password Enable password protection and conti- nue to set password confirm choice and return to parent menu NOTE The password protection is only active after returning to the Standard-Display. www.pinter-gmbh.com...
- Page 15 Resetting password protection on lost password Resetting password protection on lost password is only possible at the factory or by an authorized partner. www.pinter-gmbh.com...
-
Page 16: Status Display
Access to the status display is also possible with activated password protection. So a simple check of the settings is possible any time, but an adjustment of the parameters is not possible with activated password protection. 1P version 2P version 1PA version www.pinter-gmbh.com... - Page 17 During operation • The product is maintenance free. In case of technical problems, please contact PINTER. • Clean the product with a slightly damp cloth only. Use water and if necessary a mild detergent. Never use sol- vents or abrasive cleaners or aggressive cleaners.
- Page 18 www.pinter-gmbh.com...
- Page 19 www.pinter-gmbh.com...
- Page 20 PINTER Mess- und Regeltechnik GmbH Kraichgaublick 17 Technologiepark Neckartal-Odenwald 74847 Obrigheim, Germany Phone +49-6262-92670-0 +49-6262-92670-99 E-Mail info@pinter-gmbh.de Internet www.pinter-gmbh.com...
