C7000 series door Closer installation
Standard.and.Top-Jamb.Installation

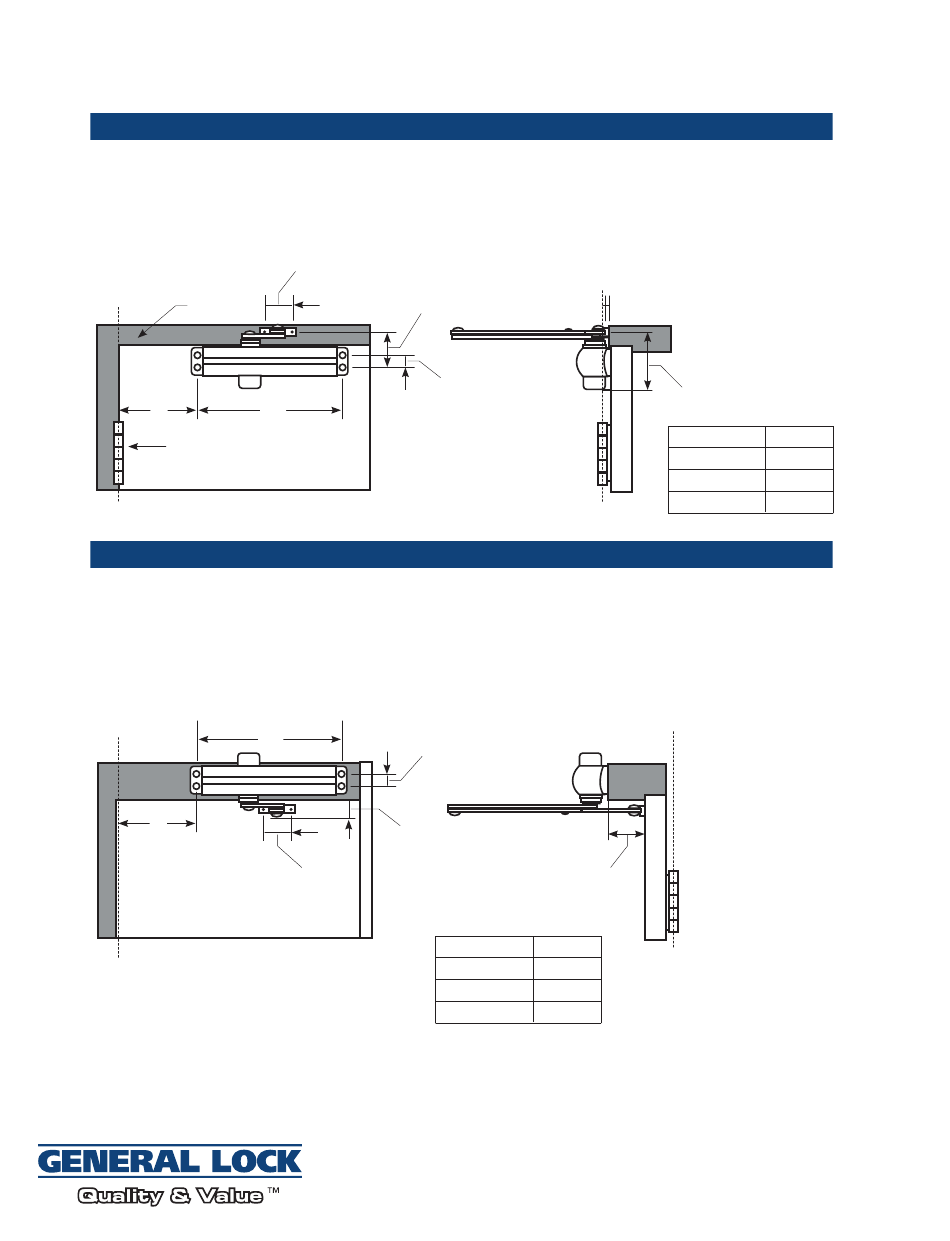

standard installation:

.
Regular.arm.application.provides.the.best.power.efficiency..It.is.the.only.installation.that.installs.on.the.
hinge.(pull).side.of.the.door..Regular.arm.applications.require.at.least.1-3/4".from.top.of.door.to.ceiling.
so.arm.does.not.hit.the.ceiling.and.at.least.2-1/2".behind.door.when.door.is.opened.to.90º,.so.closer.
body.will.not.damage.the.wall.
C L
Jamb
A
Hinge

top-JamB installation:

.
Top-jamb.application.is.the.best.alternative.to.regular.arm.for.power.efficiency..It.is.installed.on.the.
frame.stop.(push).side.of.the.door..It.is.frequently.used.on.doors.with.a.narrow.top.rail,.such.as.
exterior.aluminum.storefront.doors..Top-jamb.applications.require.the.frame.to.be.at.least.1-3/4".
in.height,.or.else.a.drop.plate.must.be.used.(a.drop.plate.provides.a.mounting.surface.for.the.door.
closer).
C L
A
D:8.—.Product.Guide.103.1.—
1-3/4"
2-3/8"
3/4"
12"
12"
3/4"
1"
1-3/4"
C L
Reveal.Projection.
3.5".Max
Opening. . Dim..A
100º. . 7-1/2"
100º.-.130º. . 6"
130º.or.wider. . 4-1/2"
3.5"
Opening. . Dim..A
100º. . 7-1/2"
100º.-.130º. . 6"
130º.or.wider. . 4-1/2"
C L
