Summary of Contents for HuntCam HC-300M

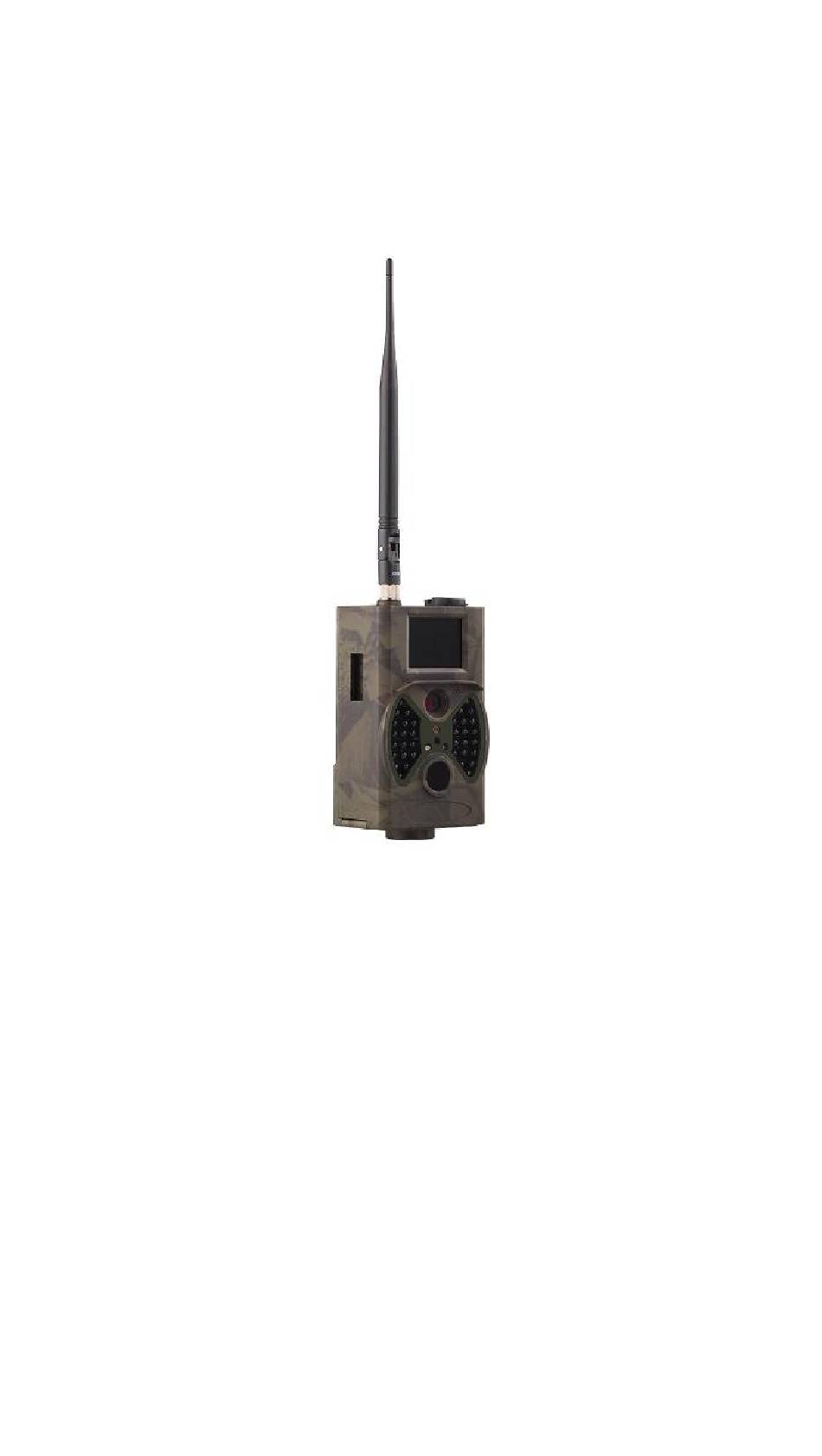

  • Page 1 User Manual HC-300M...
  • Page 2: Table Of Contents

    Contents Instructions ......................1 General Description ....................1 Camera Body Interface ..................1 Camera components and features ................ 1 Remote Control ..................... 1 Shooting Information Display ................2 Brief Introduction for SIM card and Signal ............2 Supported Format ....................2 Easy Operation ......................
  • Page 3: Instructions

    1. Instructions General Description This digital trail camera with MMS function can work automatically day and night. It can be triggered by any movement of human (or animals) in a certain region monitored by motion sensor, and then automatically captures pictures (up to 12M pixels) or records 1080p or HD video clips (WVGA or QVGA).
  • Page 4: Shooting Information Display

    Note: Press the punctuation “ ” for laser light. Note (Under TEST mode): 1. Press “Shot” directly, the camera will take picture or video directly. 2. Press “OK” directly, the picture or video recorded can be viewed. 3. Viewing picture, press “Up” or “Down”. 4.
  • Page 5: Supported Format

    1.6 Supported Format Item Format Photo Video 2. Easy Operation 2.1 Power Supply To supply power for the camera, 8X AA batteries are needed. The following batteries with 1.5V output can be used: 1. High-density and high-performance alkaline batteries (Recommended) 2.
  • Page 6: Enter Into The Test Mode

    2.3 Enter into the TEST Mode Turn the power switch to the TEST position to enter into the TEST mode. There are some functions in TEST mode: user setting /manually capturing/preview. 2.3.1 User Setting Press the MENU button. The camera can be set (mode, interval, picture resolution, video resolution&...
  • Page 7: Video Setting

    3.1.2 Video Setting 3.1.3 System Setting 3.1.4 MMS Menu Setting...
  • Page 8: Smtp Menu Setting

    3.1.5 SMTP Menu Setting This camera will send pictures instantly to user mobile via MMS. So before using this function user needs to finish the settings mms in MMSCONFIG. 3.2 MMS/SMTP Settings 3.2.1 Preparation 1. 2G/GSM Mobile Operator Service 2. format 2GB+ Micro SD or SD card 3.
  • Page 9: Smtp Setting

    8. Go to in camera menu, check the sub setting is the same with above setting 9. Turn camera to on mode 3.2.3 SMTP setting 1. Insert card and SIM to camera, put batteries in cam, screw antenna to it then turn camera to test mode, check there are signal bar and ''SIM'' on the camera screen.
  • Page 10: Sms Command Code

    3.3 SMS Command Code mms/smtp need to be set ‘on' mode before using thes sms command *500* take picture (both mms and smtp mode) *505* take picture and send to the mobile who sends sms *520* check the picture quantity and battery status (both mms and smtp mode) *530* turn on camera (both mms and smtp mode)
  • Page 11: Specifications

    5. Technical Specifications Image Sensor Type 5 Mega Pixels Color CMOS (True Megapixels) Memory Micro SD Card 8GB~32GB Lens F=3.1; FOV=90 ° Size 145mm * 80mm * 55 mm IR Filter: Full Automatic IR Filter TFT Display Screen: 2.0 inch PIR Sensor Sight Angle 90 Degrees PIR Sensing Distance...
