Forsberg ReACT Quick Start Manual

I
NTRODUCTION
This guide provides the basic information required to set-up the ReACT+ GNSS System.
The ReACT+® Smart Antenna is a compact, rugged
enclosure including a high precision GPS and GNSS
Receiver and antenna. It offers the latest technology
for precision position, velocities, heading and
attitude by GNSS-alone or inertial navigation.
F B
EATURES AND ENEFITS

555 Channels with Multi-constellation
tracking (GPS, GLONASS, BEIDOU, GALILEO,
SBAS, L-BAND).

Triple-frequency and multi-constellation
tracking increases position reliability and mitigates ionospheric effects.

Capable of centimetre-level accuracy using Terrastar C and RTK positioning. (Firmware activation
required)

PHYSICAL AND ELECTRICAL

Dimensions
Weight
Input Voltage
Power Consumption
M
OUNTING
2 x Magnet
4 x M4 inserts [70.5mm / 2.78" Sq.]
P C M
HASE ENTRE EASUREMENT
The phase centre of the antenna is provided on the bottom of the ReACT+ system.
B C :
OX ONTENTS

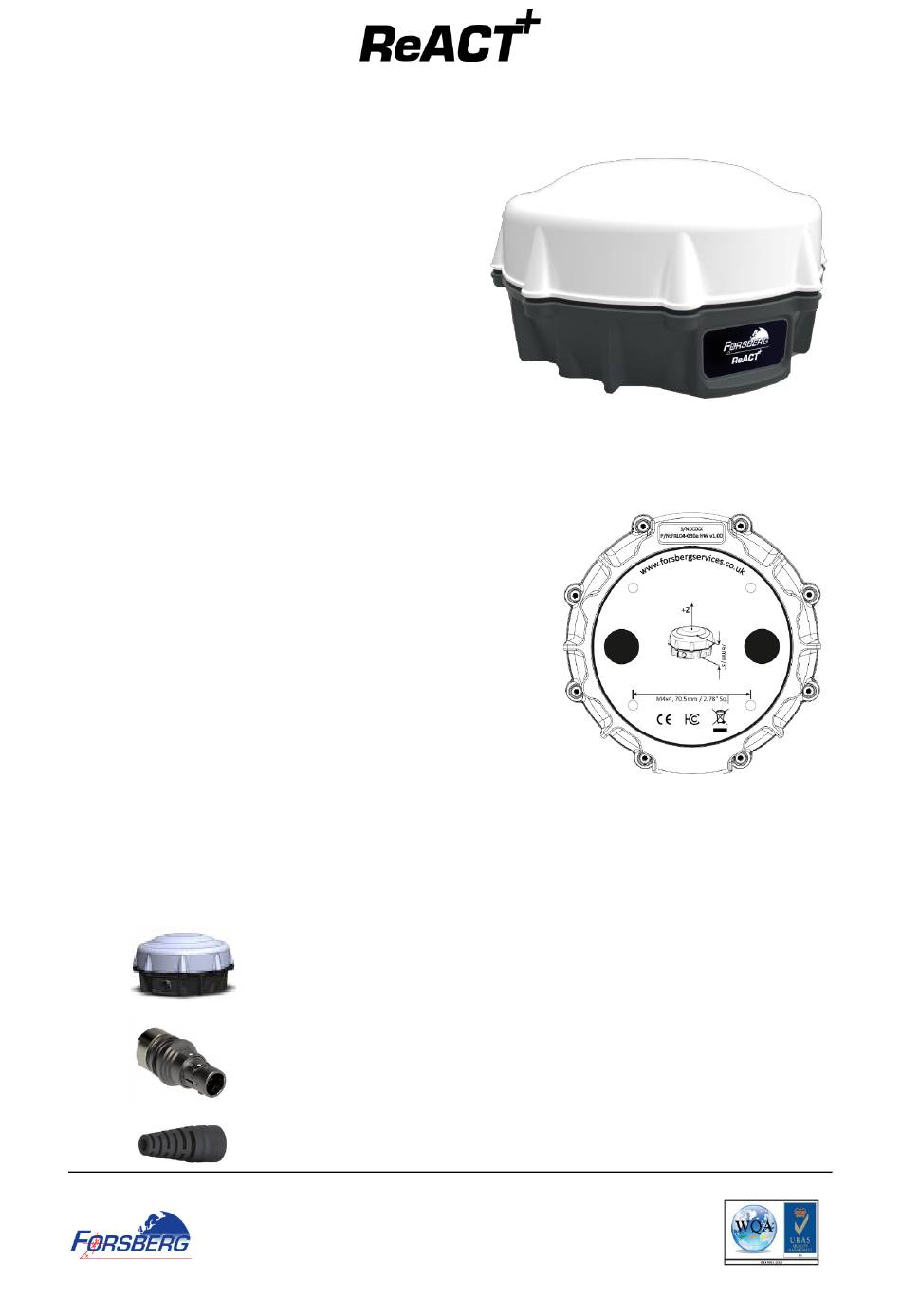

The ReACT+ system, Part No. FRL01-0004 is provided with the following items.
1. ReACT+ System Enclosure. P/N: FRL04-000?
2. Fischer Connector Cable Plug. P/N: UP01Q11 M019S BK1 Z1ZA
3. Fischer Connector Sealing Boot. P/N: UB11 A1BK Ø3.9
