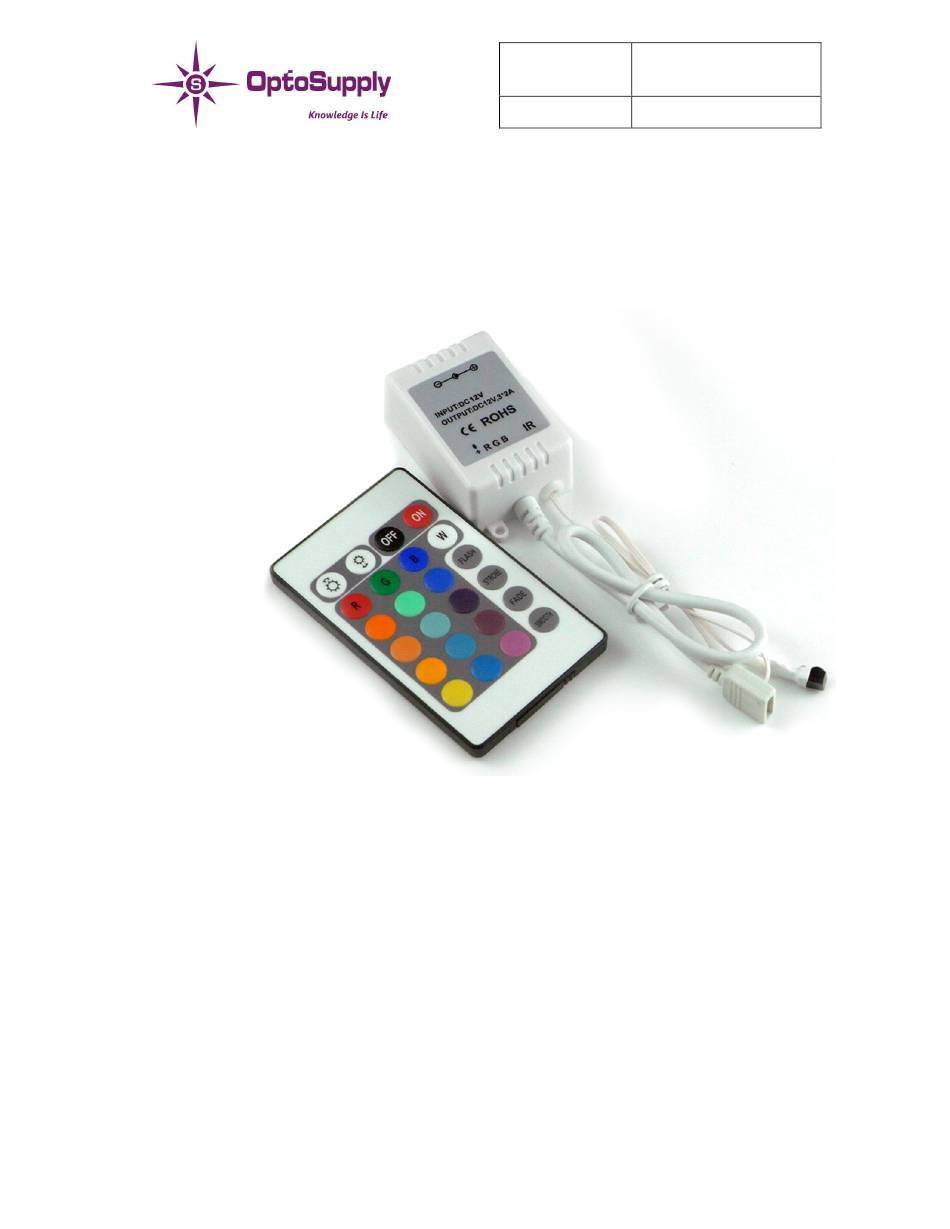

NAME: 24-Key infrared LED controller
MODEL: OS-OC013AIG2
Summarization
24-key infrared LED RGB controller adopts the advanced micro control unit, it is
used for controlling a variety of lamp whose source of light is LED. For instance,
point source of light, flexible light strip, wall washer lamp, glass curtain wall light and
so on; At the same time, it has many advantages such as convenient
connection ,simplicity to use and others. According to the actual need of customers,
it can carry out jumpy changing, gradual changing and other effects of change. Total
24 modes for your choice.
Technical parameters
● Working temperature: -20-60 ℃
● Voltage supply: DC5V, 12V, 24V <optional> (for orders specify voltage)
● Output: 3 channels
● Connecting mode: common anode or common cathode
● External dimension: L49.5ΧW34.5ΧH22 mm
● Net weight: 50g
● Gross weight: 71g
● Static power consumption: <1 W
● Output current: <2 A (each channel)
● Output power: 5 V: <30W, 12V: <72W, 24V: <144W
Model No.
Product Manual
OS-OC013AIG2
REV.
2
Advertisement
Table of Contents
Summary of Contents for OptoSupply OS-OC013AIG2
- Page 1 OS-OC013AIG2 REV. Product Manual NAME: 24-Key infrared LED controller MODEL: OS-OC013AIG2 Summarization 24-key infrared LED RGB controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on;...
- Page 2 Model No. OS-OC013AIG2 REV. External Dimension Controller Dimension: Remote control dimension:...
- Page 3 Model No. OS-OC013AIG2 REV. Direction for use 1. Connect the load wire at first, following by the power wire; Please ensure short circuit can’t occur between connecting wire before you turn on the power; 2. Standard color changes as follows:...
- Page 4 Model No. OS-OC013AIG2 REV. Connecting drawing:...
