Summary of Contents for Cloud-9 DOS Adapter

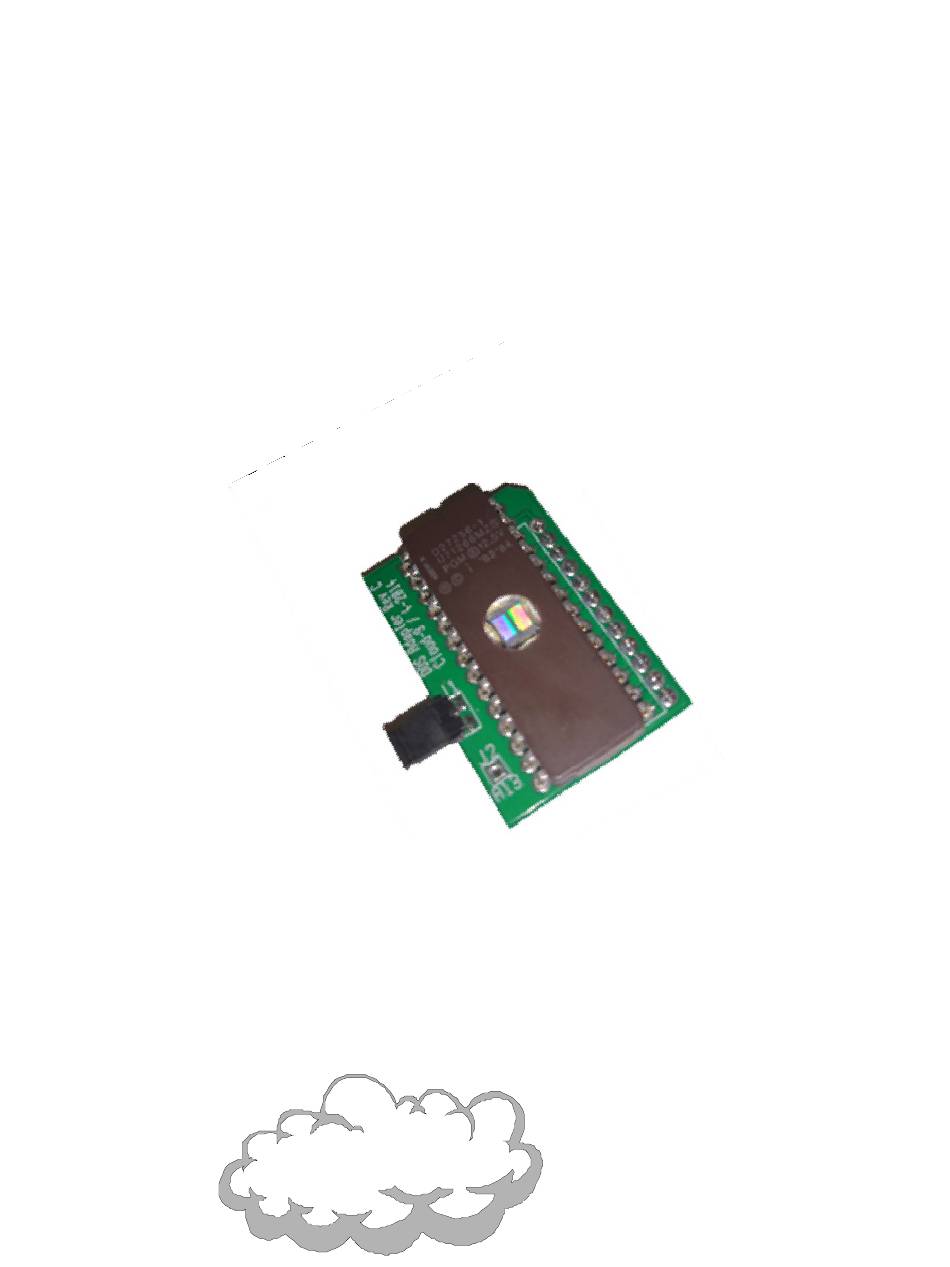

- Page 1 DOS Adapter User Manual Cloud-9 Cloud-9 3 7 49 County Road 3 0 Delano, MN 5 53 28 www.cloud9 tech.com...
- Page 2 Cloud-9, is prohibited. While reasonable efforts have been made in the preparation of this manual to assure its accuracy, Cloud-9 does not assume liability resulting from any errors in or omissions from this manual, or from the use of the information contained herein.
- Page 3 Table Of Contents DOS Adapter ..........................1 User Manual .......................... 1 1. Congratulations! ........................4 Features ..........................4 Disclaimers ..........................4 2. Installation ........................... 5 Required Tools ........................5 Mode Selection ........................5 Installation Steps ........................6 EPROM Burning Service ....................... 6...
- Page 4 1. Congratulations! Thank you for purchasing the DOS Adapter, another one of the fine products offered by Cloud- 9. This product was designed to be used with the Radio Shack TRS-80 Color Computers 1, 2, and the Tandy Color Computer 3 disk controllers.
-
Page 5: Required Tools
2. Installation This manual details step by step instructions on how to install the DOS Adapter board into your system. Required Tools You need the following tools to install the DOS Adapter: 1. Soldering iron and solder, if mode 2 selected. -
Page 6: Installation Steps
5. Insert the DOS Adapter board into the socket that the original EPROM was removed from in Step 2. Please note the proper orientation. Pin 1 of the DOS Adapter must align with pin 1 of the controller. Pin 1 of the DOS Adapter is represented by a square hole.
