Summary of Contents for AIFA BTRC

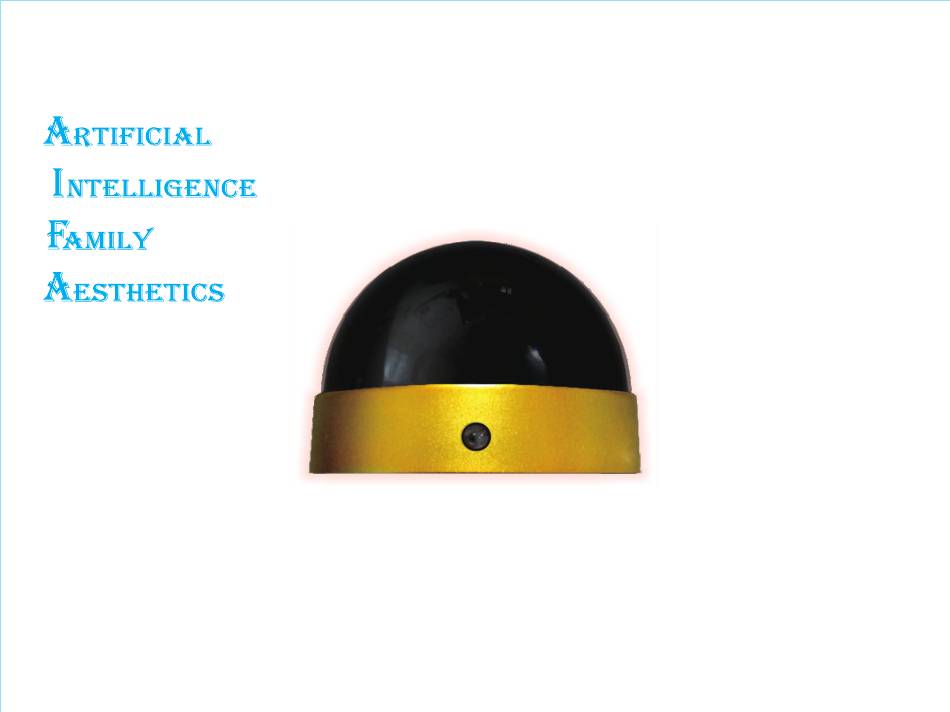

Page 1 AIFA AIFA BTRC Smart Home Control Box Instruction Manual...
Page 2: Table Of Contents
Contents PRODUCT INFORMATION ..............2 PRODUCT SPECIFICATION ..............2 INSTALLATION ..................3 INTERFACE ................... 5 TV INTERFACE – MY FAVORITE ............6 CODE SETTING ..................7 CODE AUTO SEARCH ................9 LEARNING FUNCTION ................. 11 EXIT FROM LEARNING FUNCTION ............12 DELETE LEARNED BUTTON ..............
Page 3: Product Information
PRODUCT INFORMATION USB POWER CORD 　　 LED INDICATOR LIGHT : The status of BTRC 1. Red light off : Power off 2. One flash of red light : The control signal of Air Conditioner. 3. Two flashes of red light : The control signal of home devices (except air conditioner).
Page 4: Installation
INSTALLATION Download "AIFA BTRC Download (EU)" APP from iTunes or GOOGLE PLAY. USB Connector 5V / 700mA Open the APP and press Download BTRC "YES" to turn on your APP and open it. Bluetooth.
Page 5 Press "Start Search" Input PIN password (0000) and select the device "AIFA BTRC". Switch between interfaces : TV > SAT > DVD > AUX > AC > LEARNING > TV...
Page 6: Interface
INTERFACE L : Enter LEARNING mode. Button Edit : Delete any learned buttons. Device Name : Slide to switch between different interfaces Main interface. Page Number. Setting : Brand code setting. It has different functions on LEARNING interface.
Page 7: Tv Interface - My Favorite
TV INTERFACE – MY FAVORITE Press the " FAV." button Input your favorite channel and then press any number and press "OK". button for 3 seconds to enter edit interface. Channel Now you can switch to your favorite channel only by one press. 2 3 6...
Page 8: Code Setting
CODE SETTING (FOR EXAMPLE : TV) 1. Turn off your TV. 　　 3. Press the "BRAND LIST" 2. Press the "SETTING" button. button to setup your brand. 4. keep pressing the column of alphabet on 5. Find your brand and right hand side to press it.
Page 9 6. Choose your code (if you know) or just try to press each code to test if the code is right. OPEN If the code is right, your TV will be turned on. Press "Confirm" to get back to code setting page.
Page 10: Code Auto Search
CODE AUTO SEARCH (FOR EXAMPLE : TV) 1. Turn off your TV. 3. Keep pressing the "SCAN" 　　 button on the upper right 2. Press the "SETTING" corner to start code auto- Button to setup searching and release the your brand. button until the message "Searching"...
Page 11 6. Try main functions on TV interface to see if they work or not. 5. Press the "RETURN" button back to TV If those buttons don’t work, interface which means the code is wrong, please repeat step 1 - 5 to find the right code.
Page 12: Learning Function
"OK" to enter learning, for example, the LEARNING mode. "POWER" button. Within 3mm Make your remote control head to the indicator of BTRC and press "POWER". If the learning succeeds, the "Power" button on the app will be framed in blue.
Page 13: Exit From Learning Function
EXIT FROM LEARNING FUNCTION Press "Return" or "Cancel " The "BULB" will disappear. to complete the learning mode and exit. DELETE LEARNED BUTTON Press the "TRASH CAN" Press the "Trash Can" button to delete any learned button on the upper right buttons.
Page 14: Learning Mode - Learning Function
LEARNING MODE – LEARNING FUNCTION 2. Press the "SETTING" 1. Slide to learning button on the lower right interface. corner and "OK" to enter ICON SETTING MODE. 4. Select suitable icon for 3. Press any button to your device function. locate icon.
Page 15 6. Press the "SETTING" 5. Repeat 1 - 4 to setup button and "OK" to exit your icon. ICON SETTING MODE. 8. The "BULB" will appear. 7. Press the "L" button Press any button to start and "OK" to enter learning, for example, the LEARNING mode.
Page 16 9. Make your remote control head to the Within 3mm indicator of BTRC and then press "POWER". If the learning succeeds, the "POWER" button on the app will be framed in blue. 11. Press "Return" or "Cancel " to complete the learning 10.
Page 17: Learning Mode -Delete Learned Button
LEARNING MODE –DELETE LEARNED BUTTON Press the button you want to delete, for example, the Press the "SETTING" "POWER" button and you'll button and "OK". enter ICON SETTING MODE. Press the blank button to delete. CAUTION : If you press the "TRASH CAN"...
Page 18 BTRC BTRC Smart Home Control Box Smart Home Control Box Manufacturer AIFA TECHNOLOGY CORP. ORIGIN ：Taiwan TELEPHONE ：+886–7–7777128 EMAIL ：aifa@aifa.com.tw ADDRESS ：NO.230, Sec. 2, Bade Rd., Fongshan Dist., Kaohsiung City 83053, Taiwan...
